Allen-Bradley Ultra3000 - Shunt Module Power Wiring Requirements

Publication 2098-IN003E-EN-P — April 2004
3-14 Connecting Your Ultra3000

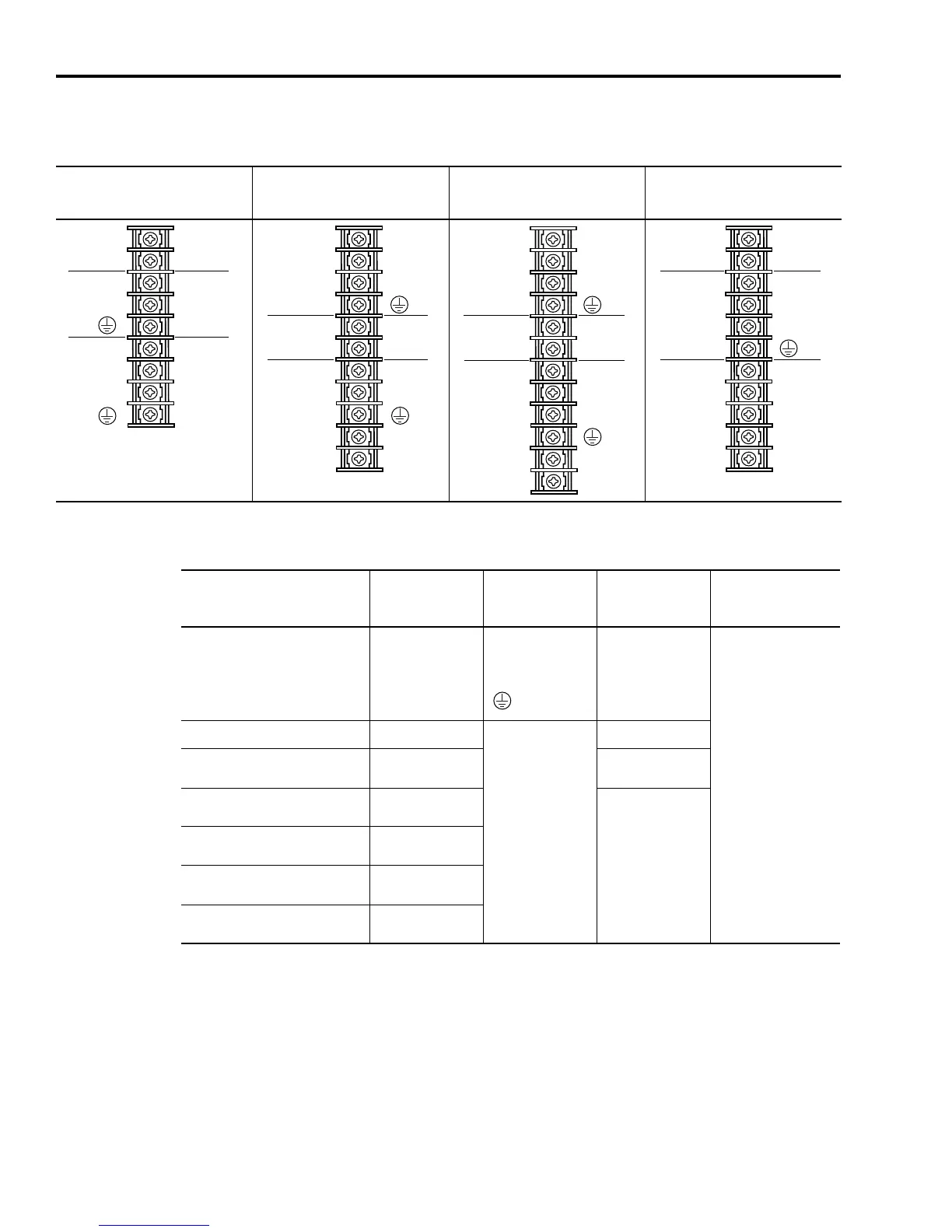

Figure 3.14
TB1 Terminal Positions
Shunt Module Power Wiring Requirements
1
75° C (167° F), 600V copper wire. Maximum length 3.05 m (10 ft).
2
105° C (221° F), 600V copper wire (preferred) 90° C (194° F) (minimum). Maximum length 3.05 m (10 ft).
Note: Refer to Figure 3.15 for TB2 terminal positions.
TB1 Terminal Positions
(2098-DSD-005x-xx, -010x-xx,
-020x-xx)
TB1 Terminal Positions
(2098-DSD-030x-xx)
TB1 Terminal Positions
(2098-DSD-075x-xx and
-150x-xx)
TB1 Terminal Positions
(2098-DSD-HVxxx-xx and
-HVxxxX-xx)
Motor Power
Connections
Input Power
Connections
Active Shunt
Connections
DC Bus+
DC Bus-
L1
L2/N
U
V
W
U
V
W
DC Bus+
DC Bus-
L1
L2/N
L1 AUX
L2/N AUX
AC Input
Power
Connections
Motor Power
Connections
U
V
W
DC Bus+
DC Bus-
L1
L2
L3
L1 AUX
L2/N AUX
Motor Power
Connections
AC Input
Power
Connections
DC Bus+
DC Bus-
W
V
U
L3
L2
L1
L1 AUX
L2/N AUX
Motor Power
Connections
AC Input
Power
Connections
Ultra3000 Drives
Shunt Module
Catalog Number
Connects to
Terminals
Recommended
Wire Size
mm
2
(AWG)
Terminal Block
Torque Values
Nm (lb-in.)
2098-DSD-005x-xx, -010x-xx, and
-020x-xx
2090-UCSR-A300
4.0 (12)
1
1.25 (11)
2098-DSD-030x-xx 9101-1183
TB2-1
TB2-2
TB2-3
2.5 (14)
1
2098-DSD-075x-xx and
2098-DSD-150x-xx
2090-UCSR-P900
10 (8)
1
2098-DSD-HV030-xx, -HV030X-xx
-DSD-HV050-xx, and -HV050X-xx
2090-SR120-09
6 (10)
2
2098-DSD-HV100-xx and
-HV100X-xx
2090-SR040-09 or
2090-SR040-18
2098-DSD-HV150-xx and
-HV150X-xx
2090-SR025-09 or
2090-SR025-18
2098-DSD-HV220-xx and
-HV220X-xx
2090-SR020-36
TB1-DC Bus+
TB1-DC Bus-
TB1-L1
TB1-L2/N
