4. Name and Functions of Each Section
4-1
4. Name and Functions of Each Section
(1) Front

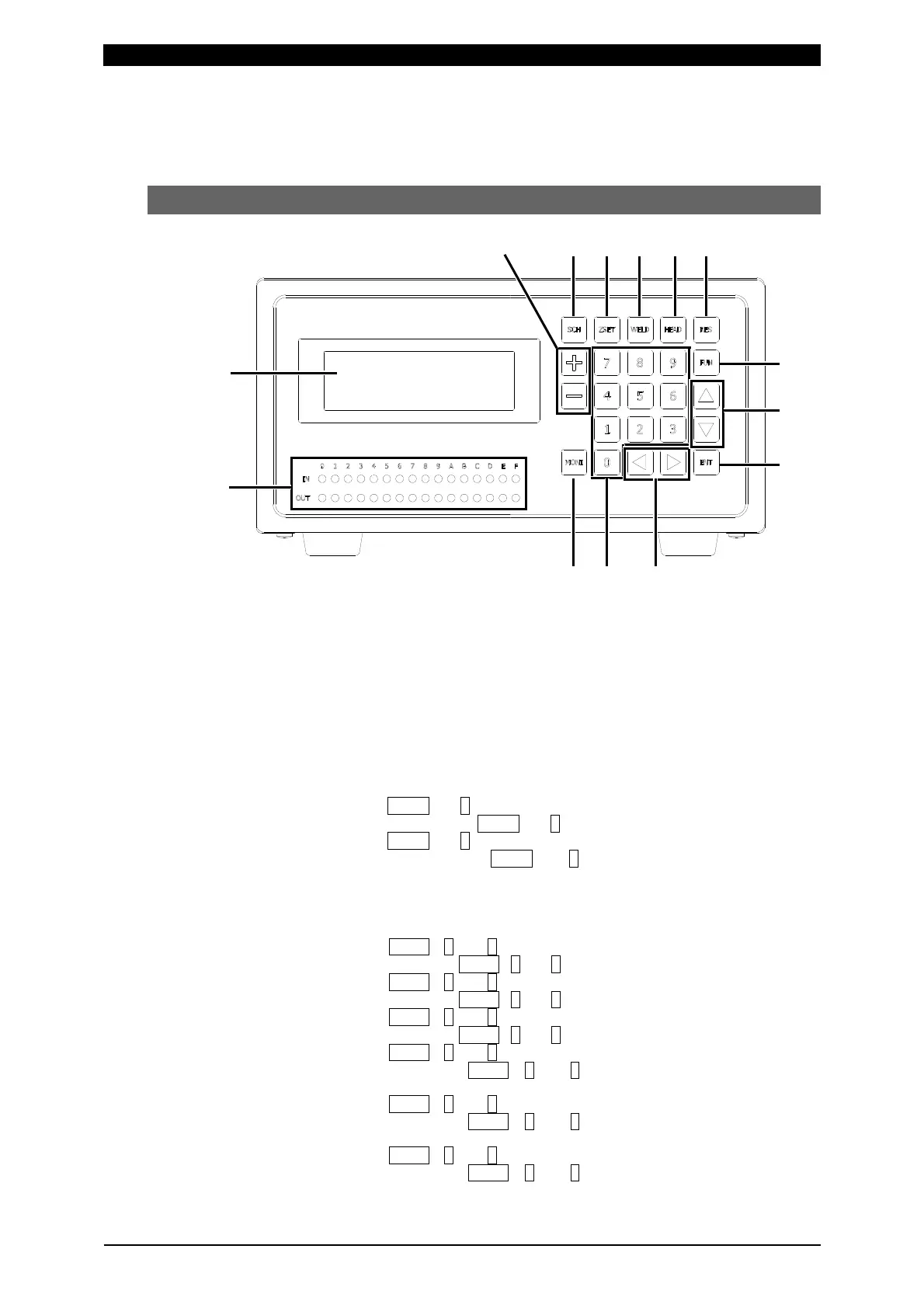

1LCD: Displays the measured values and menus.
2IN/OUT lamps: Displays input/output status of interface.
3SCH key: Sets the schedule.
4ZSET key: Does the zero setting of the sensor and the load cell on the manual
screen. For a load cell, do the zero setting with no pressure applied.
5WELD key: Outputs the WELD START signal. Use when outputting the WELD
START signal during off-sequence periods.
Press WELD and 1 keys in this order to turn ON the WELD START1 output.
To turn it OFF, press WELD and 1 keys again.
Press WELD and 2 keys in this order to turn ON the WELD START2 output.
To turn it OFF, press WELD and 2 keys again. (valid when there is the
second-axis I/O board)
6HEAD key: Outputs the HEAD signal. Use when lowering the welding head
during off-sequence periods.
Press HEAD , 1 and 1 keys in this order to turn ON the SV11 output. To
turn it OFF, press HEAD , 1 and 1 keys again.
Press HEAD , 1 and 2 keys in this order to turn ON the SV12 output. To
turn it OFF, press HEAD , 1 and 2 keys again.
Press HEAD , 1 and 3 keys in this order to turn ON the SV13 output. To
turn it OFF, press HEAD , 1 and 3 keys again.
Press HEAD , 2 and 1 keys in this order to turn ON the SV21 output. To
turn it OFF, press HEAD , 2 and 1 keys again. (valid when there is the
second-axis I/O board)
Press HEAD , 2 and 2 keys in this order to turn ON the SV22 output. To
turn it OFF, press HEAD , 2 and 2 keys again. (valid when there is the
second-axis I/O board)
Press HEAD , 2 and 3 keys in this order to turn ON the SV23 output. To
turn it OFF, press HEAD , 2 and 3 keys again. (valid when there is the
second-axis I/O board)
