MU-100A
10. Setting of Measurement Mode and Schedule
10-5
(3) Sample Hold 1 Mode “Disp Measure Mode : SH1(2)”
This is the mode for measuring displacement. The workpiece thickness can be
measured and judged at the input of “ST-DISP1” or “ST-DISP2” (second axis).
(The workpiece thickness can be measured and checked at a given point in time.)
a. Setting of measurement mode
1
Press FUN, 0 and ENT keys in this order to select “0=Setup”.
2Select the setting object between “Axis1(0)” (first axis) and “Axis2(1)” (second
axis).
3Set No.3 “Disp Measure Mode” (measurement mode of displacement sensor) to
“SH1(2)” (sample hold 1 mode).
4When not using the load cell, set No.8 “Force Measure Mode” (measurement
mode of load cell) to “OFF(4)” (load cell off mode).
b. Setting of measurement schedule
1
Press MONI key to display the normal screen.
2Press SCH key to select “SCH Axis”.
3Select the setting object between “Axis1(0)” (first axis) and “Axis2(1)” (second
axis) to set the schedule number.
4Set the monitoring level according to your use conditions.
Monitoring of the before-welding workpiece thickness
No.4 “Before Weld Work LO” (before-welding workpiece thickness lower limit)
No.5 “Before Weld Work UP” (before-welding workpiece thickness upper limit)
c. Measurement
1
Press MONI key to display the normal screen.
2Set the schedule by selecting schedule switching signals “SCH1”, “SCH2”,
“SCH4”, “SCH8”, “SCH16”, “SCH32”, and “SCH64” or via the panel.
3Input “ST-DISP1” or “ST-DISP2” (second axis) to make a measurement.

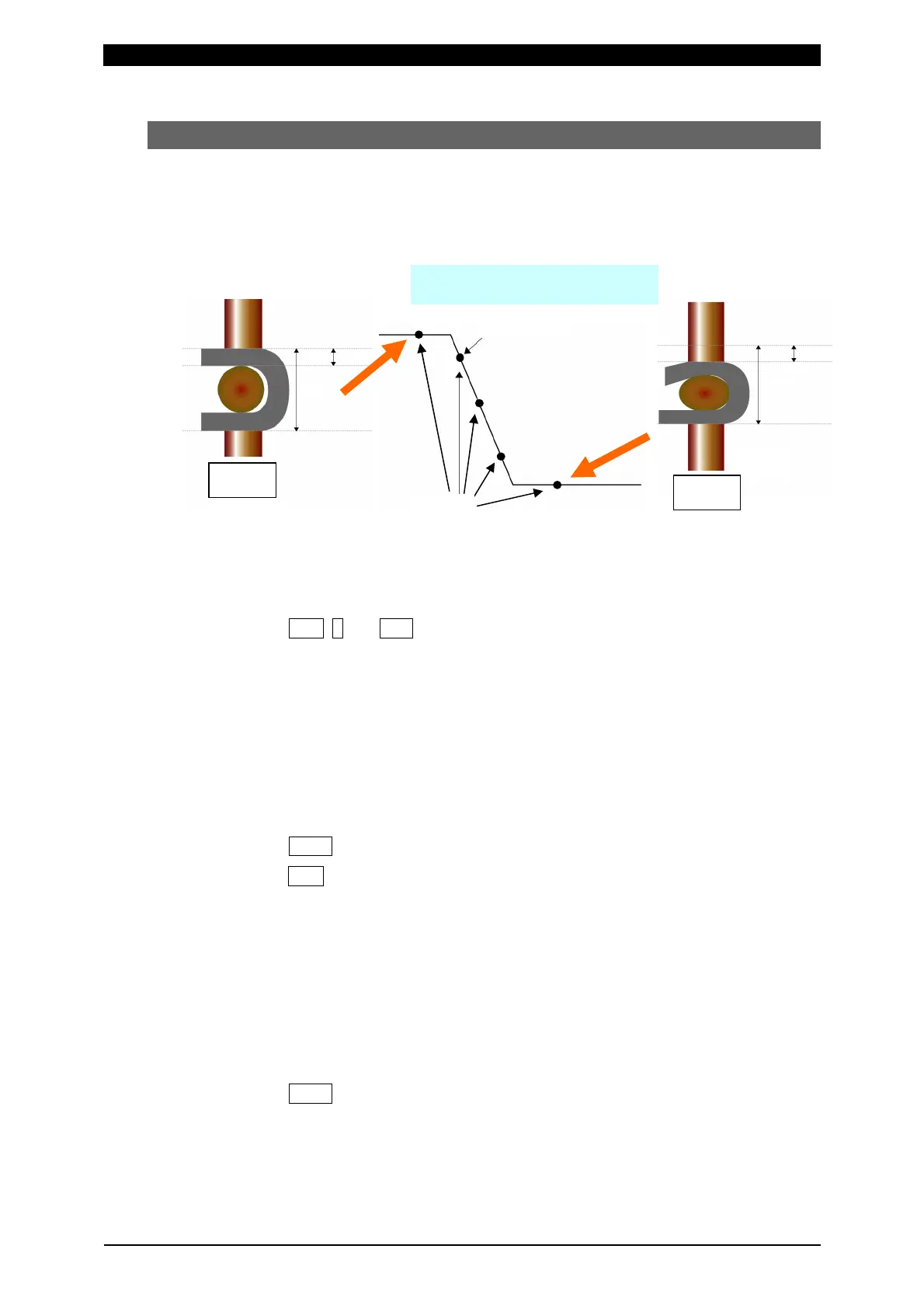

WORK value
ST-DISP
Monitor judgment with upper/lower
limit value of Before Weld Work only
Can be measured
at any given point.
WELD
value
WORK
value
WELD
value
WORK
value
Before
welding
After
welding
