Amada MU-100A - Sequence Mode Disp Measure Mode: SQNC(1)

MU-100A

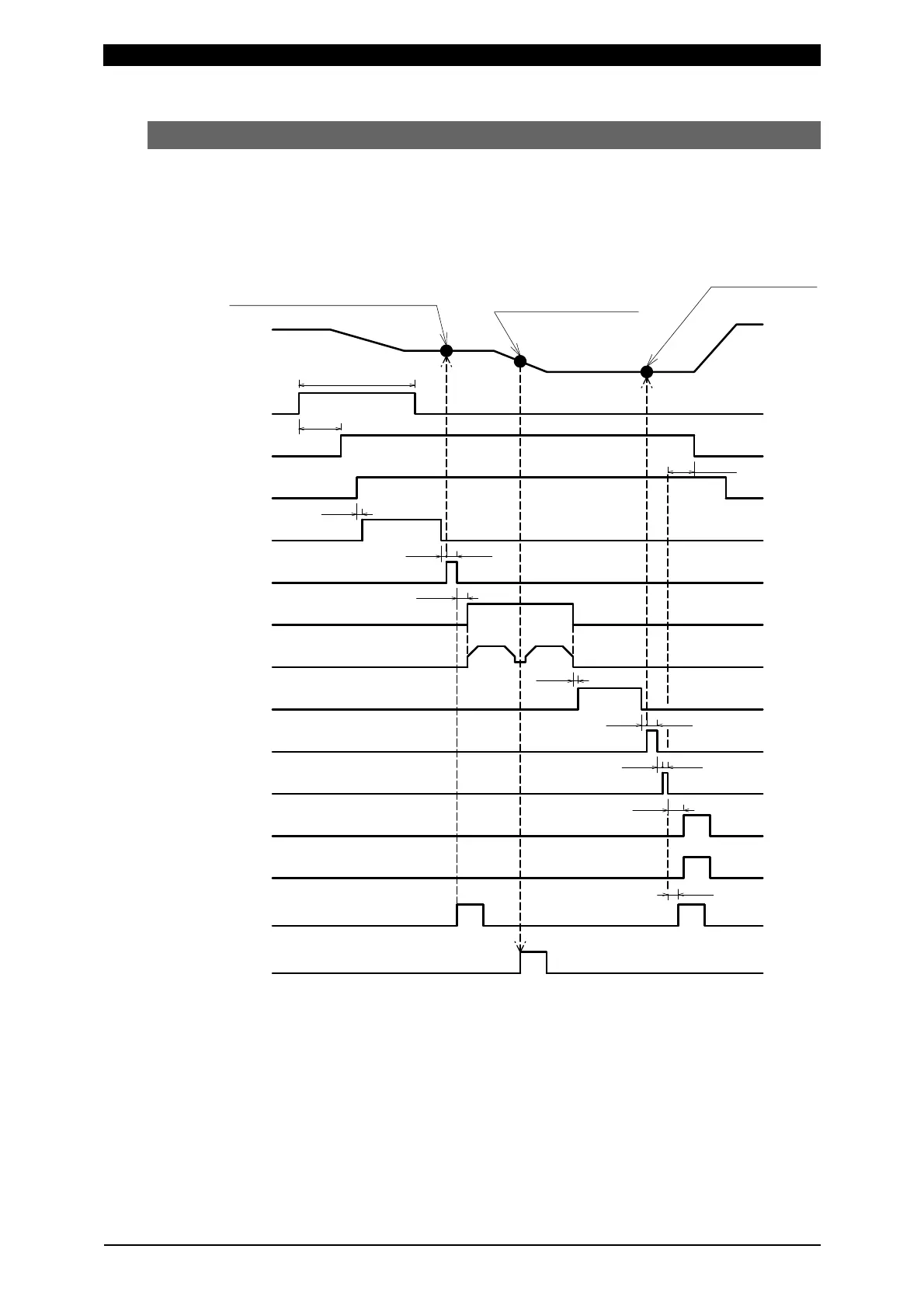

11. Timing Chart (1-axis Type)
11-5
(2) Sequence Mode “Disp Measure Mode : SQNC(1)”
When 0=Setup parameter of the function menu is set as follows:
1 Disp Measure Mode setting: SQNC(1)
2 LS Input Validity setting: Valid(0)
3 Self Hold Validity setting: Valid(0)
13ms
2ms
2ms
1ms1ms
3ms
2ms
2ms
5ms
1ms
1ms
1ms
1ms
20ms min.
Displacement measurement
After Weld Work measurement
Before Weld Work measurement
Hold-Time(setting)
Weld-Time(setting)
Squeeze-Time(setting)
SV11 to 13 output
(Weld Start output)
LS1 input
ST-DISP1 input
GOOD output(*3)
FINISH output(*3)
NG output(*3)
LEV-DISP11 to 13 output(*5)
(*4)
(*1)
(*2)
Displacement change
Welding(power supply)
Before Weld Work measurement position
LEV-DISP1set displacement
After Weld Work
measurement position
*1 When Self Hold Validity is set to Invalid(1), hold the ST-DISP input until the
vibration check ends.
*2 Set the time longer than the total weld time of welding machine for Weld-Time.
*3 The output time can be selected with Output Select Time.
*4 When NG is output, the sequence ends.
*5 The output time can be selected with Level Select Time.
