MU-100A

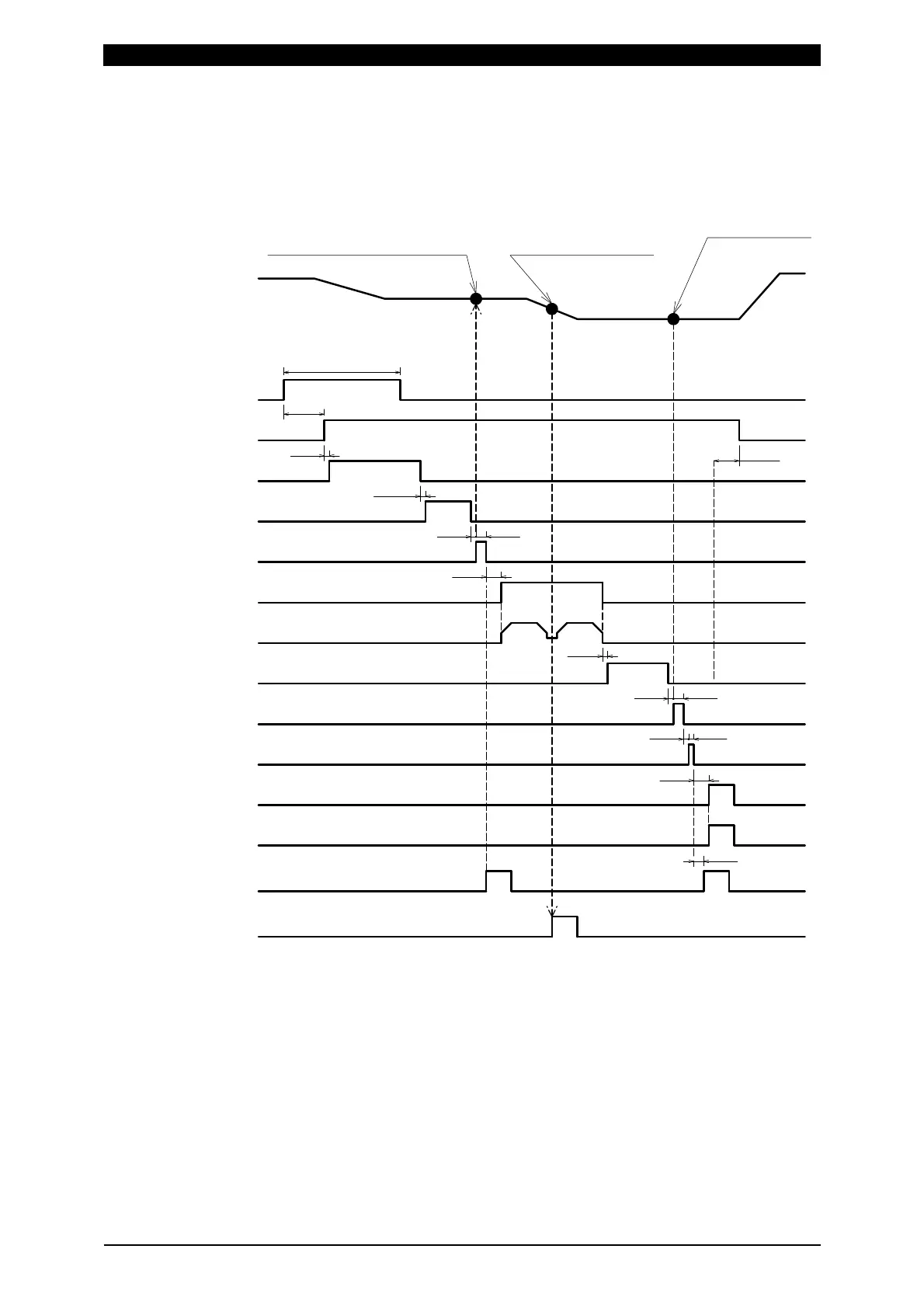

11. Timing Chart (1-axis Type)
11-6
When 0=Setup parameter of the function menu is set as follows:
1 Disp Measure Mode setting: SQNC(1)
2 LS Input Validity setting: Invalid(1)
3 Self Hold Validity setting: Valid(0)
13ms
2ms
2ms
1ms1ms
3ms
2ms
3ms
5ms
1ms
1ms
1ms
1ms
1ms
(*5)
(*1)
(*2)
(*3)
ST-DISP1 input
GOOD output(*4)
FINISH output(*4)
NG output(*4)
(Weld Start output)
Hold-Time(setting)
Weld-Time(setting)
Squeeze-Time(setting)
Before Weld Work measurement position
Before Weld Work*
SV11 to 13 output
LEV-DISP11 to 13 output(*6)
After Weld Work measurement
Displacement measurement
Welding(power supply)
Vibration check
Displacement change
20ms min.
LEV-DISP1 set displacement
After Weld Work
measurement position
*1 When Self Hold Validity is set to Invalid(1), hold the ST-DISP input until the
vibration check ends.
*2 Varies depending on the allowable vibration range setting and vibration stability
time.
*3 Set the time longer than the total weld time of welding machine for Weld-Time.
*4 The output time can be selected with Output Select Time.
*5 When NG is output, the sequence ends.
*6 The output time can be selected with Level Select Time.
