4. Name and Functions of Each Section
4-3

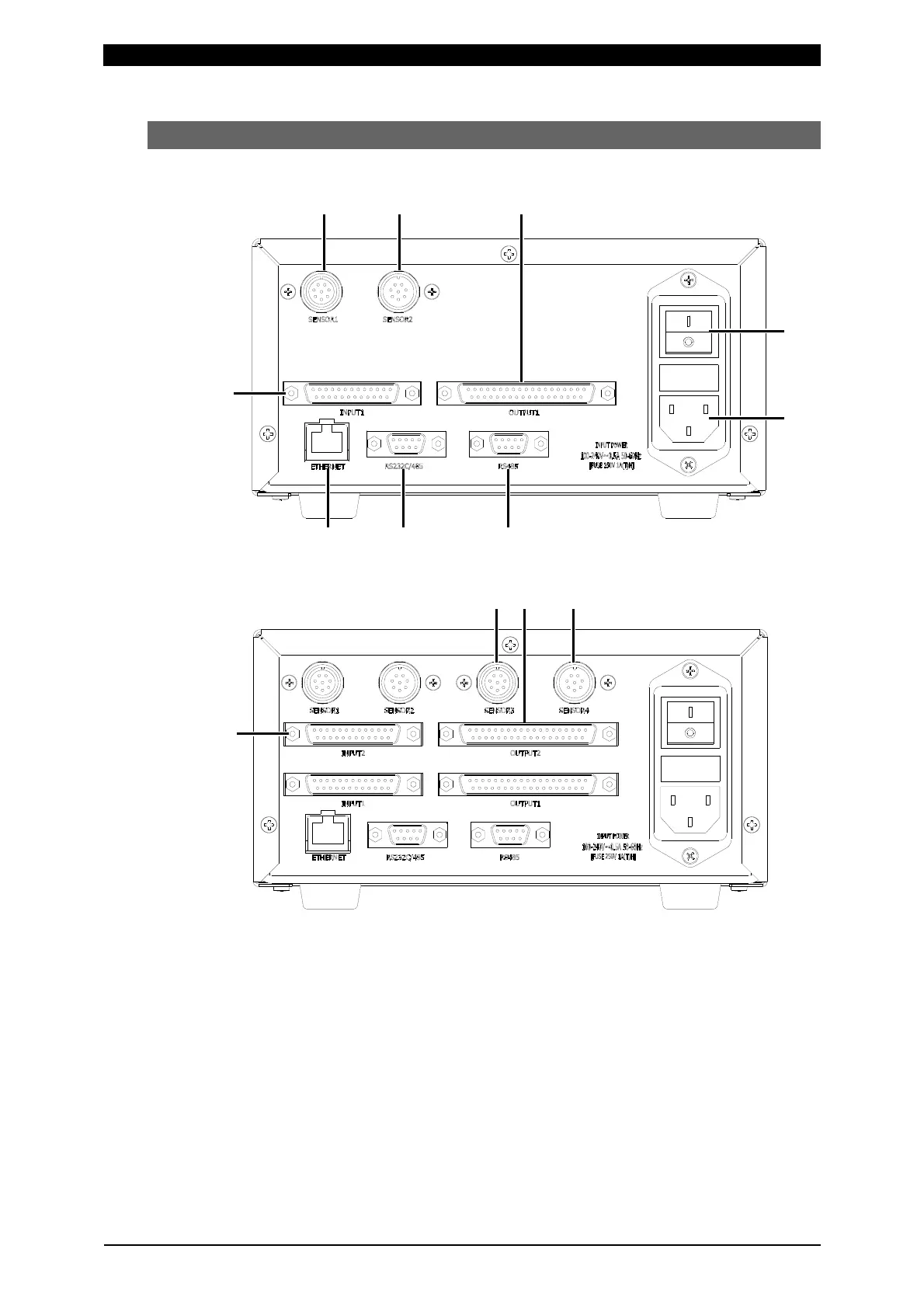

(2) Rear
1-axis type
2-axis type
1SENSOR1 connector: Connects the displacement sensor 1. When connecting the
displacement sensor, use the dedicated adapter or extension
cable.
2SENSOR2 connector: Connects the load cell 1. When connecting the load cell, use
the dedicated extension cable or connector.
3INPUT1 connector: Connects the input signals of SENSOR1 and 2.
4OUTPUT1 connector: Connects the output signals of SENSOR1 and 2.
5POWER switch: Main power switch.
6AC inlet: Connects the power cable.
7ETHERNET connector: Connects the Ethernet.
