Amada MU-100A - Sample Hold 1 Mode Force Measure Mode: SH1(1)

MU-100A
10. Setting of Measurement Mode and Schedule
10-12
(7) Sample Hold 1 Mode “Force Measure Mode :
SH1(1)”
This is the mode for measuring force. The force can be measured and judged at the
input of “ST-FORCE1” or “ST-FORCE2” (second axis).
(The weld force can be measured at a given point in time.)
a. Setting of measurement mode
1
Press FUN, 0 and ENT keys in this order to select “0=Setup”.
2Select the setting object between “Axis1(0)” (first axis) and “Axis2(1)” (second
axis).
3Set No.3 “Disp Measure Mode” (measurement mode of displacement sensor) to
an item other than “SYNC(0)” (synchro mode); “SQNC(1)” (sequence mode),
“SH1(2)”, “SH2(3)”, or “SH3(4)” (sample hold mode).
4Set the rated capacity of the connected load cell in No.4 “L.C. Rated Capacity”.
The rated capacity of the load cell is shown on the certificate of the load cell.
5Select the force unit from “N(0)”, “kgf(1)”, and “lbf(2)” in No.5 “Loadcell Unit”.
6Set the rated output of the connected load cell in No.6 “L.C. Rated Output”. The
rated output of the load cell is shown on the certificate of the load cell.
7Set No.8 “Force Measure Mode” (measurement mode of load cell) to “SH1(1)”
(sample hold 1 mode).
b. Setting of measurement schedule
1
Press MONI key to display the normal screen.
2Press SCH key to select “SCH Axis”.
3Select the setting object between “Axis1(0)” (first axis) and “Axis2(1)” (second
axis) to set the schedule number.
4Set the monitoring level according to your use conditions.

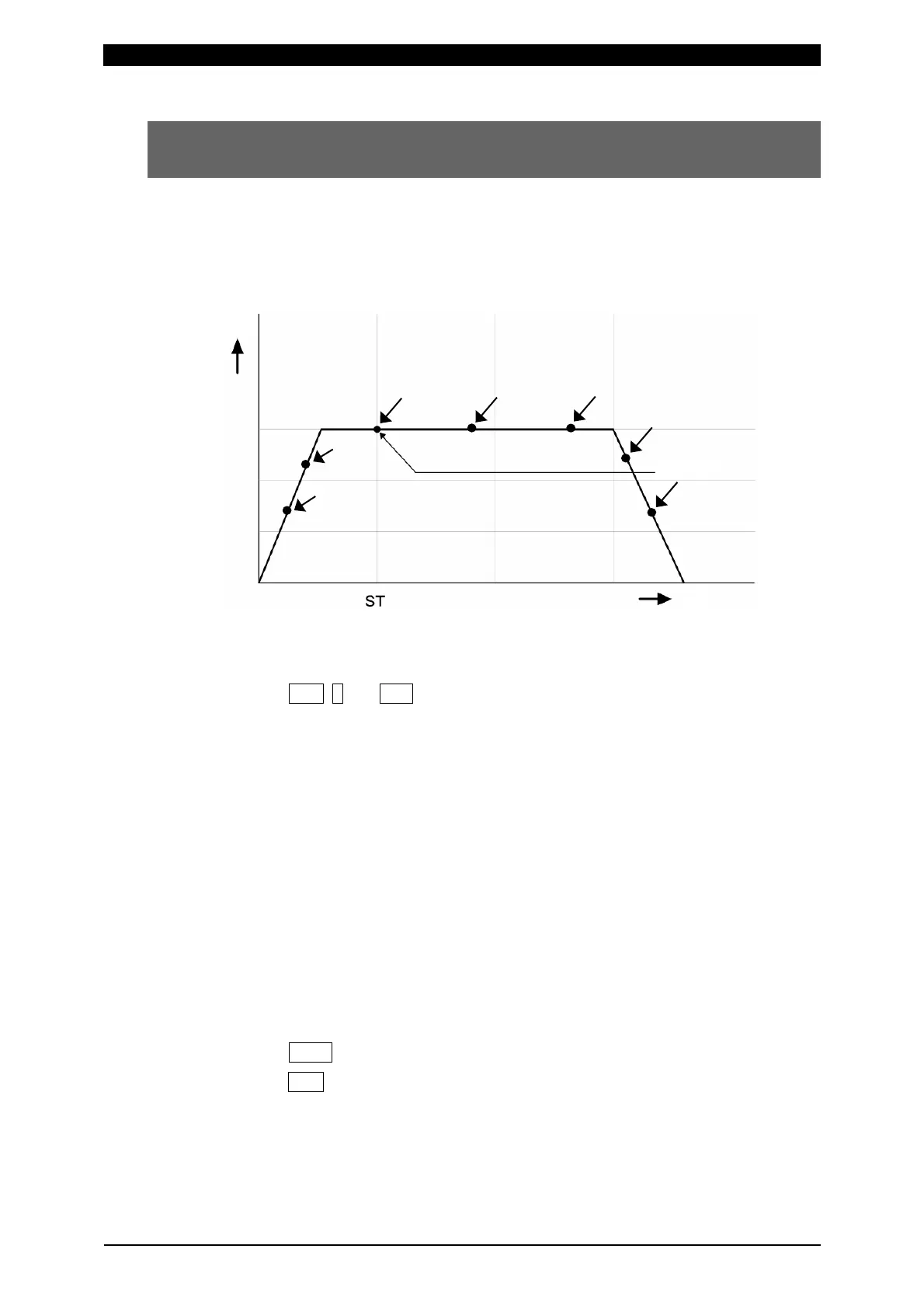

Can be measured
at any given point.
ST
ST
ST
ST
ST
ST
ST
Time
Force
measurement
Force
