MU-100A

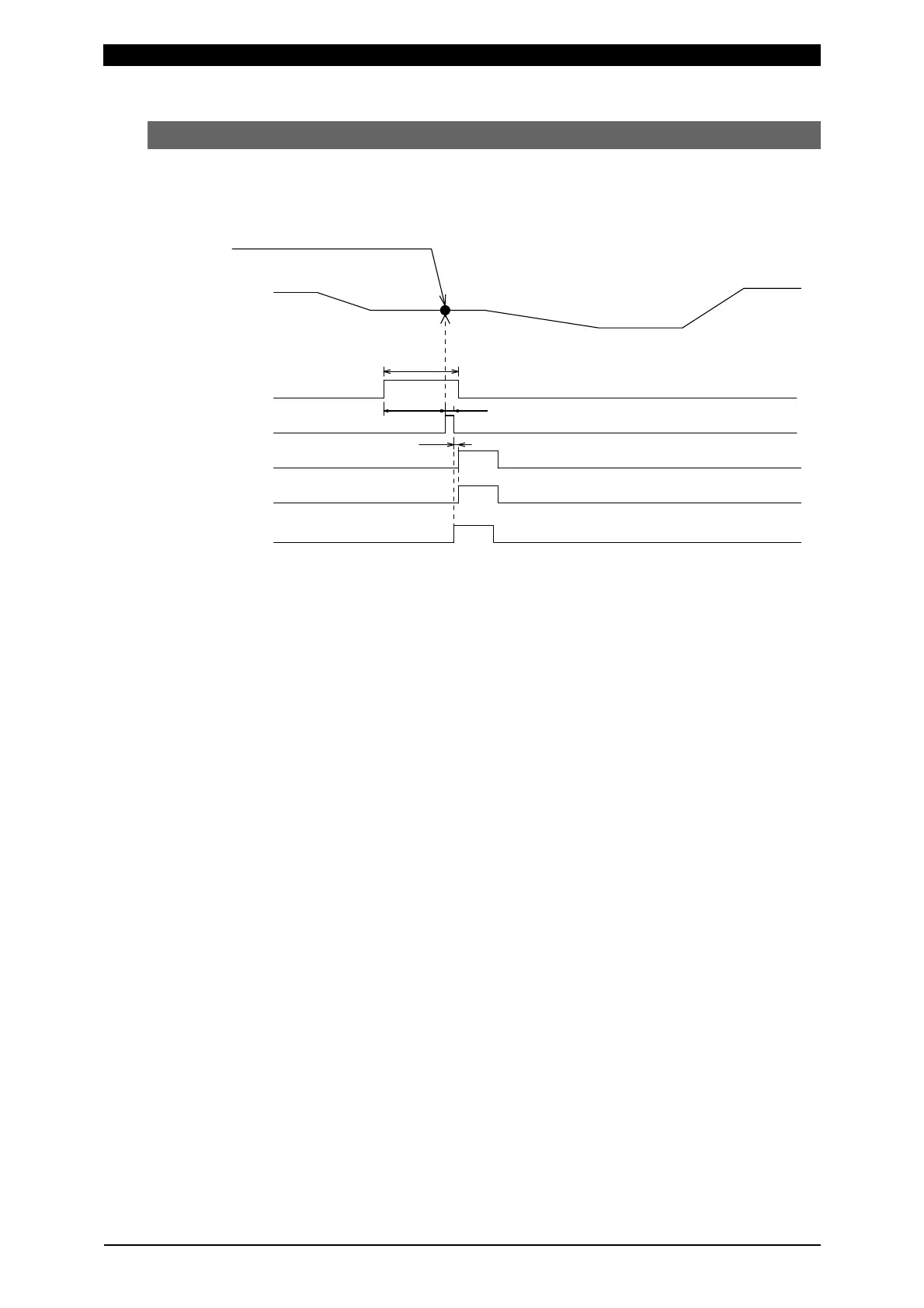

11. Timing Chart (1-axis Type)
11-7
(3) Sample Hold 1 Mode “Disp Measure Mode : SH1(2)”
When 0=Setup parameter of the function menu is set as follows:
1 Disp Measure Mode setting: SH1(2)
20ms min.
2ms
GOOD output(*1)
FINISH output(*1)
NG output(*1)
Before Weld Work measurement position
Before Weld Work measurement
ST-DISP1 input
Displacement change
2ms15ms
*1 The output time can be selected with Output Select Time.
