Amada MU-100A - Sample Hold 3 Mode Disp Measure Mode: SH3(4)

MU-100A
11. Timing Chart (1-axis Type)
11-9

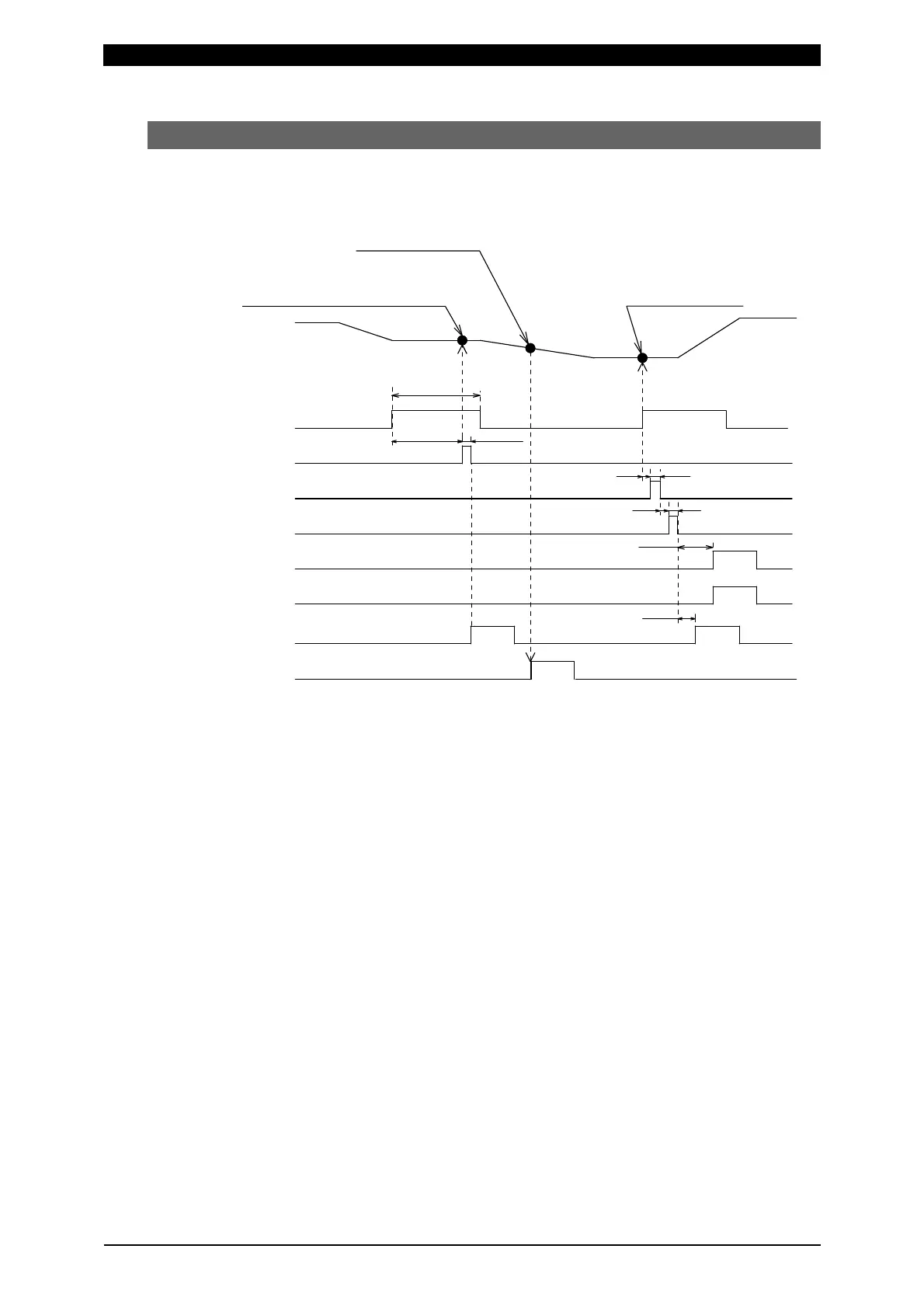

(5) Sample Hold 3 Mode “Disp Measure Mode : SH3(4)”
When 0=Setup parameter of the function menu is set as follows:
1 Disp Measure Mode setting: SH3(4)
3ms
2ms
1ms
15ms 1ms
1ms 2ms
1ms
(*3)
20ms min.
LEV-DISP1 set displacement
After Weld Work
measurement position
GOOD output(*1)
FINISH output(*1)
NG output(*1)
After Weld Work measurement
Displacement measurement
Displacement change
Before Weld Work measurement
ST-DISP1 input
LEV-DISP11 to 13 output (*2)
Before Weld Work measurement position
1st
2nd
*1 The output time can be selected with Output Select Time.
*2 The output time can be selected with Level Select Time.
*3 When NG is output, the sequence ends.
