MU-100A

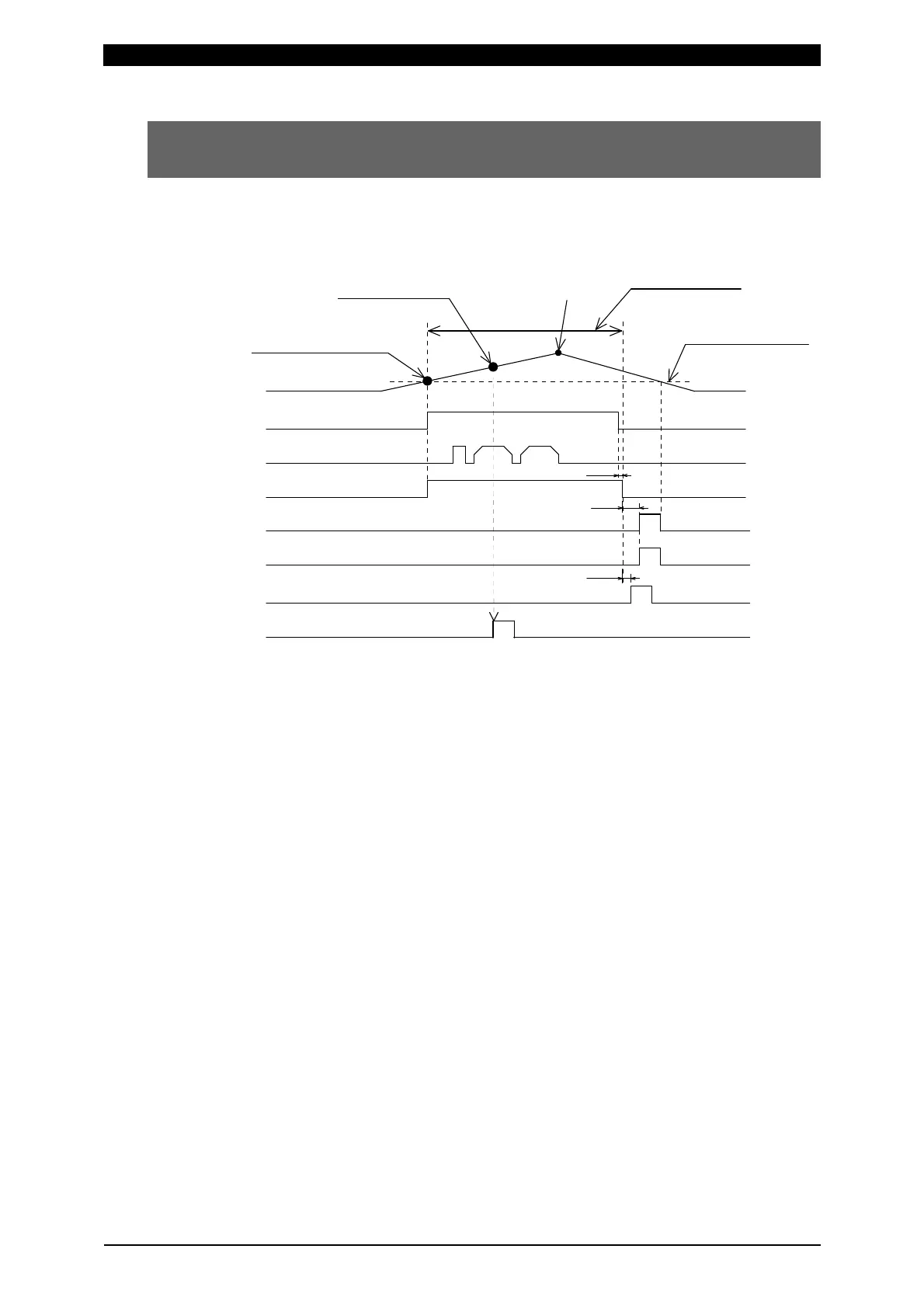

11. Timing Chart (1-axis Type)
11-13
(8) Sample Hold 1 Mode “Force Measure Mode :
SH2(2)”
When 0=Setup parameter of the function menu is set as follows:
1 Force Measure Mode setting: SH2(2)
(*2)
2ms
3ms
3ms
(Measures the highest output point.)
(*1)
Highest output point
GOOD output(*3)
FINISH output(*3)
NG output(*3)
After Weld Force measurement
Welding(power supply)
LEV-FORCE11 to 13 output
Weld-Time(setting)
(Weld start output)
Force change
Tangential Force set force
LEV-FORCE1 set force
3ms
(*4)
After Weld Force
measurement position
Make sure that this
is below the set force.
*1 When After Weld Time measurement time exceeds Weld-Time depending on
settings of Force Sampling and Force Average, “-----” is displayed.
*2 Set the time longer than the total weld time of welding machine for Weld-Time.
*3 The output time can be selected with Output Select Time.
*4 The output time can be selected with Level Select Time.
*5 Since the Weld Start is output when the sequence reaches the Tangential Force
setting in this mode, simultaneous start is not performed in 2-axis type.
