APPENDIX B: ELECTRICAL AND DATA CONNECTORS
UB25 LINEAR DC RESISTANCE WELDING CONTROL
B-6 990-665

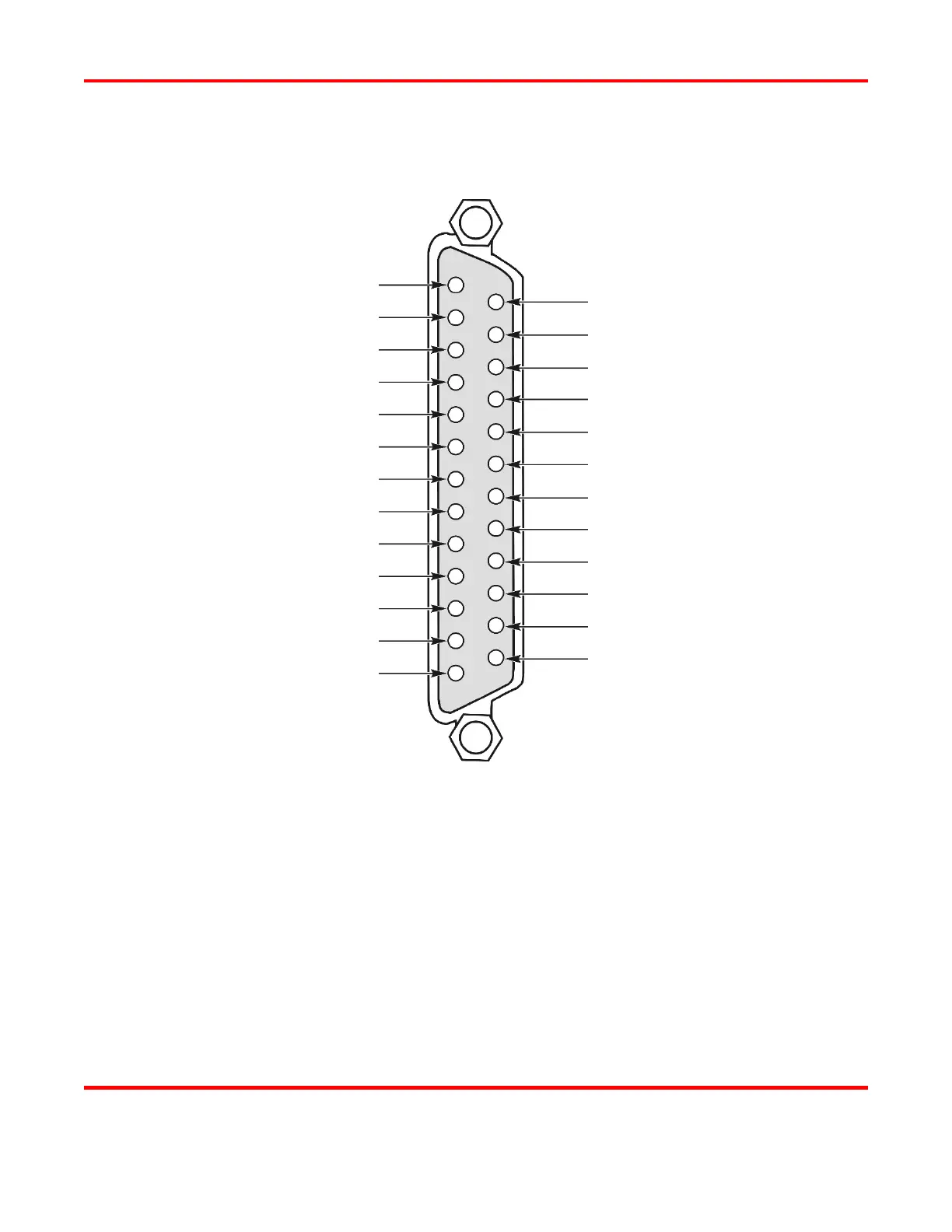

I/O Signal Interface B
Specification Table on next page.
PIN #1 -- ISCH0
PIN #2 -- ISCH1
PIN #3 -- ISCH2
PIN #4 -- ISCH3
PIN #5 -- ISCH4
PIN #6 -- ISCH5
PIN #7 -- ISCH6
PIN #8 -- INHIBIT
PIN #9 -- ISTOP
PIN #10 -- IFIRE
PIN #11 -- 24VOUT
PIN #12 -- FPOWER
PIN #13 -- 24VGND
PIN #14 -- NOT USED
PIN #15 -- NOT USED
PIN #16 -- NOT USED
PIN #17 -- NOT USED
PIN #18 -- NOT USED
PIN #19 -- NOT USED
PIN #20 -- NOT USED
PIN #21 -- NOT USED
PIN #22 -- NOT USED
PIN #23 -- IFOOT1
PIN #24 -- IFOOT2
PIN #25 -- CGND
