Section V. Programming For Active Part Conditioning
Before you program for Active Part Conditioning, make sure you are familiar with these procedures
described in this manual:
• Chapter 3, Using UB25 Welding And Monitoring Functions
• Chapter 4, Section III, Programming Weld Schedules
• Chapter 4, Section IV, Programming The Weld Monitor
1
Press the SCHEDULE button, then select a Weld Schedule using either the ▲▼
arrows or the numeric keypad.
2
Program a single pulse for Constant Power operation. Program the power level and weld time
to cause slight sticking between the two parts. Make a few welds and pull them apart. Increase
or decrease the power setting until a light tack weld is achieved.
4
Push the ENERGY button to monitor the waveforms for voltage, resistance, current,
and power.
5
Push the voltage V key and observe the high peak of the voltage waveform.
5
Push the Ω MONITOR (resistance) key and observe the resistance waveform. This should
appear to begin high, then start to drop as a tack weld is made and oxides are removed.
5
Push the current kA (current) key and observe the current waveform starting to rise as the
oxidization breaks down. If the current waveform starts to flatten, this is an indication
that the resistance has stabilized and the parts have come into closer contact.
6
Push RUN and optimize the energy and time setting of Pulse 1 (constant power) to
provide an adequate tack weld and also a current waveform (view in the monitor screen)
that has started to flatten out, but is still rising. This indicates that a full melt has not y
et
occurred.
7

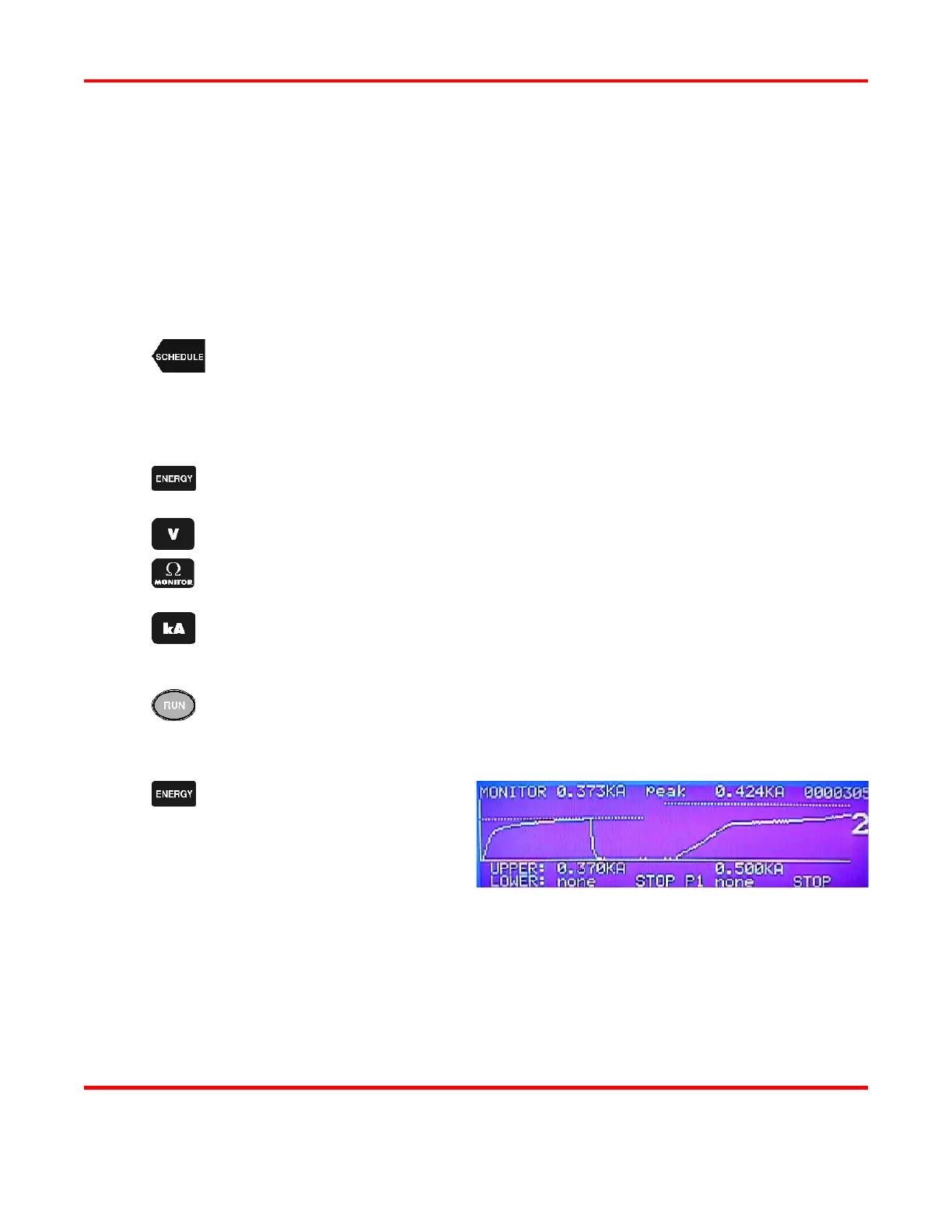

Push the ENERGY button to
switch to MONITOR mode.
Program an upper current limit
on the MONITOR screen.
NOTE: You can toggle between
peak and average readings by
pressing the PEAK/AVERAGE
button.
