CHAPTER 2: GETTING STARTED
UB25 LINEAR DC RESISTANCE WELDING CONTROL
990-665 2-5
Voltage Sensing Cable Installation

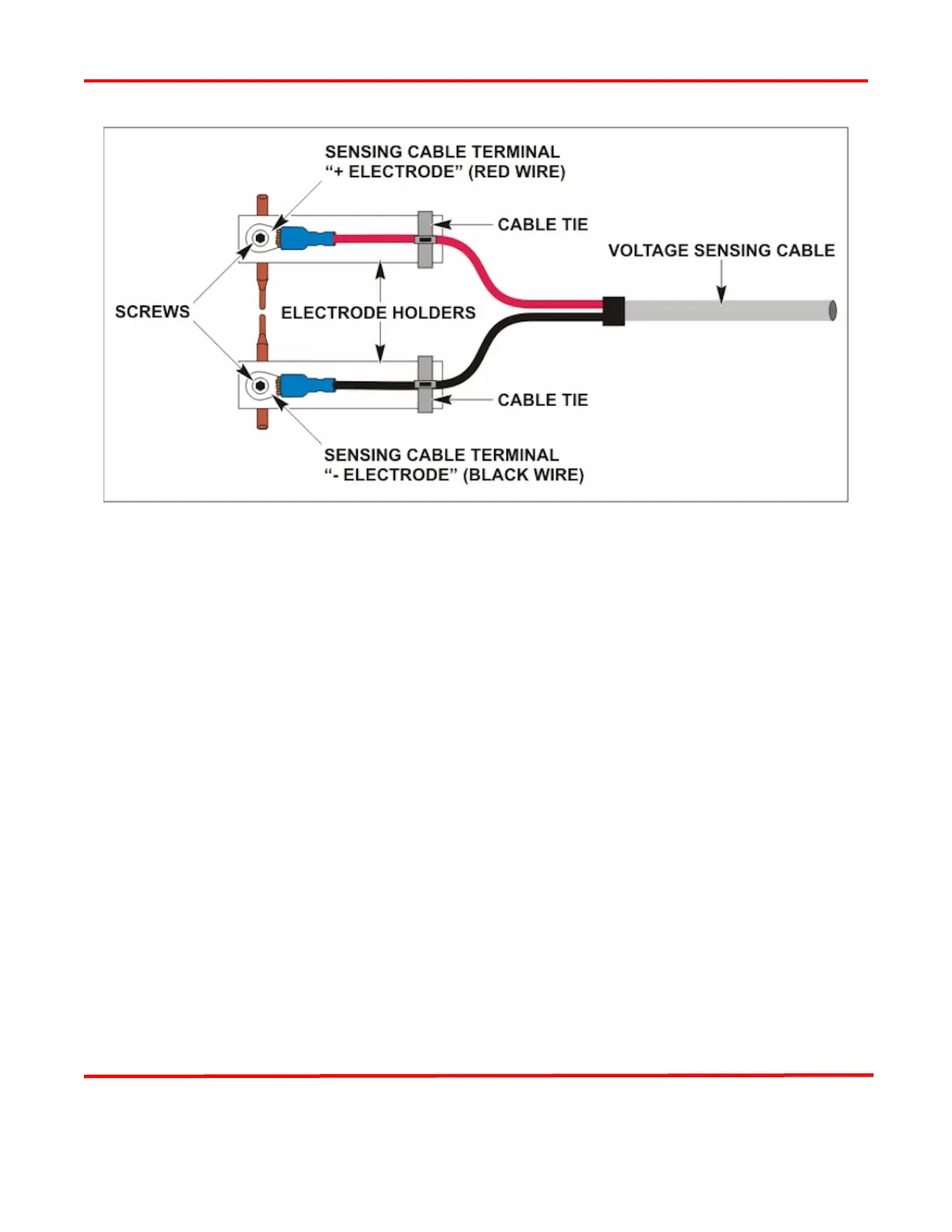

8 Using a cable tie as a strain relieve, attach each voltage sensing lead to its corresponding electrode
holder so that the lead terminals will not break away under heavy production operating
conditions.
9 Connect the Firing Switch cable connector from the Power Supply to the firing switch cable
connector from the weld head.
