3-14 | Model 933S UV
Analyzer
See Appendix A for a North American style drawing (or F
inal “
As-
Built” drawings, if order
ed, in the analyzer Documentation P
ack
age).
NOTE

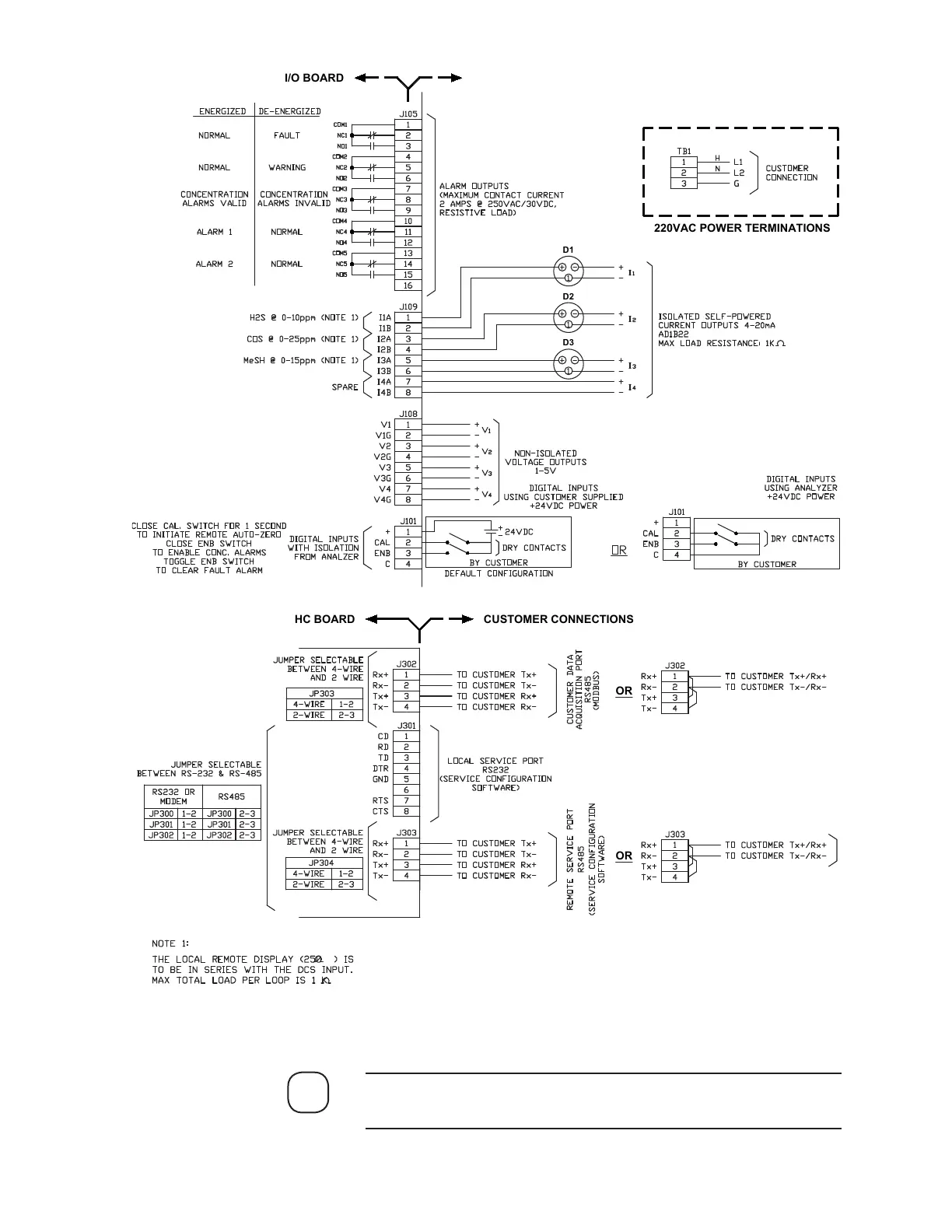

Figure 3-4.
Customer Connections wiring
schematic (European)
.
CUSTOMER CONNECTIONS
I/O BOARD
220VAC POWER TERMINATIONS
CUSTOMER CONNECTIONS
HC BOARD
OR
OR
D1
D2
D3
59
61
