Installation and Start-Up | 3-15
Remote Service Port/Local Service Port Congurations
Set these jumpers to
To congure the analyzer for: these positions:
JP300 = 1-2
Local Service Port RS-232 or Modem JP301 = 1-2
JP302 = 1-2
JP300 = 2-3
Remote Service Port RS-485 JP301 = 2-3
(* See Note.) JP302 = 2-3
*Note: Requires additional conguration, discussed under “Remote
Service Port RS-485, Full/Half Duplex” congurations.

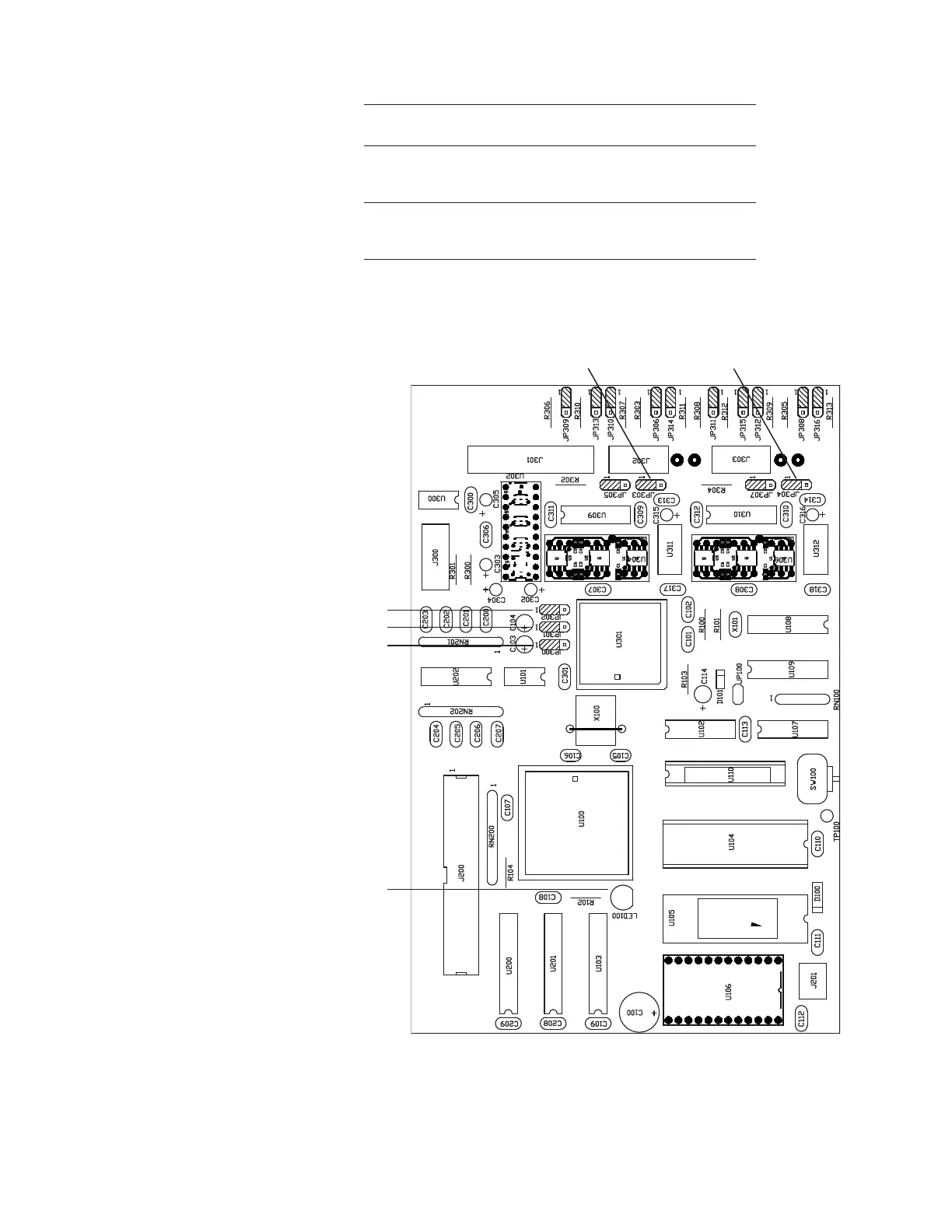

Figure 3-5.
Host Controller board
(P/N 100-1757).
Green Status LED100
JP300
JP301
JP302
JP303 JP304
