3-42 | Model 933S UV Analyzer
Verify the Column Switching Interval is properly adjusted:
1. From the Status tab, click to uncheck the Conc. Alarm Soft Enable On/
Off button to temporarily Disable the Concentration Alarms.

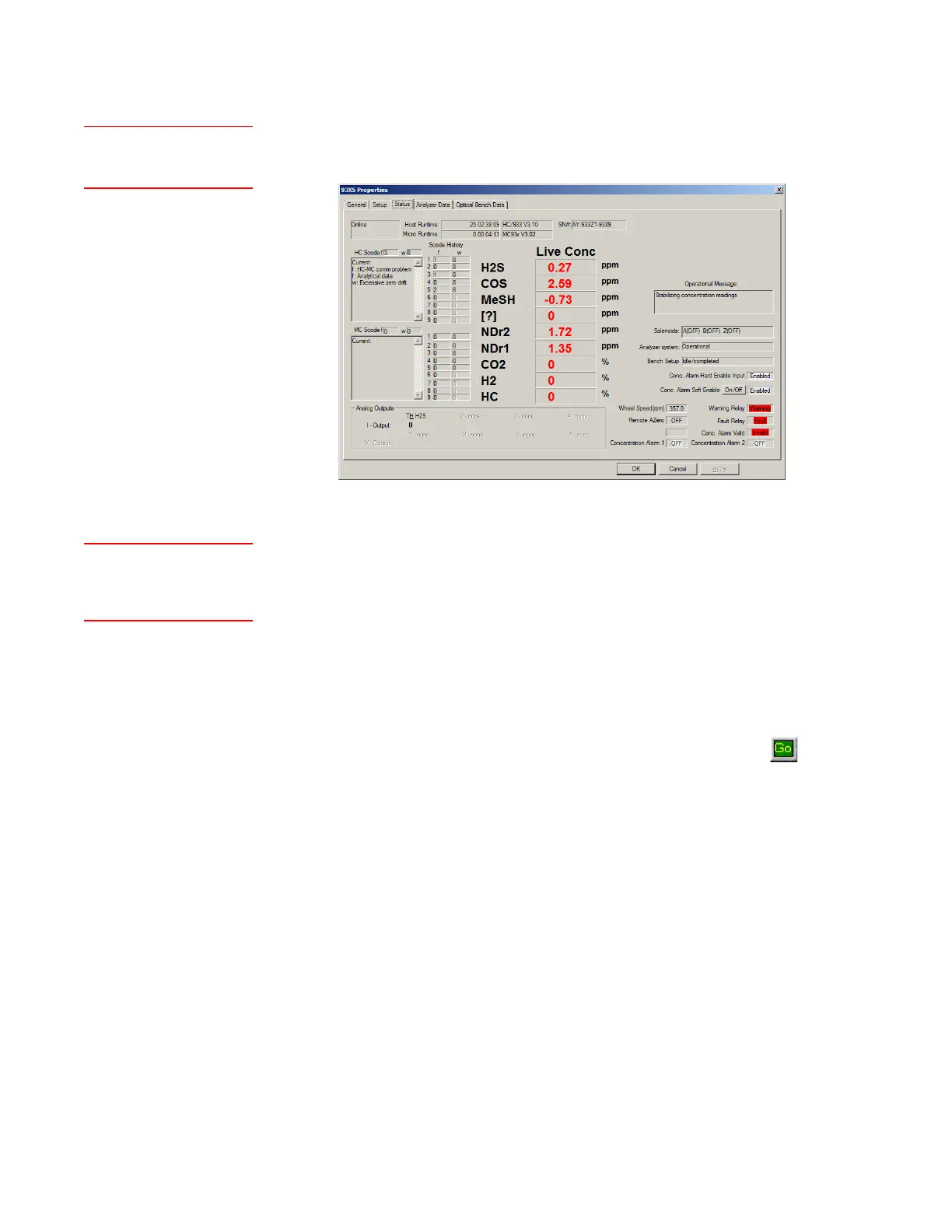

Figure 3-21.
Status tab, 93XS
Properties window.
Setup (tab)
Output<<Alarm Disable>>
Setup (tab)
Gas Calibration<<Flow
Control>>
2. From the Gas Calibration dialog box (Figure 3-20), verify the Flow
Control setting is is ‘0’ (auto). If not, enter ‘0’ (auto) in the Flow
Control text field, click OK then Apply. Do not save the changes to
EEPROM.
3. Close the 93XS Properties window by clicking OK or Cancel. From
the File menu click Open Configuration. Navigate to the S93xs folder
and select the “ColumnSetup.dyc” file, and click Open. A graph will
appear that displays the concentration signals as a function of time.
From the AMETEK Configurator - 93XS main window, click (on
the Standard Toolbar) to start data scanning (see Figure 3-22).
