OPERATION MANUAL

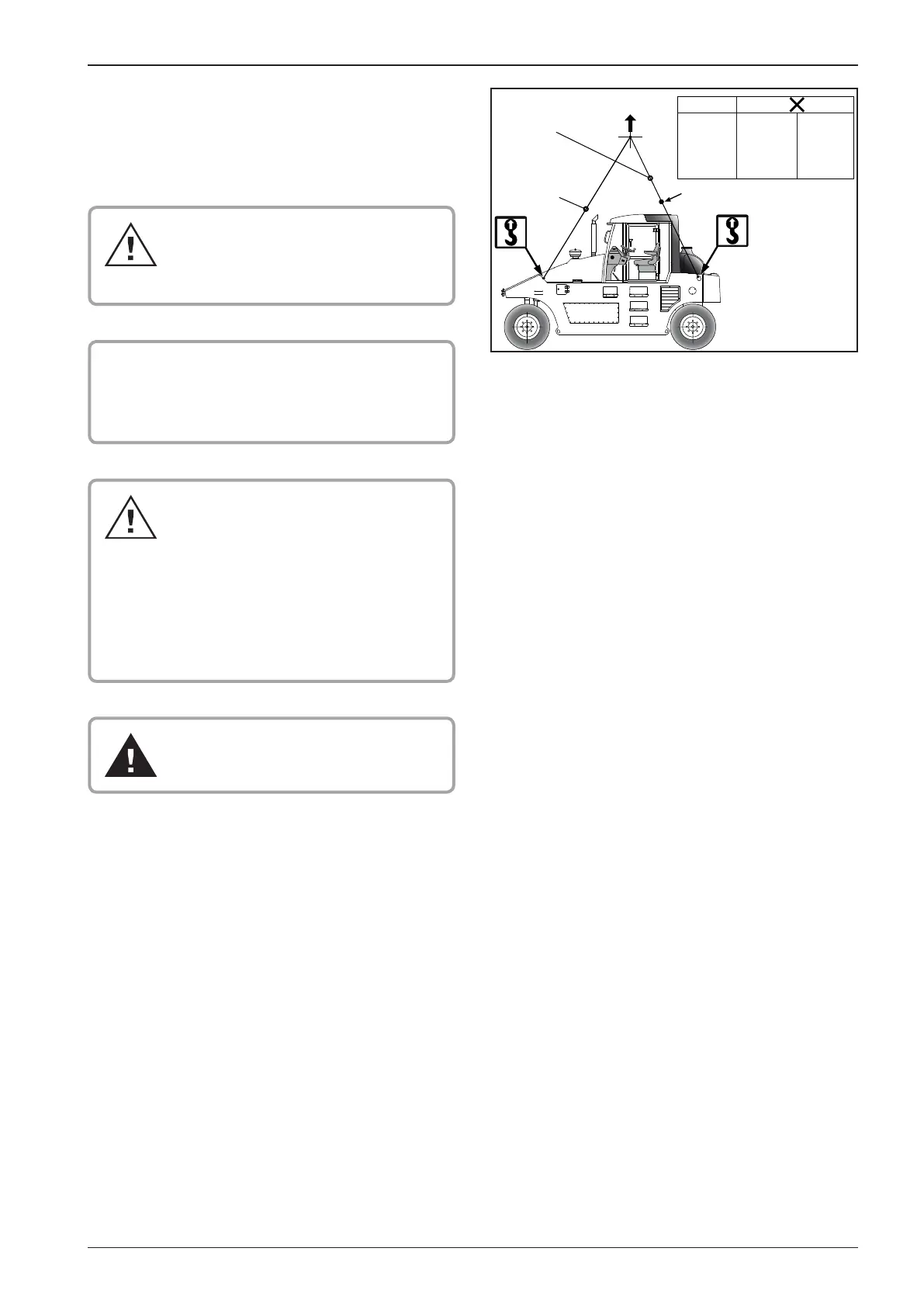

2.8.1. Machine loading
Loading is best to be carried out from the side of drive-up •
ramp. Unless such ramp is available, use a crane. Use lifting
lugs to hang the ropes.
! CAUTION !
When using ropes shorter than 8 m (26.3 ft), insert
cross bar (A) 1,95 m (6.4 ft) long between the ropes
overhead the cab.
Beware of Roller’s actual mass incl.
weight and additional load in ballast
spaces of Roller!
Use only the designed lifting lugs in-
tended to tie the ropes.
Binding may only be performed by a
binder with a binding certicate.
Use lifting equipment and rigging of suf-
cient loading capacity.
Do NOT enter under the hung load!
When loading and unloading the ma-
chine, it is necessary to observe the pro-
visions of ISO 12480-1 and to use slings
under EN 1492-4+A1.
