Arcom SBC-GX1 User Manual

SBC-GX1 Technical Manual Appendix B – Connector details

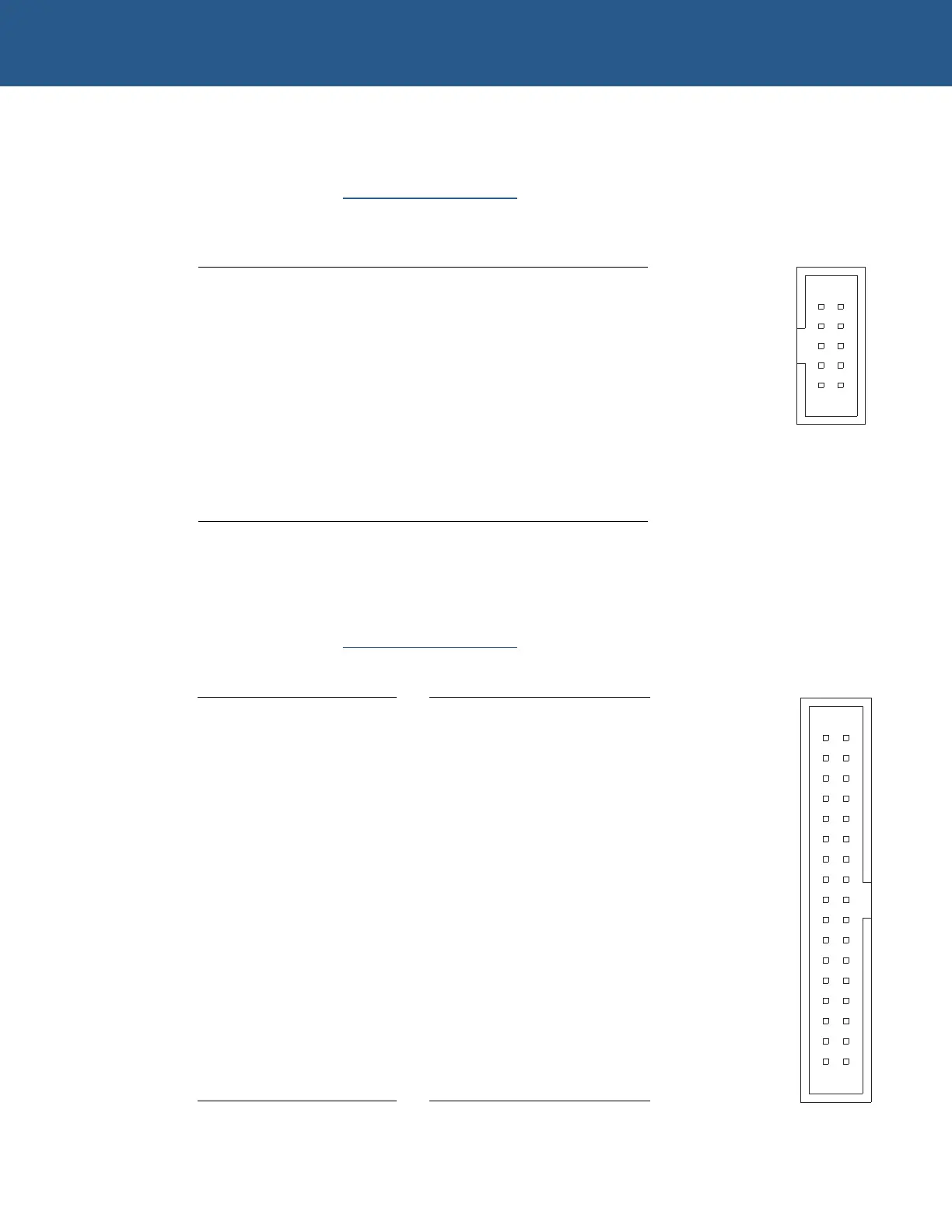

PL10 – COM4 RS232 serial port
Connector: 10 way, 2.54mm (0.1”) x 2.54mm (0.1”) boxed header
Mating Connector:
Framatome 71600-010
Pin (10-way
header) Signal Name
Pin (9-way
D-type plug)
1
Data Carrier Detect (DCD) 1
2
Data Set ready (DSR) 6
3
Receive Data (RX) 2
4
Request To Send (RTS) 7
5
Transmit Data (TX) 3
6
Clear To Send (CTS) 8
7
Data Terminal Ready (DTR) 4
8
Ring Indicator (RI) 9
9 Ground 5
10 No Connect -
1
9
2
10
PL11 - Flat panel interface connector
Connector: 34 way, 2.54mm (0.1”) x 2.54mm (0.1”) boxed header
Mating Connector:
Framatome 71600-034
Pin Signal Name Pin Signal Name
1 FPD0 2 FPD1
3 FPD2 4 FPD3
5 Ground 6 FPD4
7 FPD5 8 FPD6
9 FPD7 10 Ground
11 FPD8 12 FPD9
13 FPD10 14 FPD11
15 Ground 16 FPD12
17 FPD13 18 FPD14
19 FPD15 20 Ground
21 FPD16 22 FPD17
23 Ground 24 CLKFP
25 Ground 26 FPVDD
27 FPVDD 28 HSYNC
29 VSYNC 30 Ground
31 BKLSAFE 32 DISPEN
33 VDDEN 34 BKLEN
21
34 33
© 2004 Arcom Issue D 87
