Areca ARC-1222 - 2.2 Board Layout

HARDWARE INSTALLATION
16
Connector Type Description
1. (J4) Ethernet Port RJ45
2. (JP2) Individual Fault LED Header 8-pin header
3. (J5) Individual Activity (HDD) LED Header 8-pin header
4. (J6) Global Fault/Activity LED 4-pin header
5. (J2) Battery Backup Module Connector 12-pin box header
6. (J1) Manufacture Purpose Port 10-pin header
7. (J3) I2C/LCD Connector 8-pin header
8. (SCN1) SAS 1-4 Ports for ARC-1212/1222 Min SAS 4i
9. (SCN2) SAS 5-8 Ports for ARC-1222 Min SAS 4i
Table 2-1 , ARC-1212/1222 Connector

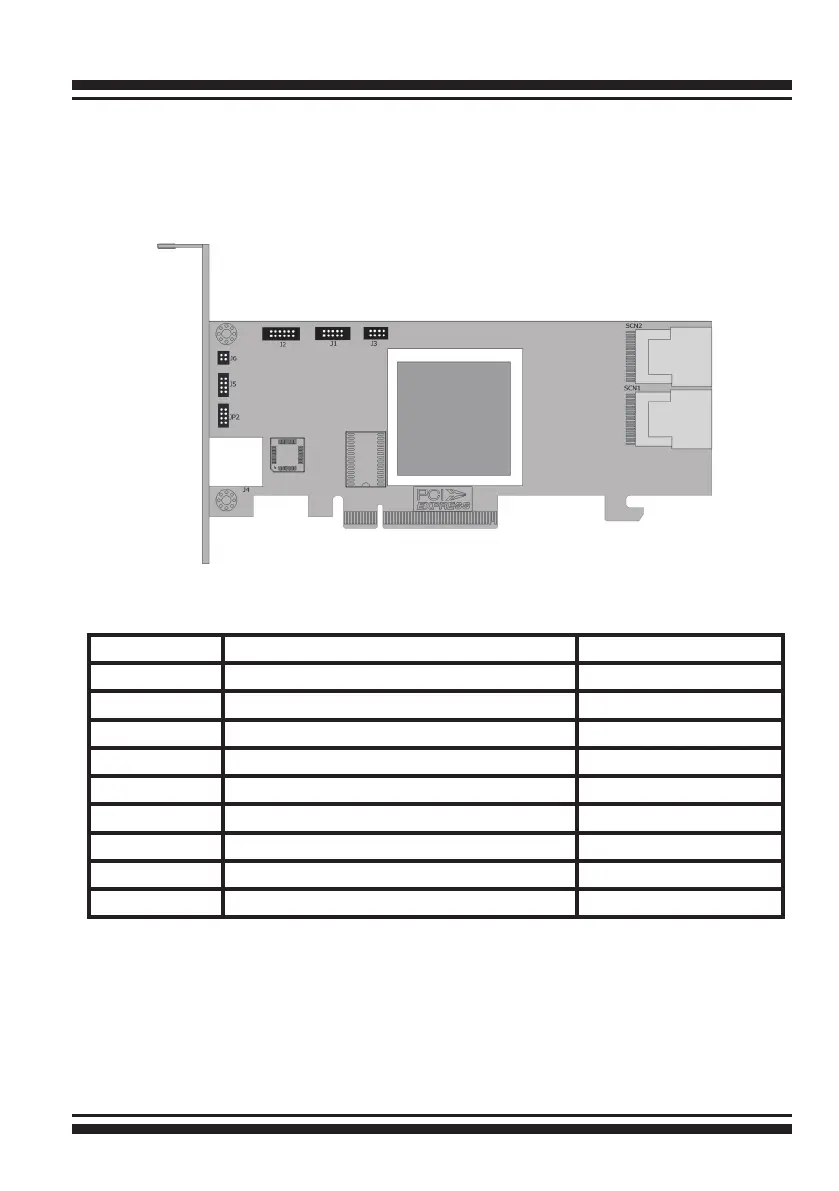

Figure 2-1, ARC-1212/1222 SAS RAID Controller
2.2 Board Layout
The controller can support a family included 4/8 ports models with
1/2 internal SFF-8087 connectors. This section provides the board
layout and connector/jumper for the SAS RAID controller.
