HARDWARE INSTALLATION
24
supports SGPIO header can leverage the SGPIO function on the
SAS RAID controller through the sideband cable.
The sideband cable is reserved for the backplane with header on
it.

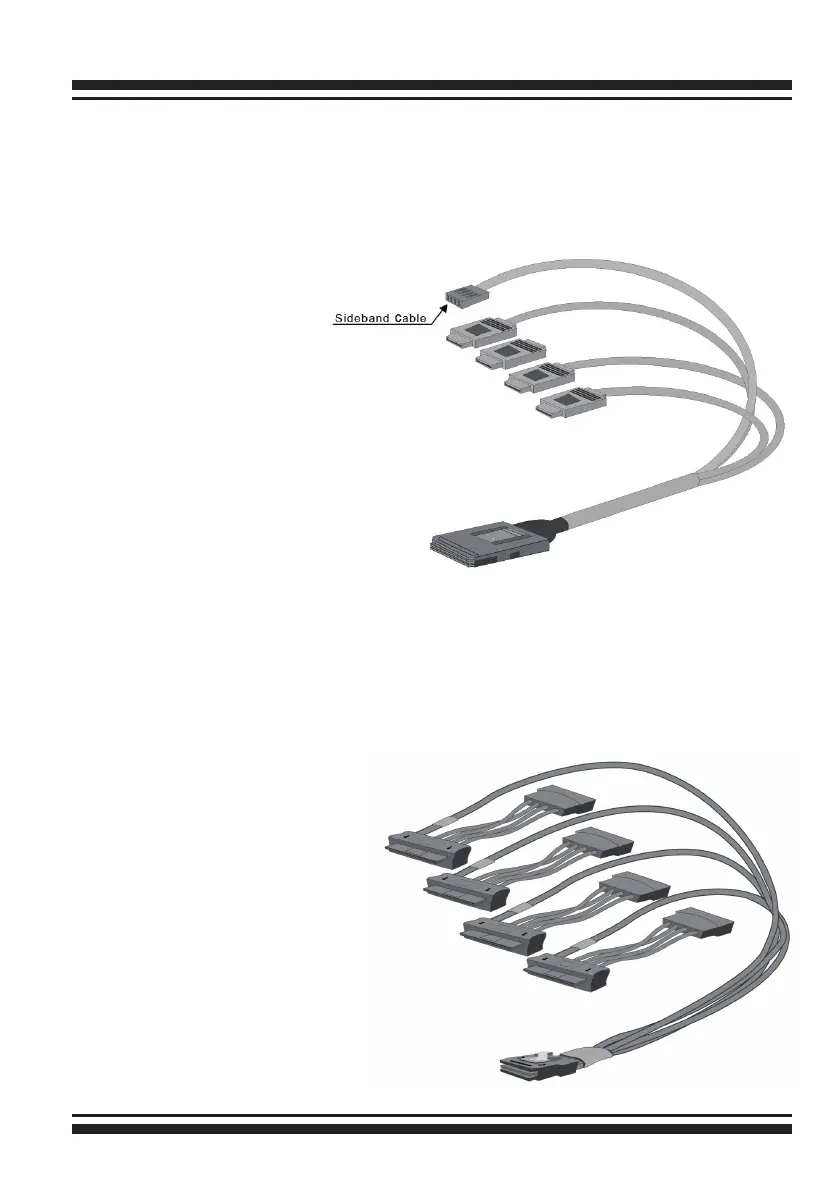

Figure 2-5, Internal Min SAS 4i to 4x SATA Cable
2.4.2 Internal Min SAS 4i to 4xSFF-8482 Cable
These controllers can be installed in a server RAID enclosure with
out a backplane. The kind of cable will attach directly to the SAS
disk drives. The following diagram shows the picture of Min SAS
4i to 4xSFF-8482 cables.
Figure 2-6, Min SAS 4i to 4xSFF-8482 Cable
