PU-4010 1-12

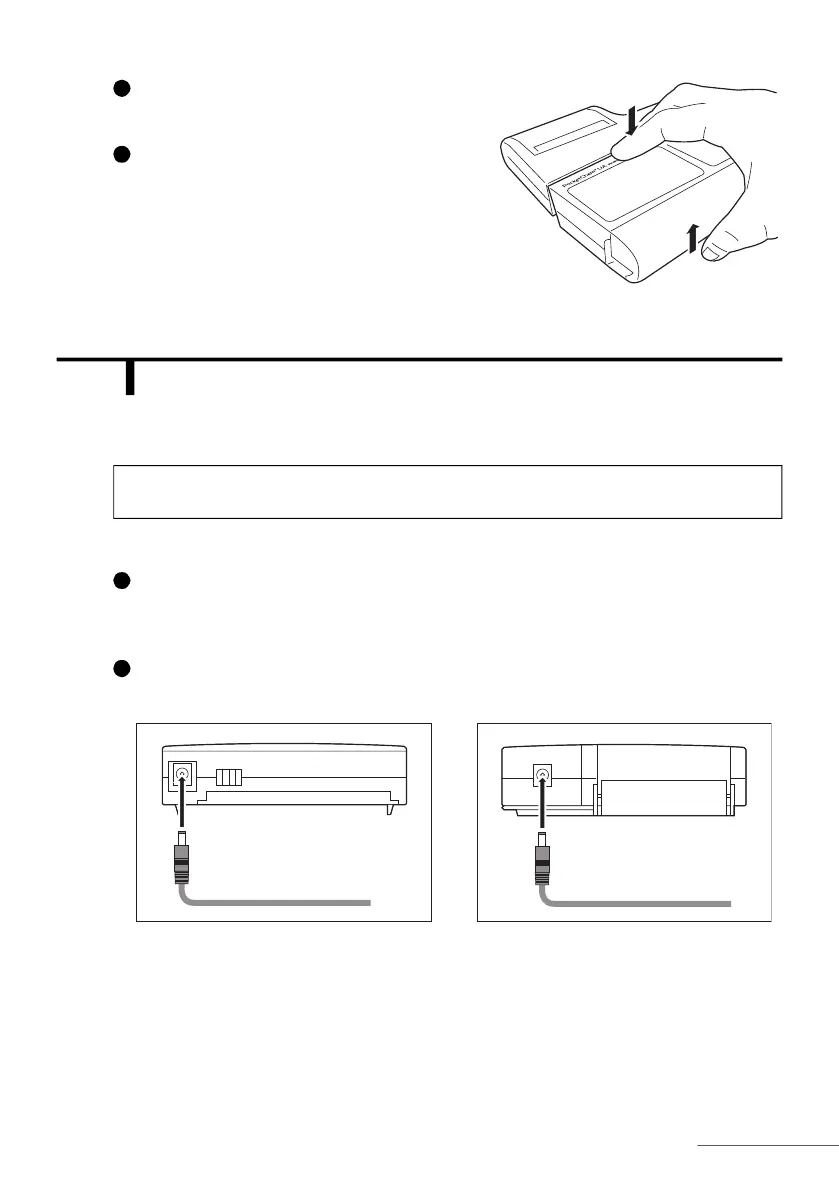

How to Detach
Place the instrument on a level surface
(such as a desk).
While pressing on the casing above the
display at a point aligned with the center of
the display (
a), lift up the reading unit
cover from the bottom to detach the
instrument from the printer (
b).
1-4-3 For AC-Power Operation
The instrument can run on AC power, instead of batteries. Be sure to use the AC adapter that
came with the instrument for AC-power operation.
Insert the flat connector of the power cord into the AC adapter.
• Use the power cord and AC adapter that came with the instrument.
Insert the plug of the AC adapter into the power input terminal as shown below.
1
2
NOTE: The printer runs on AC power only, not batteries. The printer must be correctly
attached to the instrument before connecting the AC adapter to the printer.
1
2
Rear of the instrument
Rear of the printer
For use with the instrument only For use with the printer and instrument
Plug the AC adapter to terminal on the
rear of the instrument.
Plug the AC adapter to terminal on the
rear of the printer.
To Next Page
