PU-4010 1-17

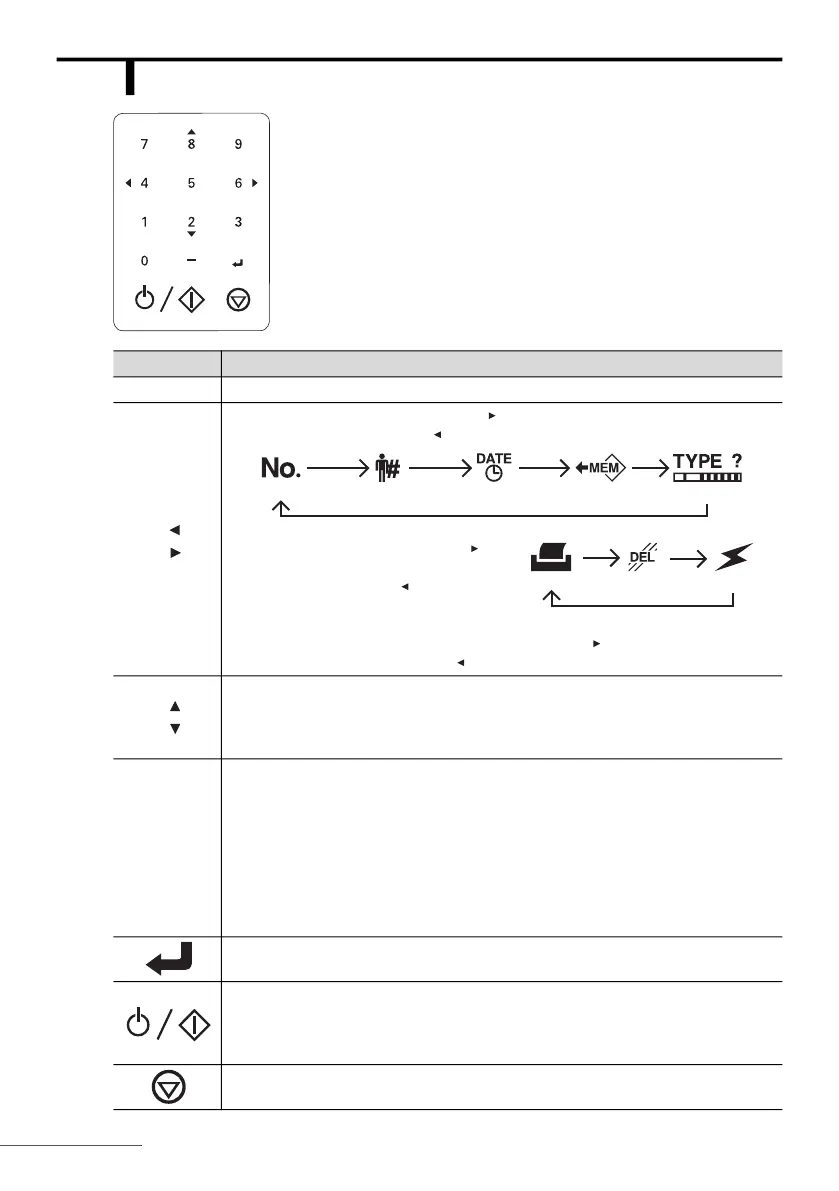

1-5-2 Operator Panel
Buttons Descriptions
0
-
9
Use the numeric buttons to enter numbers from 0 to 9.
On the standby screen: Press the button to change the functions in the
order shown below and the button, to change them in reverse order.
During result review: Press the
button to change the functions in the order
shown at right and the
button, to
change them in reverse order.
To move the test strip holder: Press and hold the button to move the test
strip holder to the right and the button, to move it to the left.
During result review: Use these buttons to view the previous or next result.
During test strip selection: Use these buttons to select the previous or next test
strip.
— (Hyphen)
On the standby screen: Press this button to access the test strip type setting
screen.
During patient ID setting: Press this button to enter a hyphen (-).
During result review: Press this button to change the content of the information
area in the order of measurement number, patient ID, date, time and “ALL”.
During date setting: Press this button to move the cursor to the next digit.
Press this button to confirm your entry.
When the power is off: Press this button to turn on the power.
When the power is on: Press this button to start testing. Holding down this button
for 3 seconds or more turns off the power.
Cancel button: Press this button to stop testing when in progress. When entering
numbers, press this button to cancel your entry.
REFERENCE:
• A short beep sounds each time a button is pressed.
• If it is difficult for you to press the buttons with your
fingers, use the stylus pen that came with the instrument.
