PU-4010 1-16

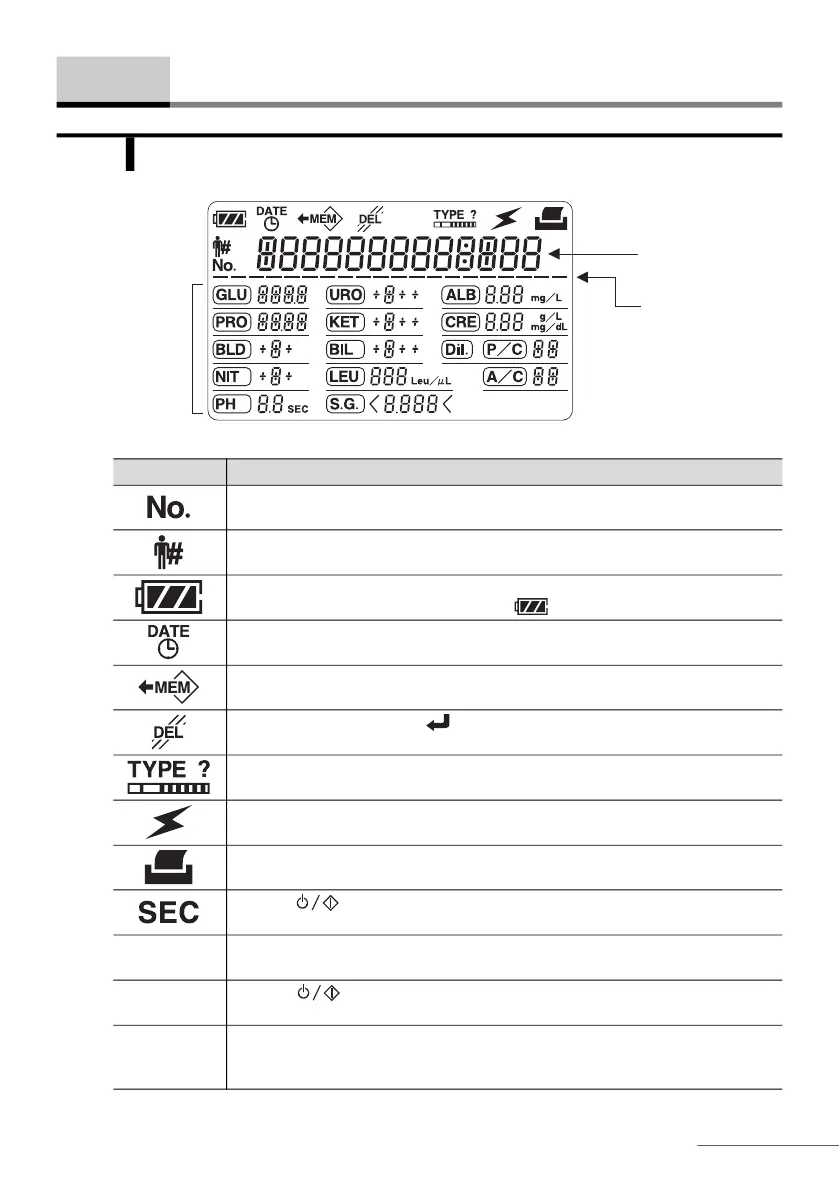

1-5-1 Display
Components Descriptions
Steady light: When current measurement number is displayed.
Blinking: When you are setting the measurement number.
Steady light: When current patient ID is displayed.
Blinking: When you are setting a patient ID.
Appears when the instrument is on. In battery operation, this icon indicates
battery level. See “About the Battery Icon
” on page 1-12.
Steady light: When current date or time is displayed.
Blinking: When you are adjusting the date or time.
Appears when an existing result has been retrieved from memory and appears
on the display.
When blinking, pressing the button deletes the currently displayed result (or
all results) from memory.
Steady light: When test strip type currently selected is displayed.
Blinking: When you are selecting test strip type.
Appears when result(s) are being transferred to an external device.
Appears when test result(s) are being printed from printer.
After the button is pressed, the second-based countdown timer appears to
indicate the timing of test strip dipping and placing.
Information
area
Displays general information including measurement numbers (up to 4 digits),
patient IDs (up to 13 digits), date, time and test strip type.
Status
indicator
After the button is pressed, these bars disappear one by one to indicate
the timing of test strip dipping and placing.
Result area Abbreviations and test results appear here after a test is performed or when a
result has been retrieved from memory for viewing. See
“2-7. Examples of
Results” on page 2-15.
1-5 Basic Operations
Result
area
Information area
Status indicator
