28 Installation of The Camera
Viewfinder Cable short KC-150S 0.26 0.12
Center Camera Handle CCH-1 0.60 0.27

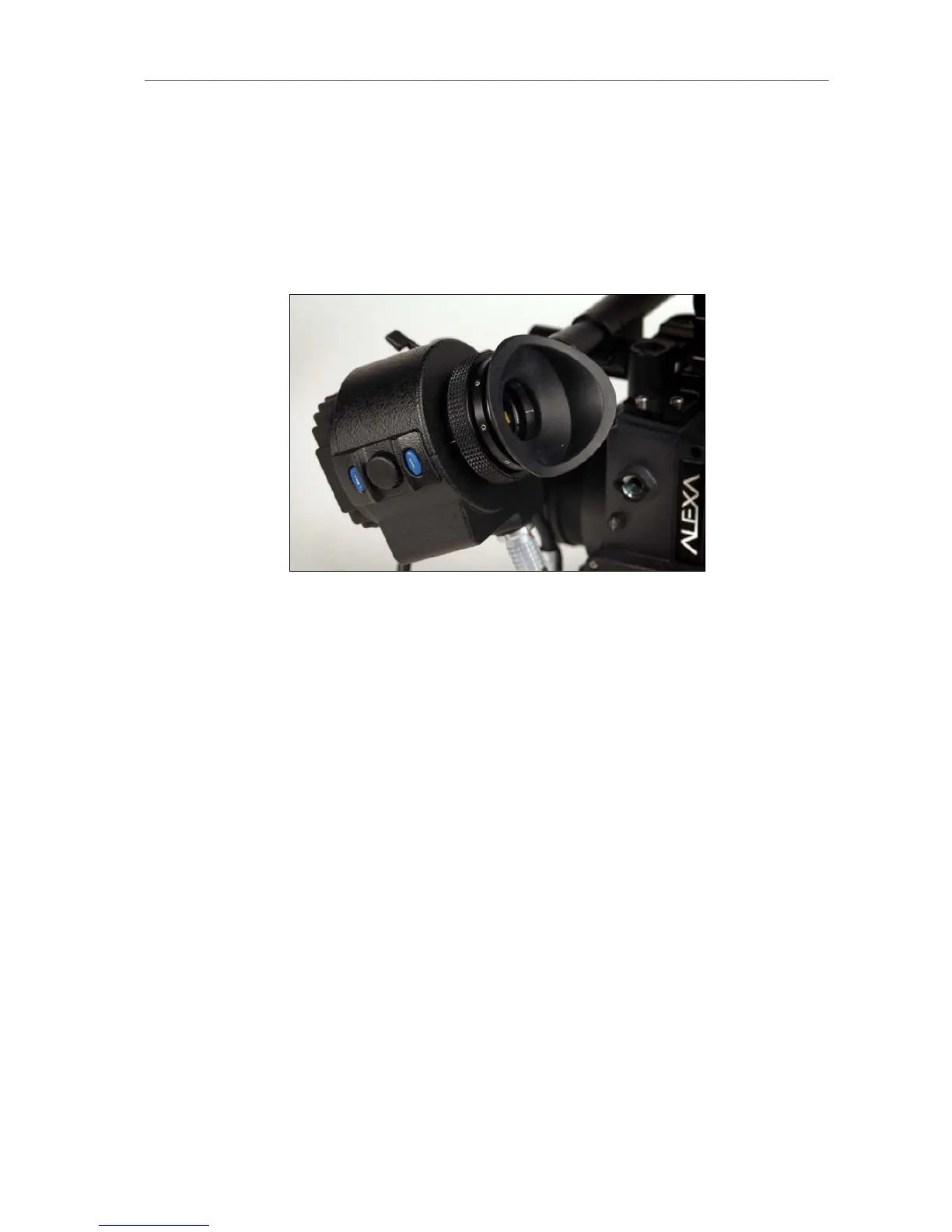

8.3 Electronic Viewfinder EVF-1
The EVF-1 employs an LCOS imaging device together with a temperature
stabilized LED light source to provide an accurate and bright view of the
sensor image under all operating conditions. The viewfinder is calibrated to
match the image of the camera's HD outputs.
The image area of the EVF-1 has a size of 1280x720 pixels. 32 additional
pixels each above and below the image provide two status bars for
displaying camera information. The EVF-1 can display the 10% surround
view area of the sensor to help the operator track unwanted elements before
they enter the recorded image area. Focus can be checked by temporarily
zooming into the image center with a magnification of 2.25x. The low-latency
interface of the EVF-1 has a delay of less than 1 frame.
