72 Camera Controls
MON OUT
frame rate
The rate at which frames are output on the MON
OUT HD-SDI.
SxS CARD
1 max. fps
Maximum frames per second the SxS PRO card in
card slot 1 can record with currently set SxS codec.
SxS CARD
2 max. fps
Maximum frames per second the SxS PRO card in
card slot 2 can record with currently set SxS codec.

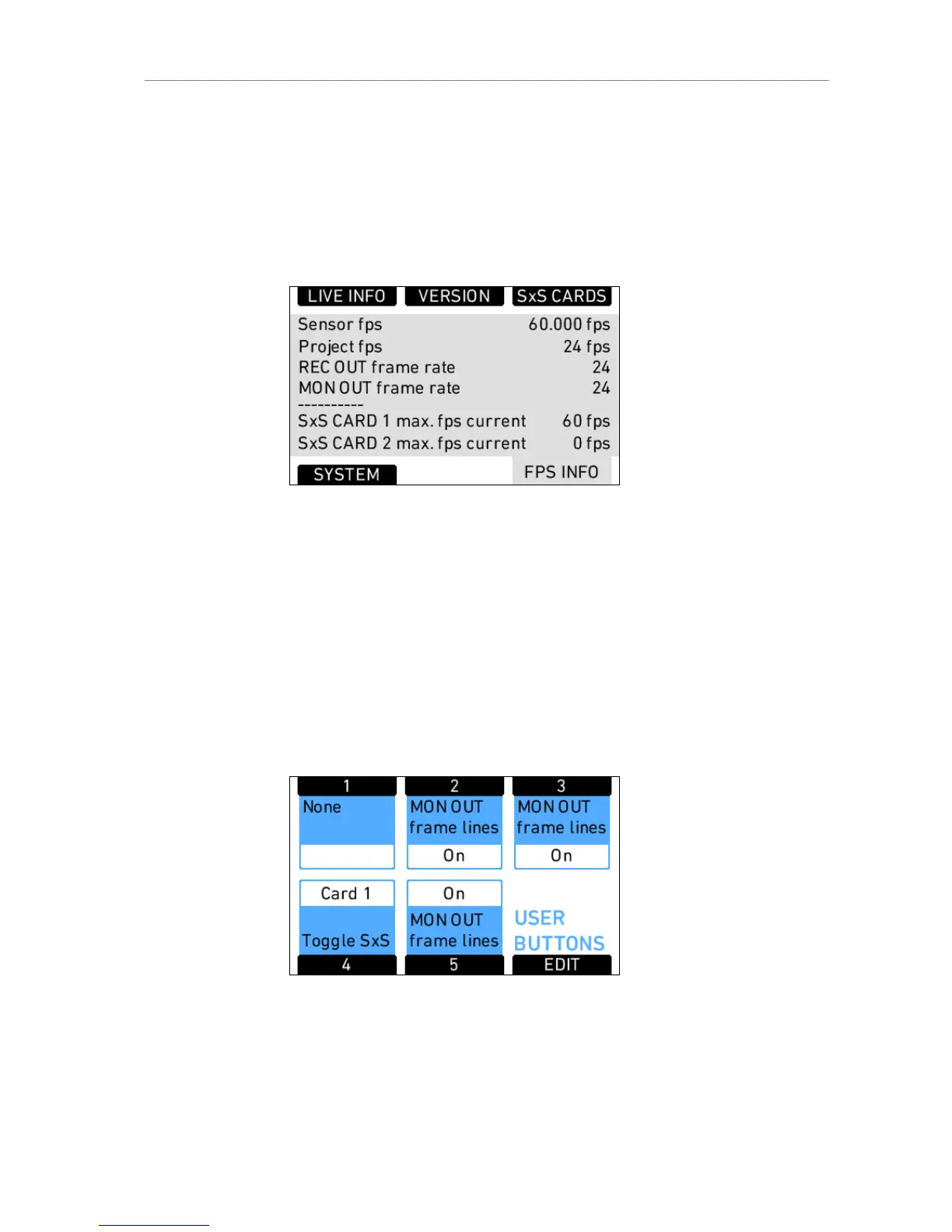

Figure 52: FPS Info screen
11.1.4.3 USER
By pressing the USER button the USER screen is loaded where the screen
buttons can be assigned with user defined functions.
The upper three screen buttons of the USER screen mirror the behavior of
the three assignable buttons on the camera left side (labeled 1, 2, 3). The
two outer lower screen buttons function as additional assignable buttons with
extended functionality.
By pressing the lower right EDIT screen button, the functions can be
assigned to the buttons.
Figure 53: User screen
