Electronic Viewfinder EVF-1 29
The viewfinder is connected to the camera with the mounting bracket VMB-
1.

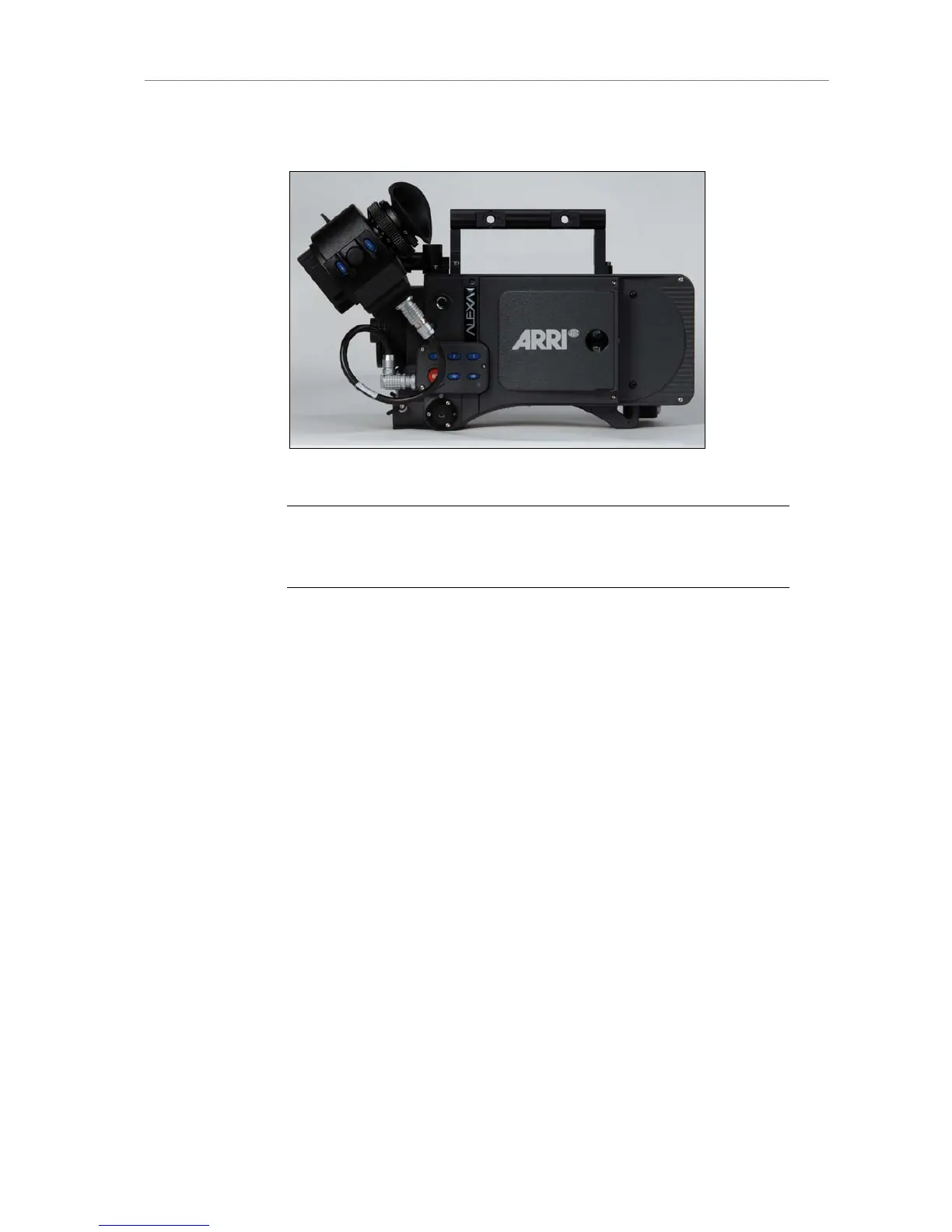

Figure 11: Camera with EVF-1
Note: Do not point the viewfinder eyepiece at direct sunlight or bright light sources, as
this could damage the LCOS imaging device. If possible, cover the eyepiece when
not in use to prevent any damage.
8.3.1 Viewfinder Cables
The viewfinder cables are unidirectional with a male plug to connect to the
camera and a female plug to connect to the viewfinder.
Cables are available in the following lengths:
Model Length
(m / ft)
Purpose
KC-150-S 0.35 / 1.2 For use of EVF-1 on camera left side in
handheld mode
KC-151-S 0.65 / 2.1 For use of EVF-1 on camera right side or
when using Viewfinder Extension Bracket
VEB-1
KC-152-S 2.00 / 6.6 Longest possible length for use with specialty
rigs
