Side Camera Handle SCH-1 33

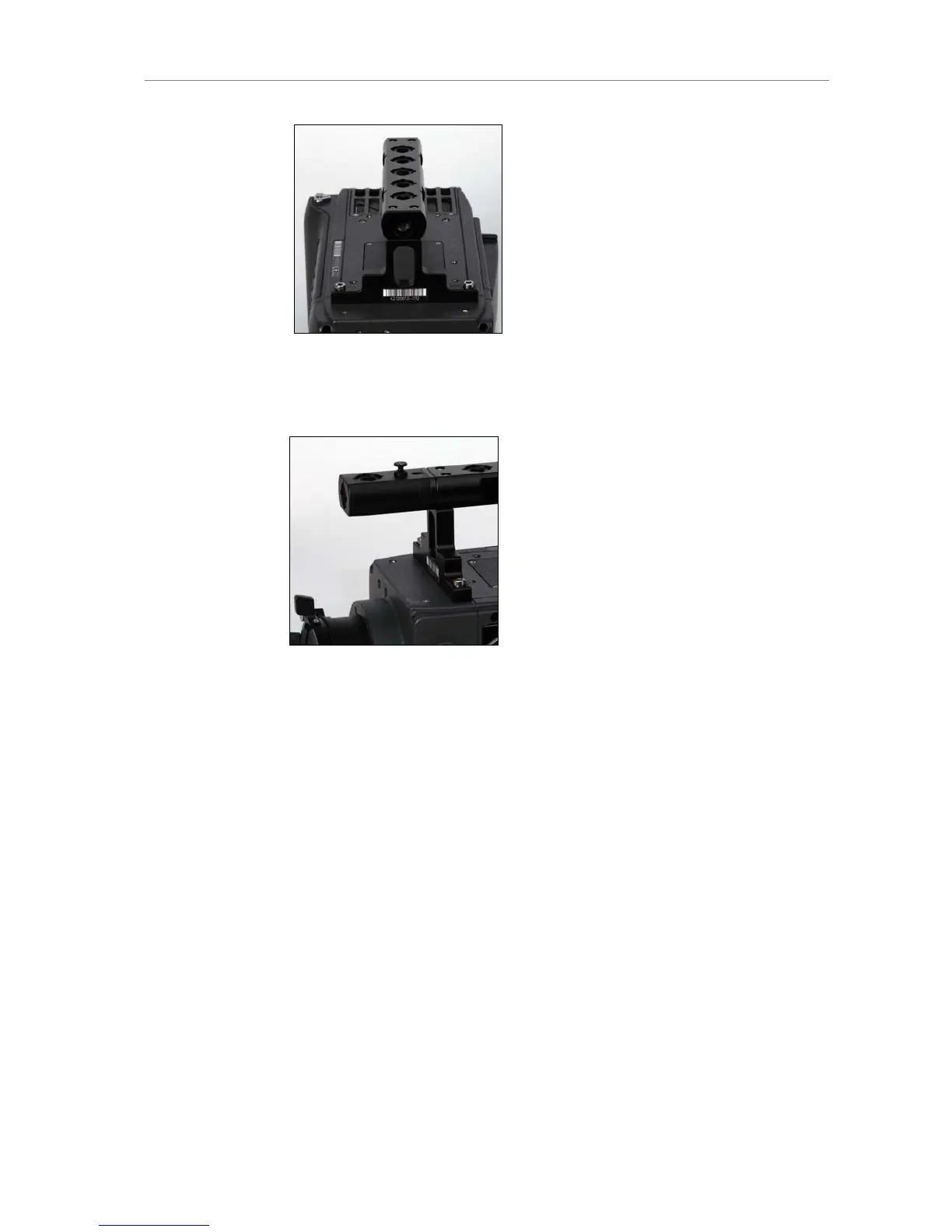

The handle extension block HEB-2 mounts to the front end of the CCH-1 and
adds one more focus hook to the camera in a high position, so the tape
measure clears the matte box.
8.5 Side Camera Handle SCH-1
The SCH-1 is used in conjunction with a BAT-V or BAT-G battery top
mounting adapter, or with third-party onboard recorders. It is attached to the
camera with 3 screws, two at the front and one at the back. Make sure the
screws are tightened firmly with a 3 mm Allen key.
If a tall battery or a tall third-party onboard recorder is used, the adjustable
center grip of the SCH-1 can be replaced by the taller Adjustable Center Grip
Tall (ACG-2).
