4.10.1.4 Airport Flags
An Airport Flag displays the airport’s identifier and its location. A flag is presented
when the aircraft is approximately 20nm away from an airport. When the aircraft is
approximately 2nm away from the airport, the flag is removed from view.
The destination airport that has been loaded into the aircraft’s GPS flight plan is
identified with a magenta flag (Figure 4-120). Other airports are identified with a white
flag (Figure 4-121).
The Airport Flag can be decluttered according to several parameters: Flight Plan
Airports only, no flags shown, all hard surface runways, or only airports with runway
lengths greater than 4500, 4000, 3500, 3000, 2500 feet.
The Airport Flag display option is found in the MENU of the PFD and MFD. The settings
for the Airport Flags are; Flight Plan Airports Only, None, ON>4500, ON>4000, ON>3500,
ON>3000, ON>2500, All Hard Surface, and ALL ON.

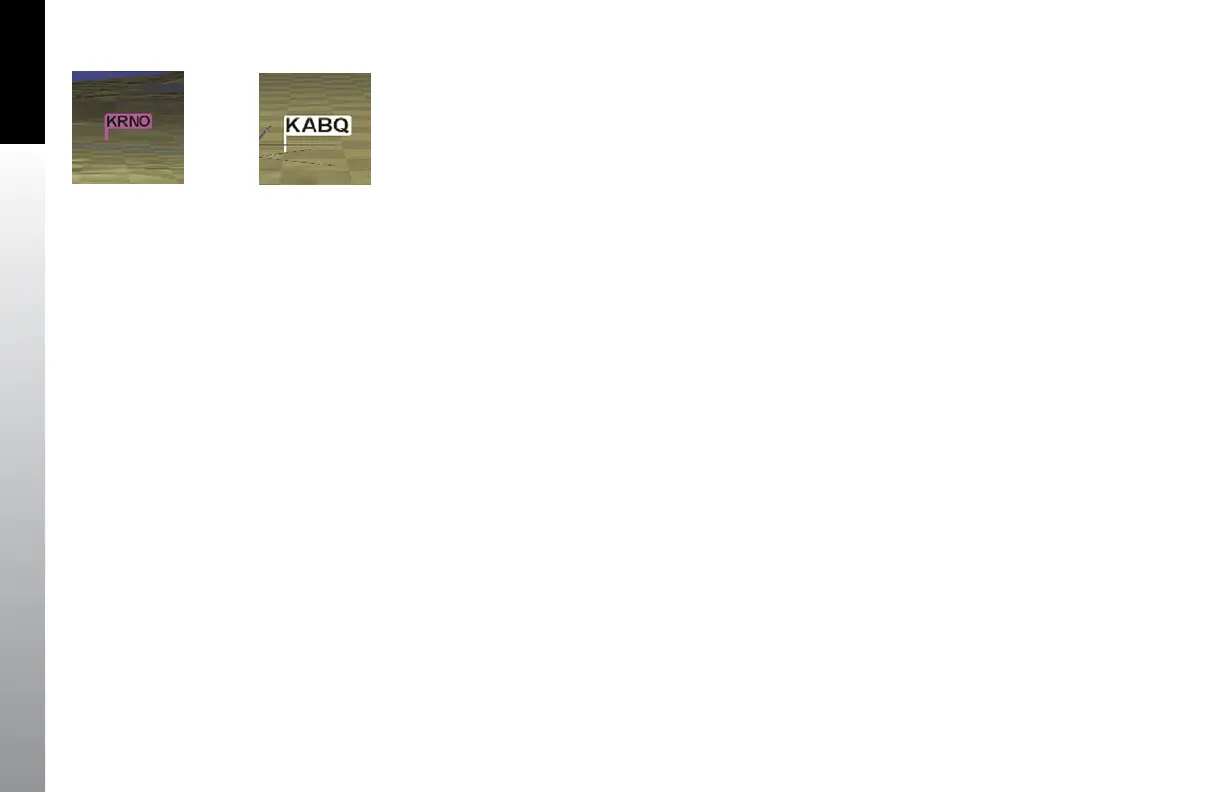

Figure 4-121
Other Airport Flag
Display
Figure 4-120
Load Airport Flag
Display
