4.10.1.5 Runways
Hard-surfaced runways are gray in color with white runway markings.
Runway markings include the runway centerline, runway numbers,
letters for parallel runways, runway threshold markings, and displaced
thresholds (Figure 4-122).
Other than hard-surfaced runways, often referred to as a grass runway
or a gravel runway, are colored differently depending on the airport field
elevation. Runways at field elevations 2000 feet and greater are colored
tan with gray. Runways at field elevations less than 2000 feet are colored
green with gray (Figure 4-123).

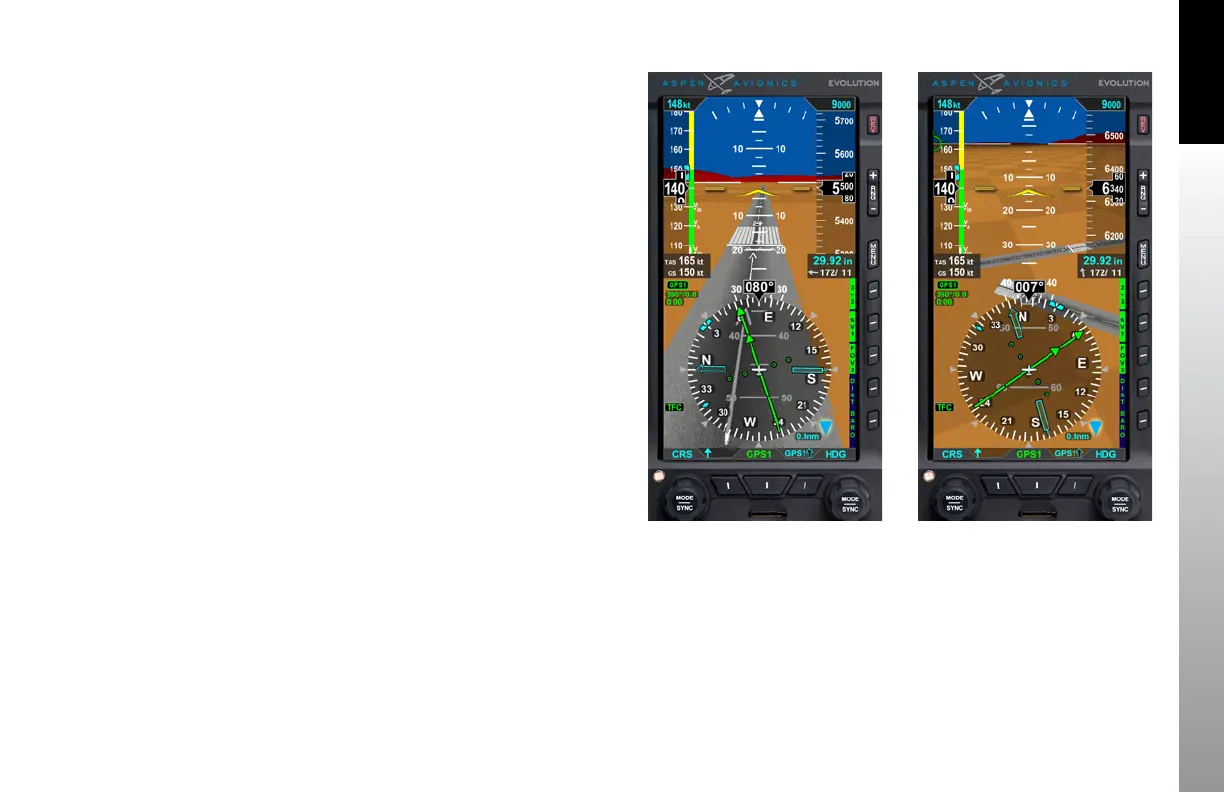

Figure 4-123
SV Distance Marker
Figure 4-122
Hard-surfaced Runway Display
