CHAPTER 4 REFERENCE GUIDE
EFD1000 PRO MAX PFD Pilot’s Guide
Page 4-82
091-00005-002 ()

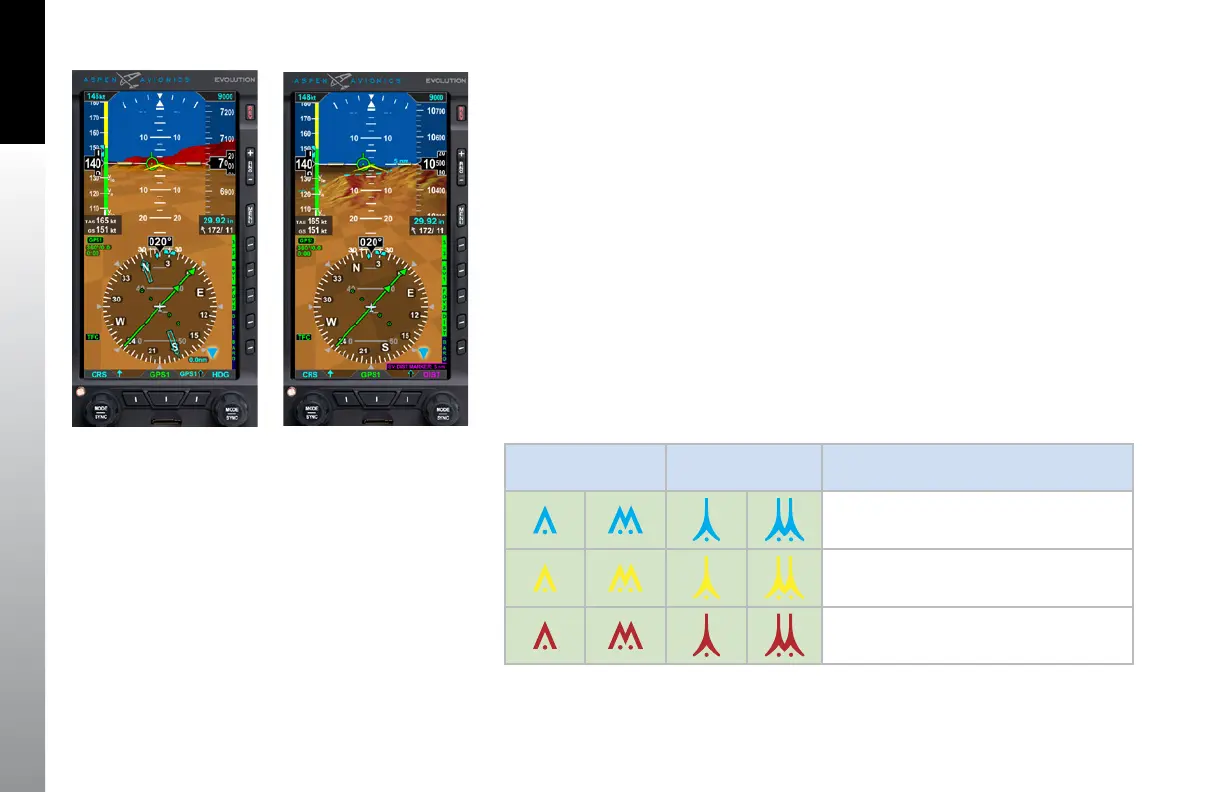

4.10.1.6 Obstacle Symbols - Towers
Three-dimensional obstacle symbols Table 4-14 are presented in perspective on
all Synthetic Vision VIEWs and also in a top-down two-dimensional view on the Nav
Display of SV3 (Figure 4-124). ESV presents obstacles taller than 200 feet AGL that are
within 2500 feet vertically of the aircraft altitude.
The obstacles presented in the Synthetic Vision VIEW appear small at first and grow
larger as they get closer to the aircraft.
• Obstacles that are between 500 feet and 2500 feet below the aircraft’s
altitude are blue.
• Obstacles that are between 100 feet and 500 feet below the aircraft’s
altitude are amber.
• Obstacles that are above the aircraft’s altitude or within 100 feet below
the aircraft’s altitude are red.
Obstacle Height
< 1000’ AGL
Obstacle Height
> 1000’ AGL
Obstacle Symbol Color Meaning
Obstacle is between 500’ and 900’ below
aircraft’s altitude
Obstacle is between 100’ and 500’ below
aircraft’s altitude
Obstacle is above aircraft’s altitude or within
100’ below aircraft’s altitude
Table 4-14 Obstacle Symbols and Meanings
Figure 4-124
NAV Display SV3
Figure 4-125
Synthetic Vision VIEW
