4.2.2. Airspeed Indicator
The Airspeed Indicator comprises a moving tape, airspeed bug, and numerical airspeed
value (drum). Textual Vspeeds, color Speed Bands, and Speed Markers are also rendered
on the moving tape (Figure 4-7).
Selected Airspeed Field
Color Speed Bands
Textual Vspeeds
Initial Flap Extension Speed Marker
Airspeed Tape
Speed Marker
Numerical Airspeed Value (drum)
Selected Airspeed Bug

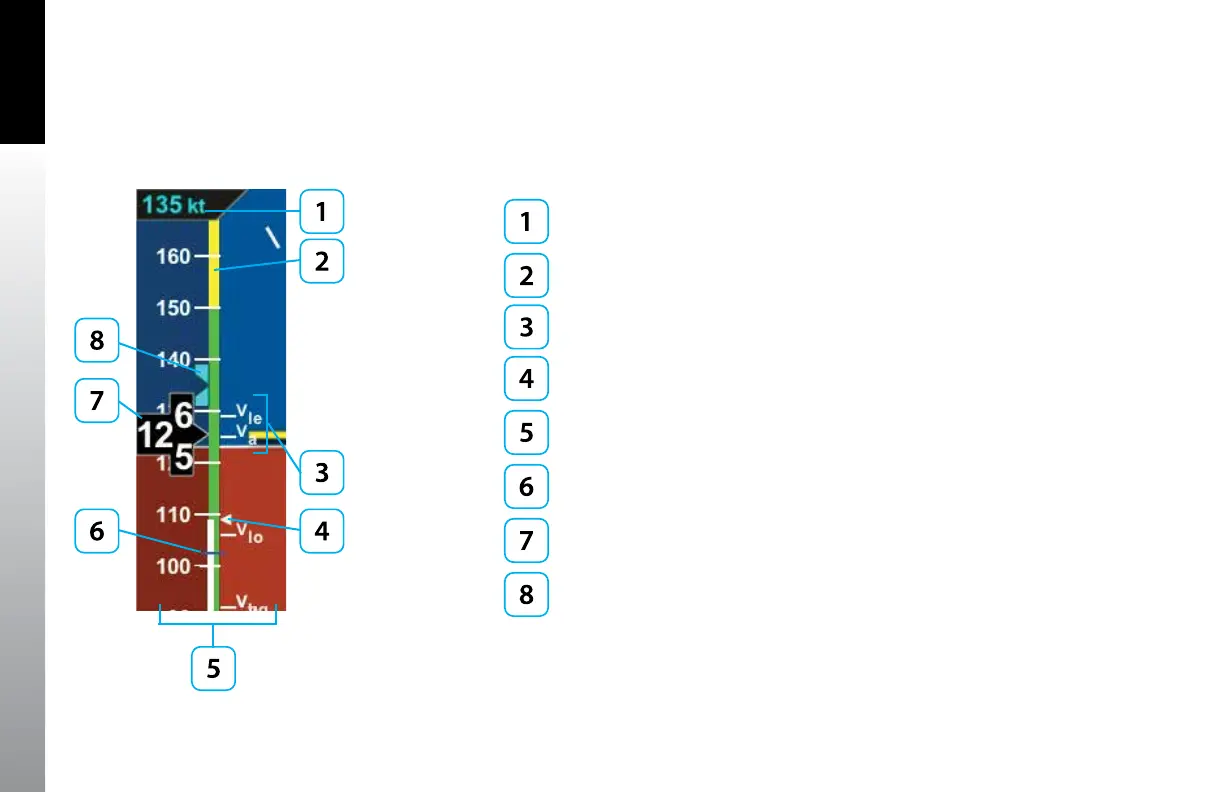

Figure 4-7
Airspeed Indicator
