CHAPTER 2 CONTROLS AND DISPLAY
EFD1000 VFR PFD Pilot’s Guide
Page 2-6
091-00028-001 ( )
2.2.1.3. SYNC Function
Knob SYNC Function
1. Press the Knob until its state shows the value you want to set in magenta.
2. Press and hold the Knob for approximately one (1) second to SYNC the eld’s
value according to the rules shown in Table 2-2.
3. After 10 seconds of inaction, the knob reverts to its home state (CRS or HDG),
and the labels and eld turn to cyan (inactive).
Right Knob
SYNC Action
ALT Altitude Bug and Altitude Alerter are set to the current altitude.
MIN
1
Set to the current altitude.
1
BARO Set to 29.92 in Hg or 1013 mB.
HDG Set to the current heading.
Right Knob -Current State default setting: HDG
Cyan indicates eld is inactive.
Figure 2-3

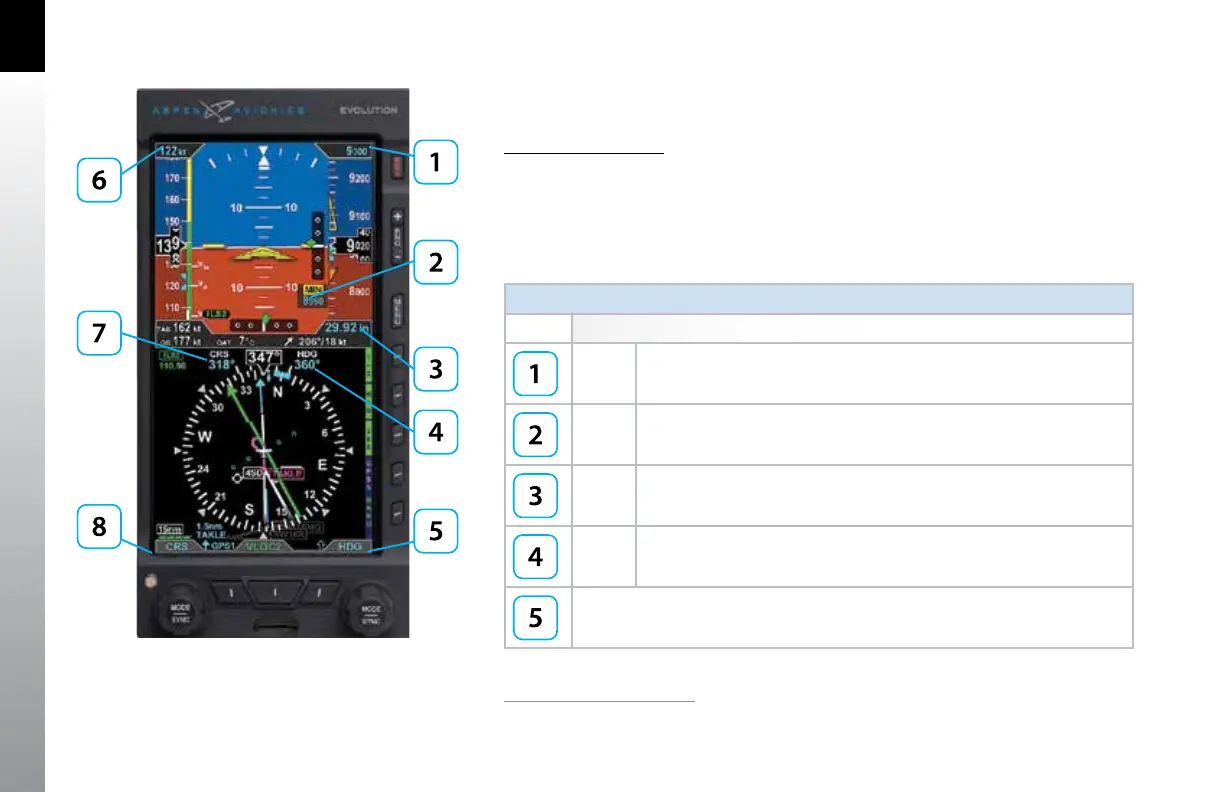

Left and Right Knobs and Corresponding Fields
1. Included i n VFR to PRO upgrade only
