Aspen Avionics Evolution EFD1000 VFR PFD - Altitude Level-Off and Deviation Alert

CHAPTER 4 REFERENCE GUIDE
EFD1000 VFR PFD Pilot’s Guide
Page 4-18
091-00028-001 ( )
4.2.3.3. Altitude Level-O and Deviation Alert
The Altitude (level-o ) Alert is ARMED and rendered on-screen as a yellow alert ag
next to the Selected Altitude value when the aircraft altitude transitions to within 200
feet or 15 seconds of reaching the selected altitude (Figure 4-23). Once the current
altitude is within ± 25 feet of the Selected Altitude, the Altitude Alert extinguishes
(Figure 4-24).
After reaching the Selected Altitude, if the aircraft’s current altitude diers from the
selected altitude by more than 200 feet, the yellow alert ag ashes.

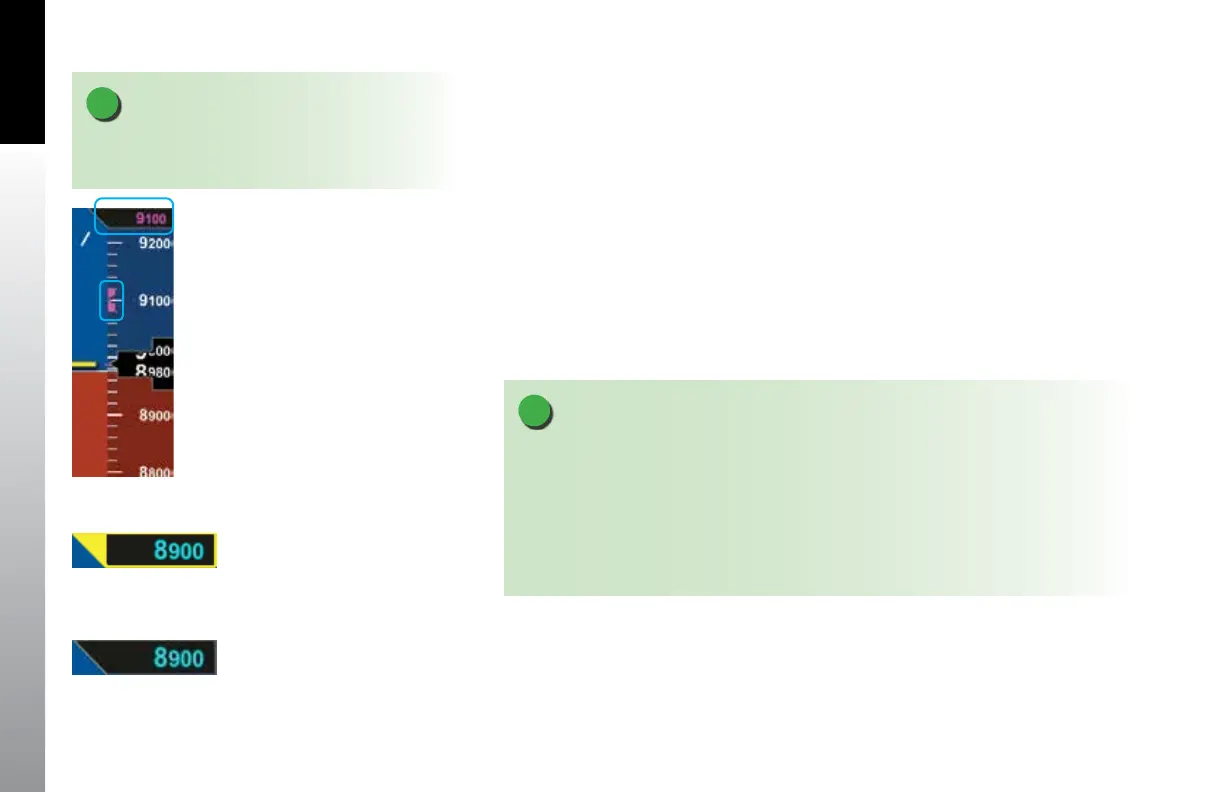

Figure 4-22
Altitude Bug and Altitude Alerter Enabled
NOTE
Rotating the knob quickly will change the altitude
value in larger increments.
Figure 4-23
Altitude Alert
Figure 4-24
Altitude Alert Extinguishes at
Selected Altitude
NOTE
Setting the Altitude Alerter provides visual cues to help the pilot capture and maintain target
altitudes. When set to a new altitude, the Alerter will illuminate a yellow ag adjacent to
the target altitude display; 15 seconds (or 200 feet) before the aircraft will reach the target
altitude (based on current rate of climb or descent). The yellow ag will extinguish once the
target is reached. Subsequently, if the aircraft deviates more than 200 feet above or below
the target altitude, the ag will again illuminate to thedeviation.
