ADS-B Weather and Trac
Aspen will soon be oering a range of ADS-B receivers and transceivers to meet the
pending ADS-B mandate, January 1, 2020.
When connected to the EFD 1000 VFR PFD these options enable ADS-B weather and
trac hazards to be overlaid on the Navigation Display.
4.8. Hazard Awareness
1
Evolution Hazard Awareness (EHA) oers three hazard awareness options;
• Lightning (Data Link Weather and Stormscope® WX-500)
• NEXRAD
• Trac
Each option requires additional sensors. For Data Link Lightning and NEXRAD, an
additional subscription to XM WX Satellite Weather is required. Each hazard awareness
option is accessed by a Hot Key and displayed on the Navigation Display (Figure
4-114).
4.8.1. Lightning Overlay
1
The LTNG Hot Key is a three position Hot Key (LTNG, STRK, and CELL) that permits
display of satellite lightning information or Stormscope® WX-500 data overlaid on the
HSI.
When enabled, the lightning displays as described in Table 4-5. The LTNG Hot Key label
is inverse green (green label and dark blue letters) when enabled or a blue label and
green letters when disabled.

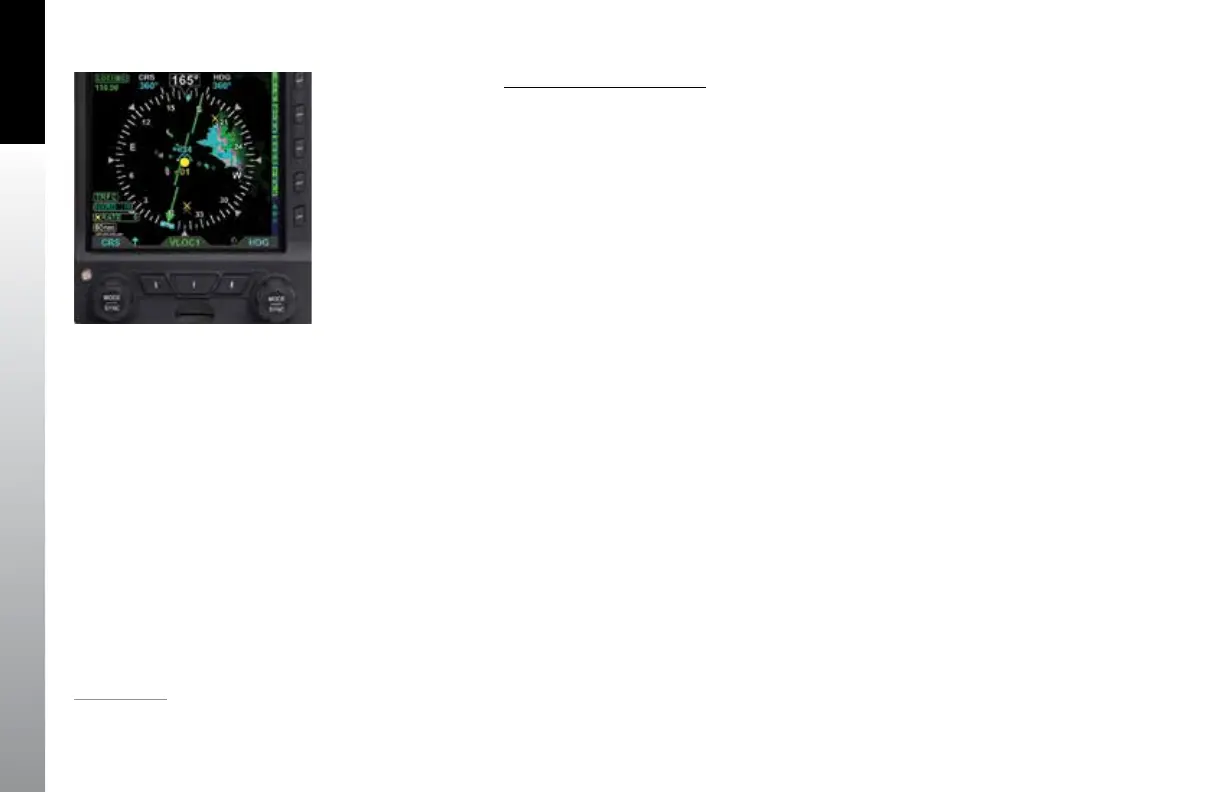

Figure 4-114
Navigation Display Showing
Hazard Awareness
1. VFR PFD option
