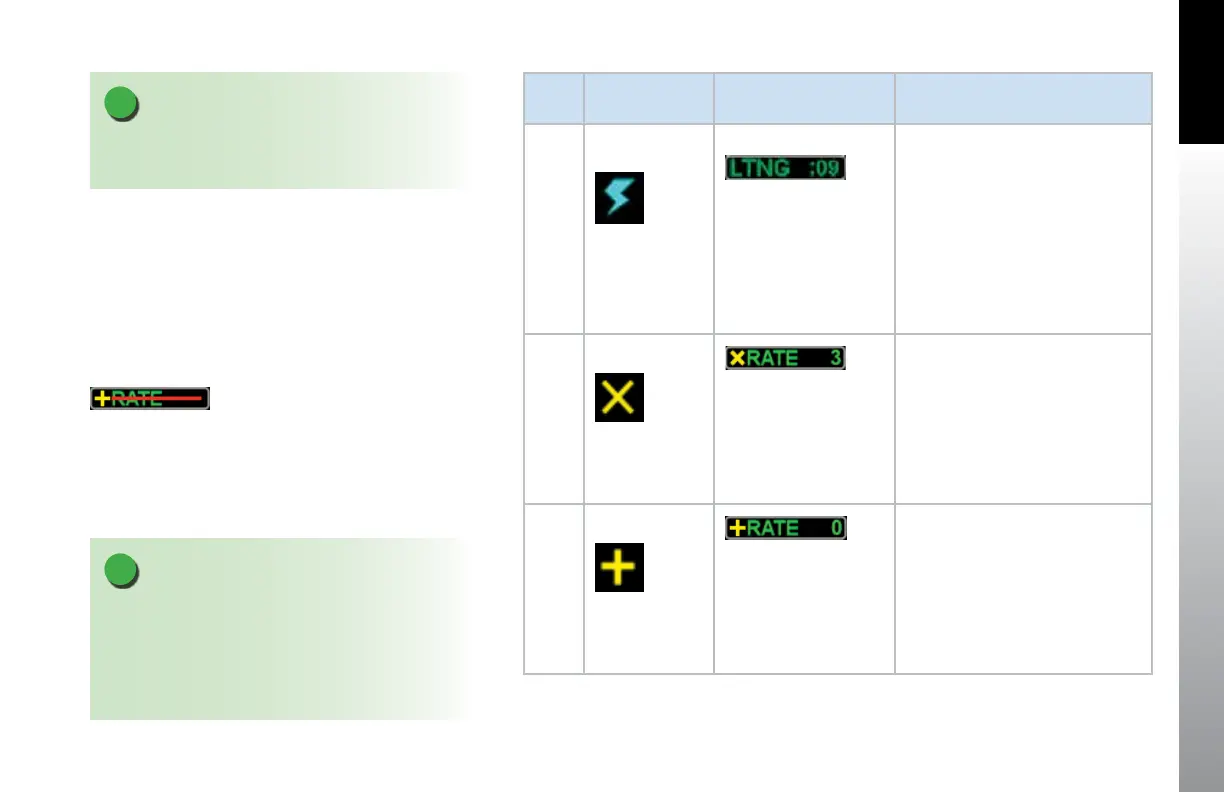

LTNG
Figure 4-115
Data Link Lightning
Symbol
Figure 4-116 Lightning Time
Annunciation displays in
the lower left corner of
the Navigation Display
showing the age of
received data.
Data Link Lightning Symbols
display as cyan lighting symbols
at full intensity for 5 minutes after
information is received.
Symbols are positioned on the
display relative to the Ownship
Symbol.
After 5 minutes, the symbols will
fade over the next 15minutes.
STRK
Figure 4-117
WX-500 Strike Symbol
Figure 4-118 WX-500 Strike Rate
Annunciation displays in
the lower left corner of
the Navigation Display
showing the current
strike rate.
Symbols are positioned on the
display relative to the Ownship
Symbol.
CELL
Figure 4-119
WX-500 Cell Symbol
Figure 4-120 WX-500 Cell Rate
Annunciation displays in
the lower left corner of
the Navigation Display
showing the current
cell rate.
Symbols are positioned on the
display relative to the Ownship
Symbol.
Table 4-5
Lighting Display
NOTE
WX-500 Lightning Symbols and rate annunciation are
removed from the Basemap for ranges less than 20nm.
NOTE
WX-500 data will not display, and the rate
annunciation displays with a red line when the
Stormscope receiver reports a fault or error, aircraft
heading is invalid or unavailable, or WX-500 data is
notdetected (Figure 4-121).
Figure 4-121
WX-500 Data is Not Available
