CHAPTER 4 REFERENCE GUIDE
EFD1000 VFR PFD Pilot’s Guide
Page 4-29
091-00028-001 ( )
4.4.4. Course Deviation Indicator and Scale
Selected course deviation is depicted by a Course Deviation Indicator and Scale.
Deviation is indicated by positioning the Course Deviation Indicator on the Scale
corresponding to the lateral deviation value.
Course Deviation Indicator
Course Deviation Scale
The ARC CDI Compass Mode’s CDI and Scale are located at the bottom of the lower
display. The indicator is a green diamond, and the Scale is a set of four hollow, white
dots with a white index mark at the center (Figure 4-59).
When the lateral deviation exceeds the maximum displayable range of 2.5 dots, the
Deviation Indicator bar or diamond, as applicable, becomes hollow and darker (Figure
4-62).

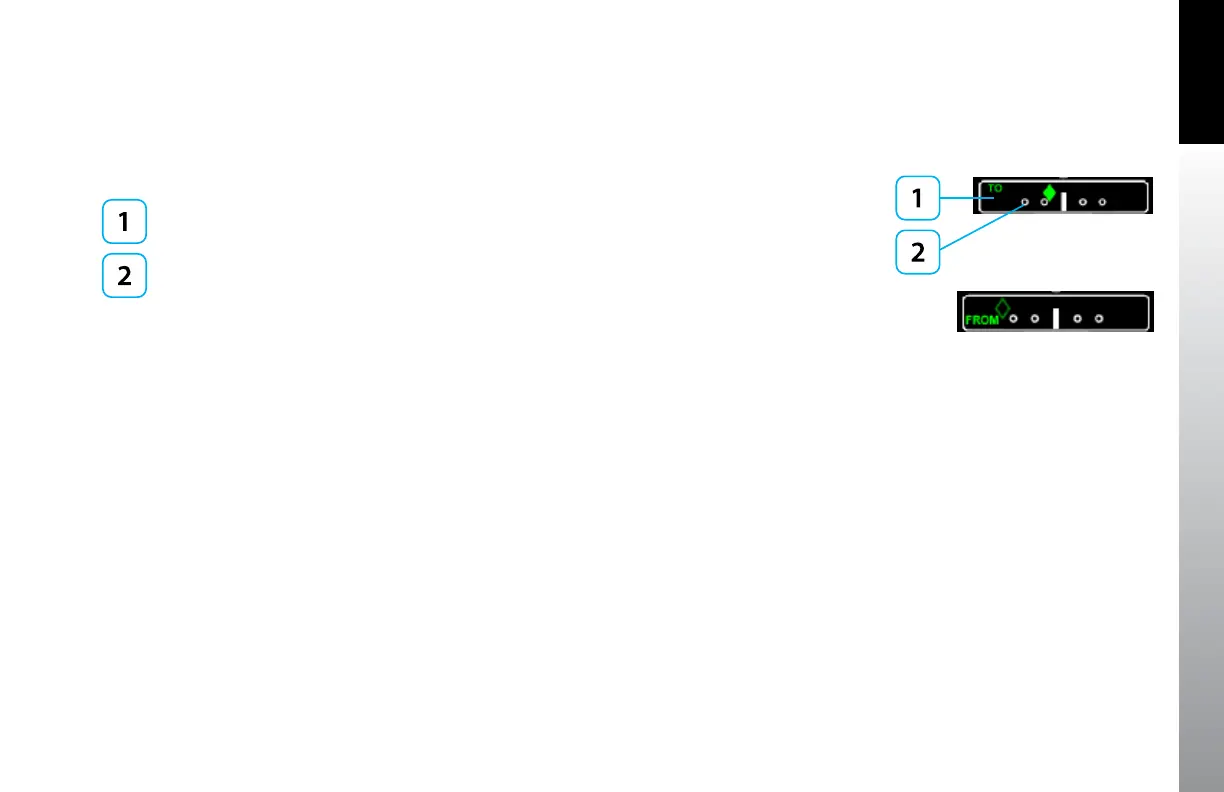

Figure 4-59
Course Deviation Indicator, DI Compass
Mode
Figure 4-62
Deviation Exceeded, CDI
