CHAPTER 1 WELCOME
EFD1000 VFR PFD Pilot’s Guide
Page 1-6
091-00028-001 ( ) EFD1000 VFR PFD Pilot’s Guide
Page 1-7
091-00028-001 ( )

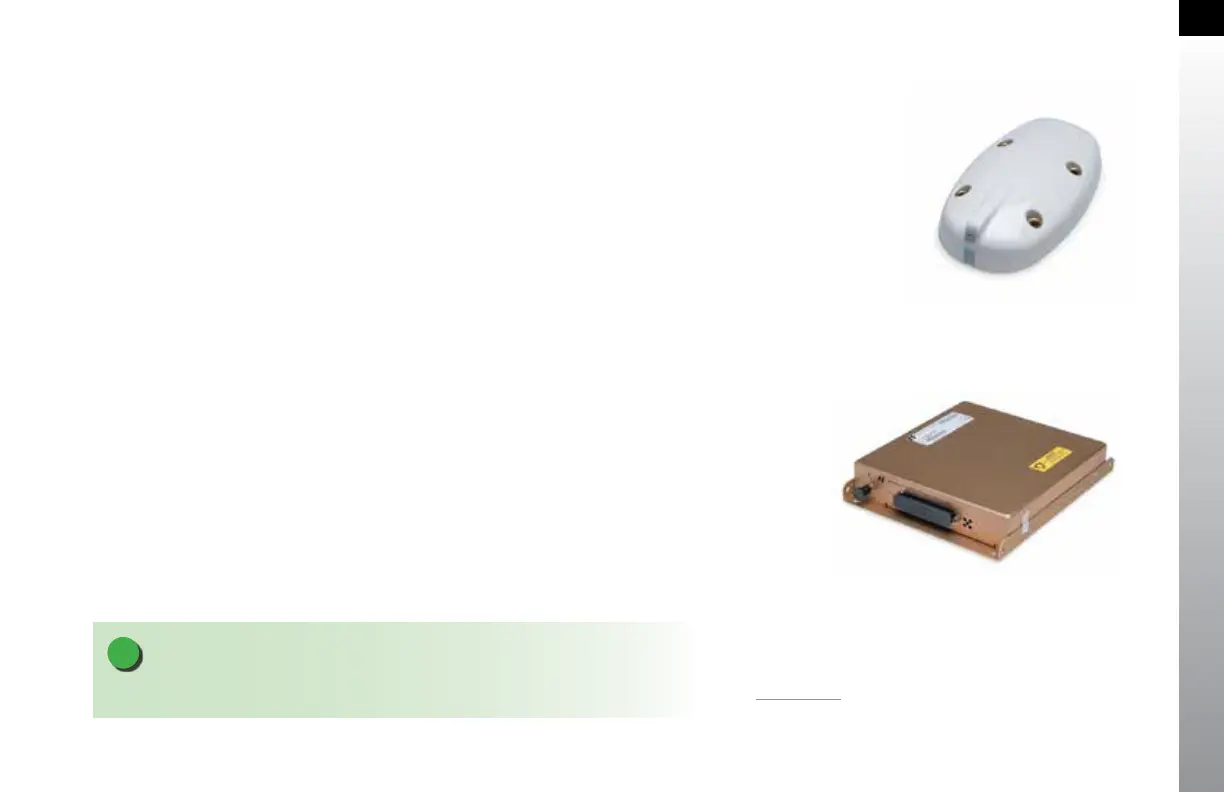

1.1.4. Remote Sensor Module (RSM)
The Remote Sensor Module (RSM) (Figure 1-9), is an integral part of the EFD1000
system and works together with the display unit sensors as part of the AHRS and ADC.
The RSM looks and mounts like a GPS antenna and is mounted on the exterior of the
fuselage, typically aft of the cabin.
The RSM contains the following sub-systems:
• 3D magnetic ux (heading) sensors
• Outside Air Temperature (OAT) sensor
• Emergency backup GPS engine and antenna
The RSM communicates with the PFD via a digital cable connection.
1.1.5. Evolution Weather Receiver (EWR50)
1
The optional Evolution Weather Receiver, EWR50 (Figure 1-10) converts the XM
WX Satellite Weather data into a digital format displayed on the EFD1000 VFR PFD.
The EWR50 provides the ability to receive XM WX Satellite Weather data with a paid
subscription to XM WX Satellite Weather service. The EWR50 consists of a receiver and
antenna.
Figure 1-10
Evolution Weather Receiver (EWR50) - Optional
NOTE
A single EWR50 Receiver will supply data to all EFD units installed on the aircraft.
Figure 1-9
Remote Sensor Module (RSM)
1. VFR PFD option
