Aspen Avionics Evolution EFD1000 VFR PFD - Course Pointer

CHAPTER 4 REFERENCE GUIDE
EFD1000 VFR PFD Pilot’s Guide
Page 4-27
091-00028-001 ( )
4.4.2. Course Pointer
For all Compass Modes, the arrowhead of the Course Pointer aligns with the
corresponding value on the compass scale regardless of the aircraft heading. The ARC
CDI Course Pointer is described in Table 4-2.
COMPASS DESCRIPTION
ARC CDI
The Course Pointer is shown as a stub arrow or tail whenever the CRS value
or its reciprocal falls within the displayable range of the compass scale arc
(Figure 4-50 and 4-51).
Table 4-2
ARC Compass Mode Course Pointer Display

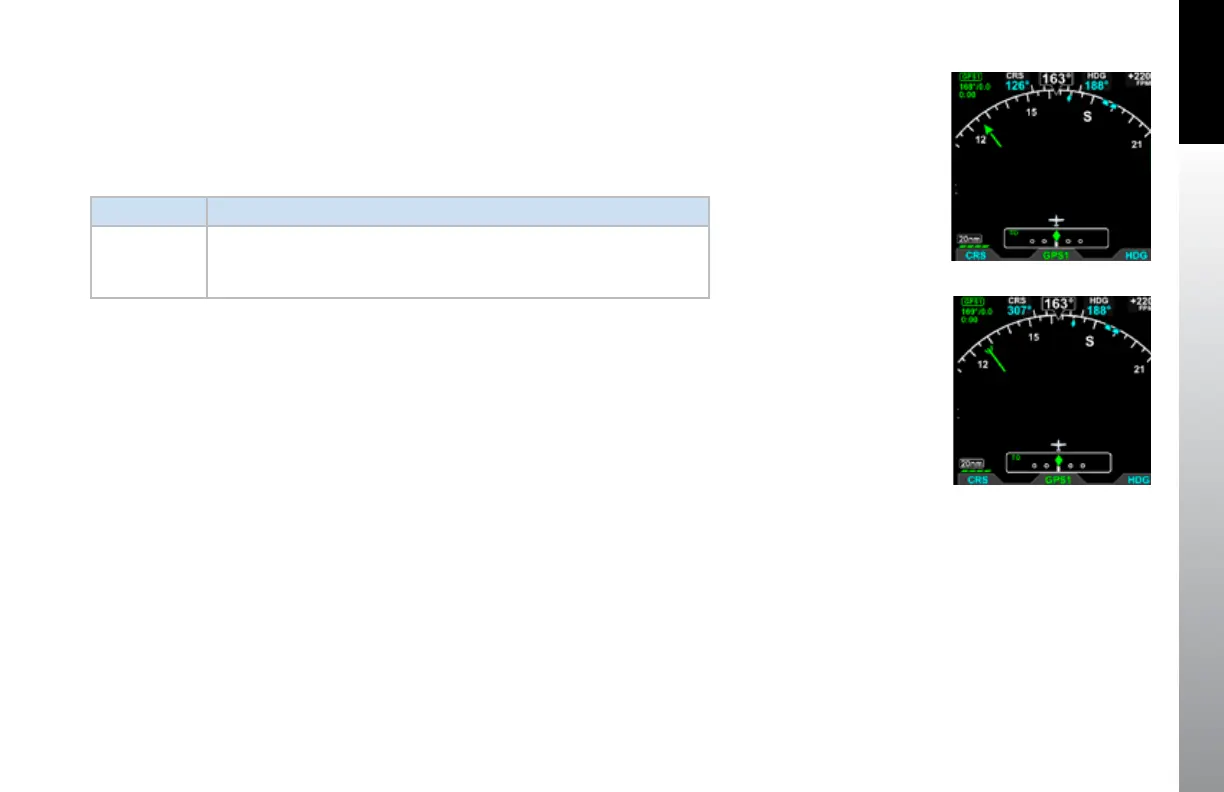

Figure 4-50
Stub Course Arrowhead,
ARC CDI Compass Mode
Figure 4-51
Stub Course Tail,
ARC CDI Compass Mode
