CHAPTER 4 REFERENCE GUIDE
EFD1000 VFR PFD Pilot’s Guide
Page 4-26
091-00028-001 ( )
Select Compass Type
1. Press the 360/ARC Hot Key (Figure 4-46) to alternately select either the 360°
or ARC Compass Mode.
The Navigation Display changes and the Hot Key label reects the currently selected
Compass Mode (Figures 4-47 and 4-48).

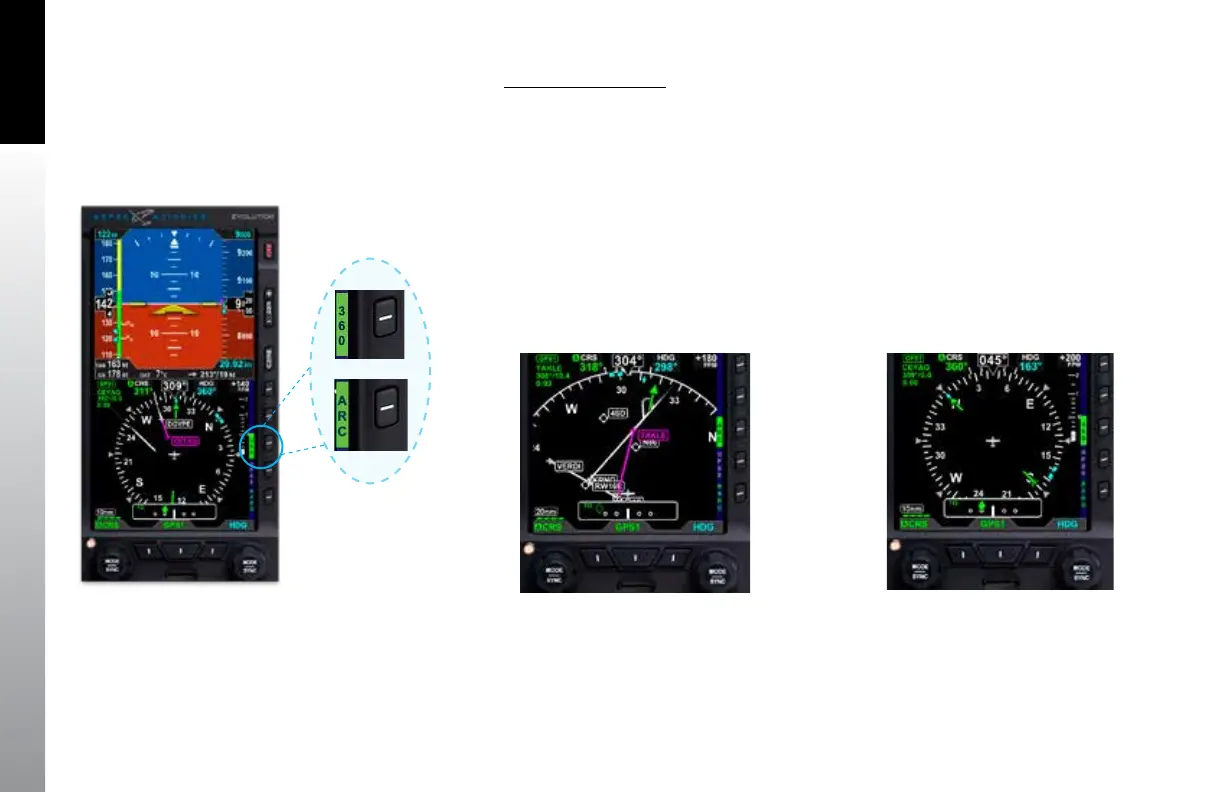

Figure 4-46
360/ARC Hot Key
Figure 4-47
ARC CDI Compass Mode
Figure 4-48
360˚ Compass Mode
