CHAPTER 4 REFERENCE GUIDE
EFD1000 VFR PFD Pilot’s Guide
Page 4-23
091-00028-001 ( )
4.4. Navigation Display
The Navigation Display of the PFD, combines a Direction Indicator with a Course
Deviation Indicator (CDI) (Figure 4-39).
The Direction Indicator comprises a compass, numerical direction indication, heading
bug, Ground Track Marker (when GPS ground track information is available), rate of turn
indicator, and aircraft ownship symbol. The CDI is comprises a selected course pointer,
Deviation Scale and indicator, TO/FROM indicators, and selected navigation source label
and information block.

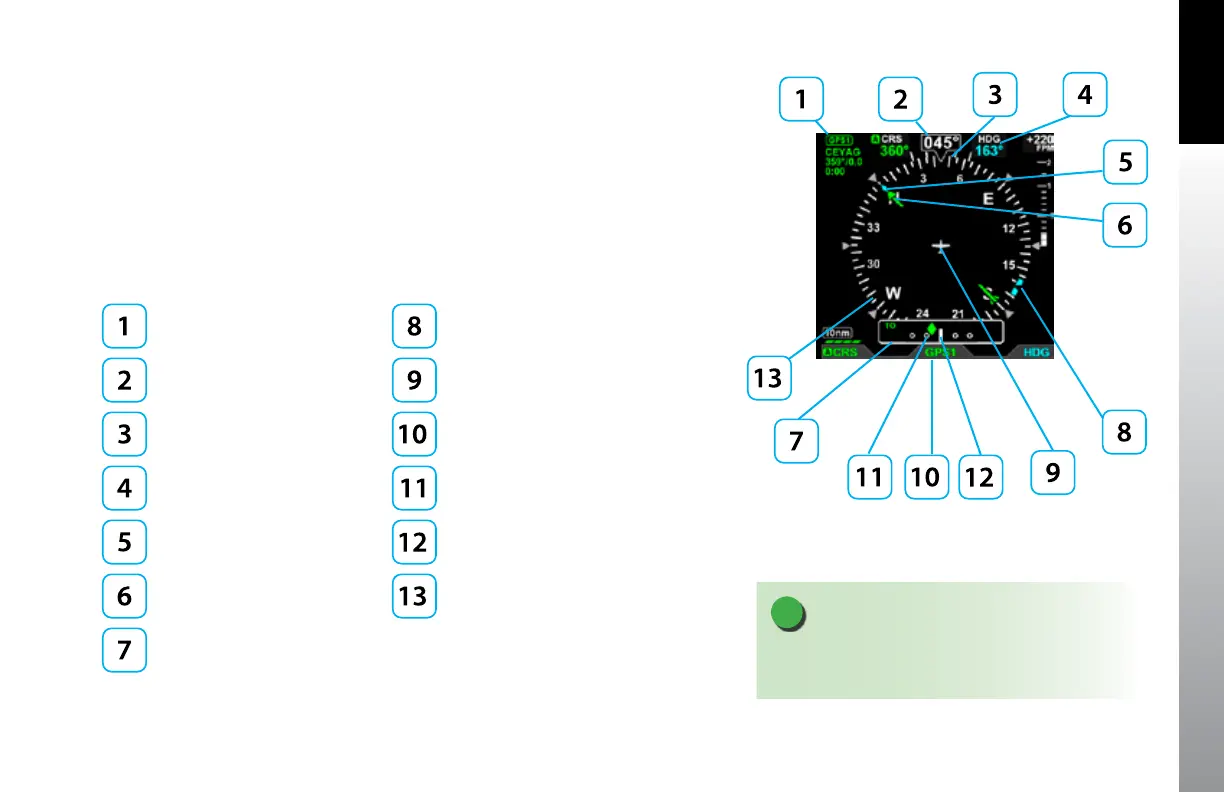

CDI Source Info Block Heading Bug
Magnetic Heading Aircraft Ownship Symbol
Rate of Turn Indicator Selected CDI Navigation Source
Selected Heading Field Course Deviation Indicator
Ground Track Marker Course Deviation Scale
Course Pointer Compass Scale
TO/FROM/LOC Indicator
Figure 4-39
Navigation Display
NOTE
The size, shape and location of the Course Pointer,
depend on the Compass Mode selected..
