4.4.3. TO/FROM Indicator
Each of the Compass Modes has a TO/FROM indicator. The TO/FROM indicator shows
whether the aircraft is heading toward a waypoint or radio navaid, or from a waypoint
or radio navaid. For each Compass Mode, the TO/FROM indication is slightly dierent, as
described in Table 4-3.
COMPASS DESCRIPTION
360 CDI /
ARC CDI
The TO indication is shown as TO on the left side of the Deviation Scale
(Figure 4-56). The FROM indication is shown as FROM on the left of the
Deviation Scale (Figure 4-57). The LOC indication is shown on the left of the
Deviation Scale (Figure 4-58)
Table 4-3
TO/FROM Indicator Description

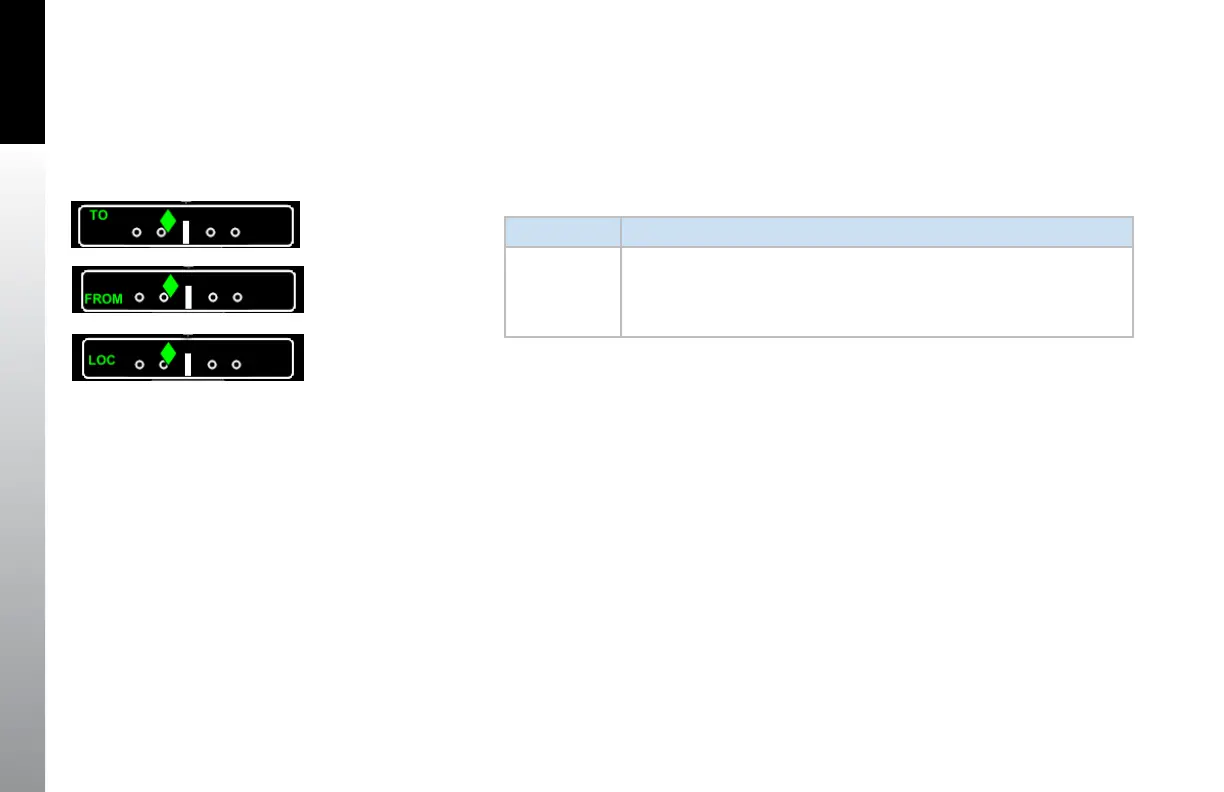

Figure 4-56
CDI TO Indication
Figure 4-57
CDI FROM Indication
Figure 4-58
LOC Indication
