CHAPTER 2 CONTROLS AND DISPLAY
EFD1000 VFR PFD Pilot’s Guide
Page 2-29
091-00028-001 ( )
NAVIGATION DISPLAY
44 Navigation Display 59
45 Ownship Symbol 60
46 Course Pointer 61
47 62
48 Rate of Turn Indicator 63
49 Ground Track Marker 64 Select CDI Navigation Source
50 Numerical Direction Indicator 65 Selected CDI Navigation Source
Information Block
51 Selected Course (CRS) Field 66 Left Knob State
52 Selected Heading (HDG) Field 67 Right Knob State
53 Heading Bug 68 Hot Ket Legend
54 69 Navigation Display Range
55 70 Navigation Display Declutter Level
56 Vertical Speed Numerical Value 71 CDI TO/FROM/LOC Indicator
57 Vertical Speed Indicator Tape 72 CDI Lateral deviation indicator
58 73
Table 2-8
Navigation Display Components
66
59
70
69
65
51 50
44
53
49
46
48
45
52 56
57
68
64 67
71 72

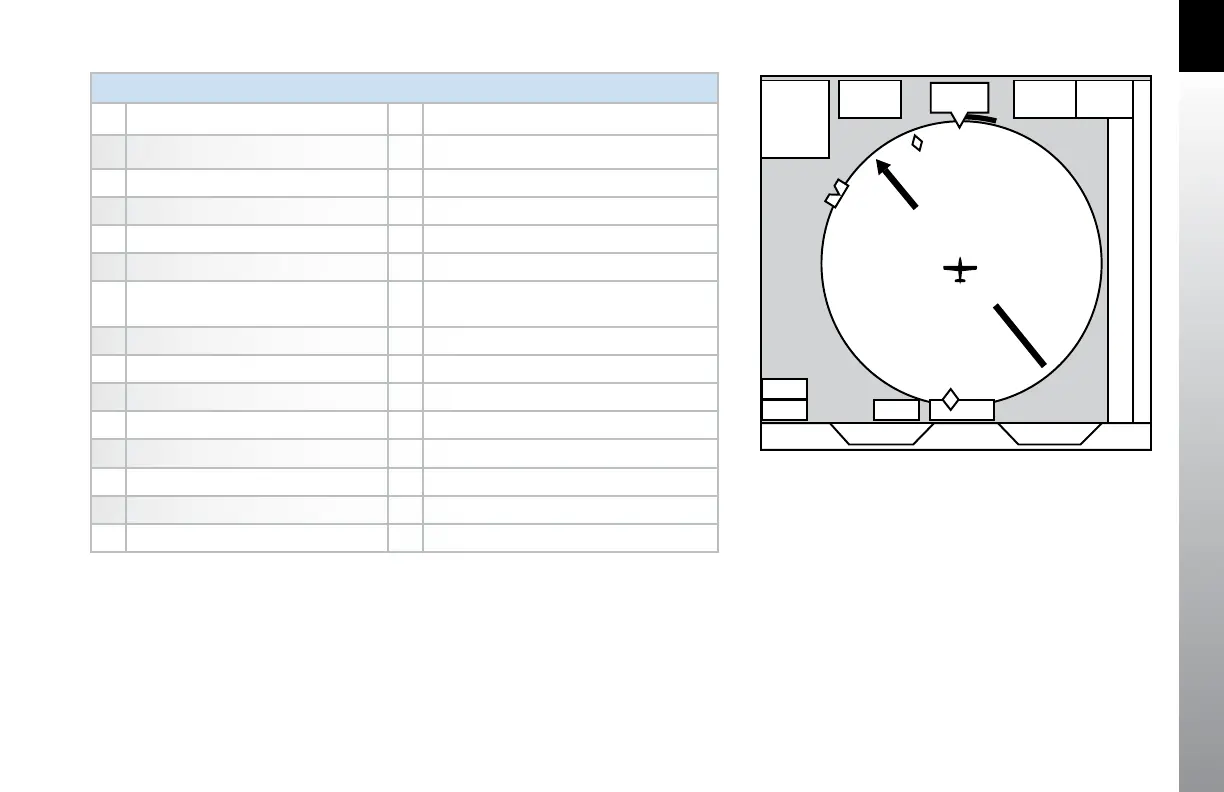

Figure 2-35
Navigation Display Components
