CHAPTER 2 CONTROLS AND DISPLAY
EFD1000 VFR PFD Pilot’s Guide
Page 2-35
091-00028-001 ( )
The map display range is controlled by the RNG Button (Figure 2-2, Ref. 2), enabling
the pilot to zoom in or out on the map. Automatic declutter logic changes the map
features displayed depending on the selected maprange.

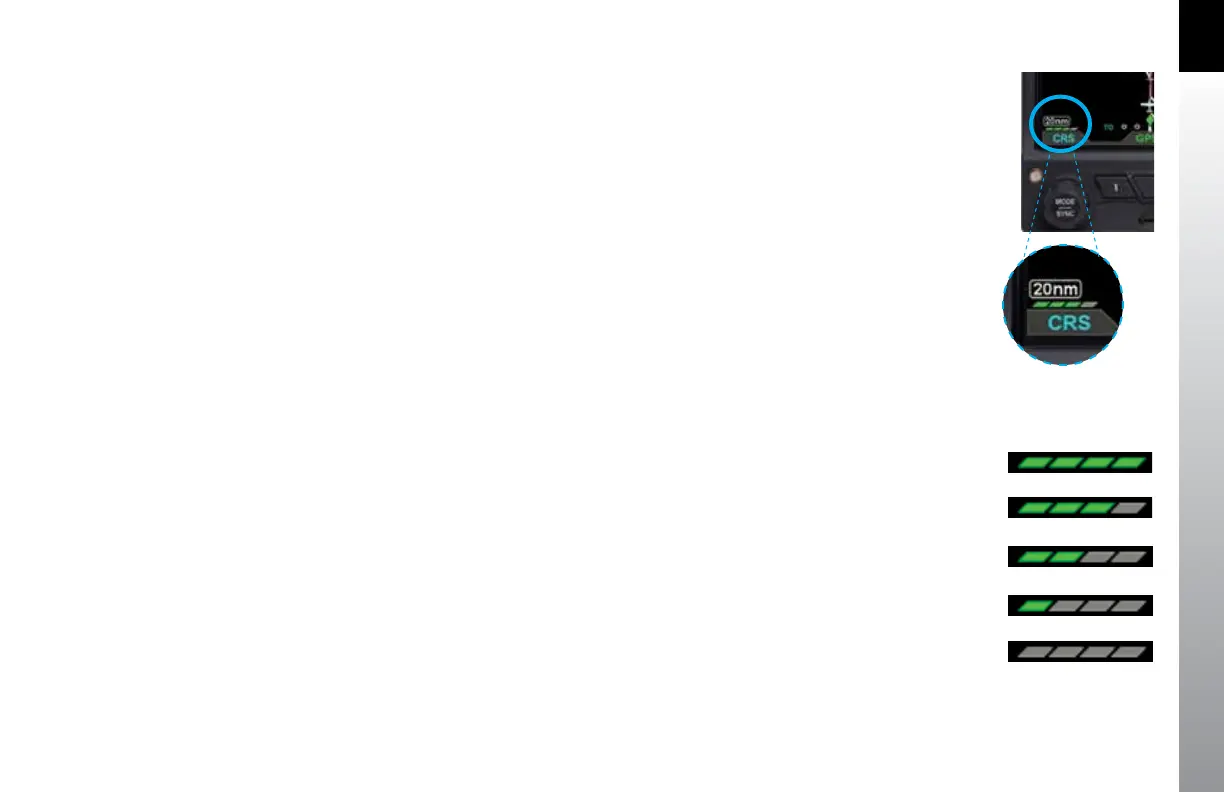

The current range and declutter level map settings are shown in the lower left-hand
corner of the navigation display (Figure 2-49). The map range is displayed in nautical
miles, measuring the distance from the ownship symbol to the outside edge of the
compass rose. The map declutter level is indicated by one to four green parallelograms
below the range value. More parallelograms indicate that more basemap features are
displayed.
Figure 2-50
Declutter Level 4
Figure 2-51
Declutter Level 3
Figure 2-52
Declutter Level 2
Figure 2-53
Declutter Level 1
Figure 2-54
Declutter Level 0 (O)
Figure 2-49
Map in ARC Compass Mode,
20nm Range at Declutter Level 3
