Change the Map Range
• Press the RNG (Range) Buttons (Figure 3-14) UP (+) to increase the range,
or DOWN (-) to decrease the range, until the desired range is shown
(Figures 3-15 and 3-16).

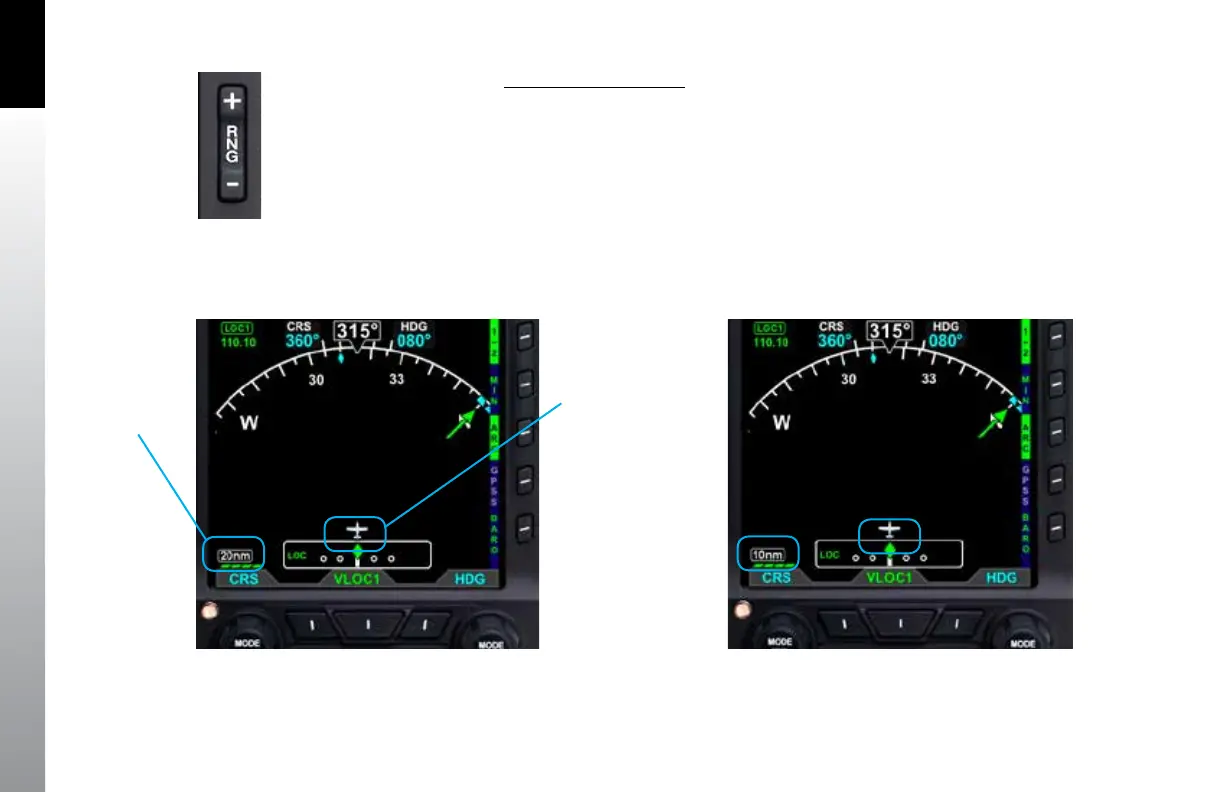

Figure 3-15
Current Range 20nm from Ownship to Edge of Compass Rose
Current Range
Ownship
Symbol
Figure 3-14
Range Button
Figure 3-16
Current Range 10nm from Ownship to Edge of Compass Rose
