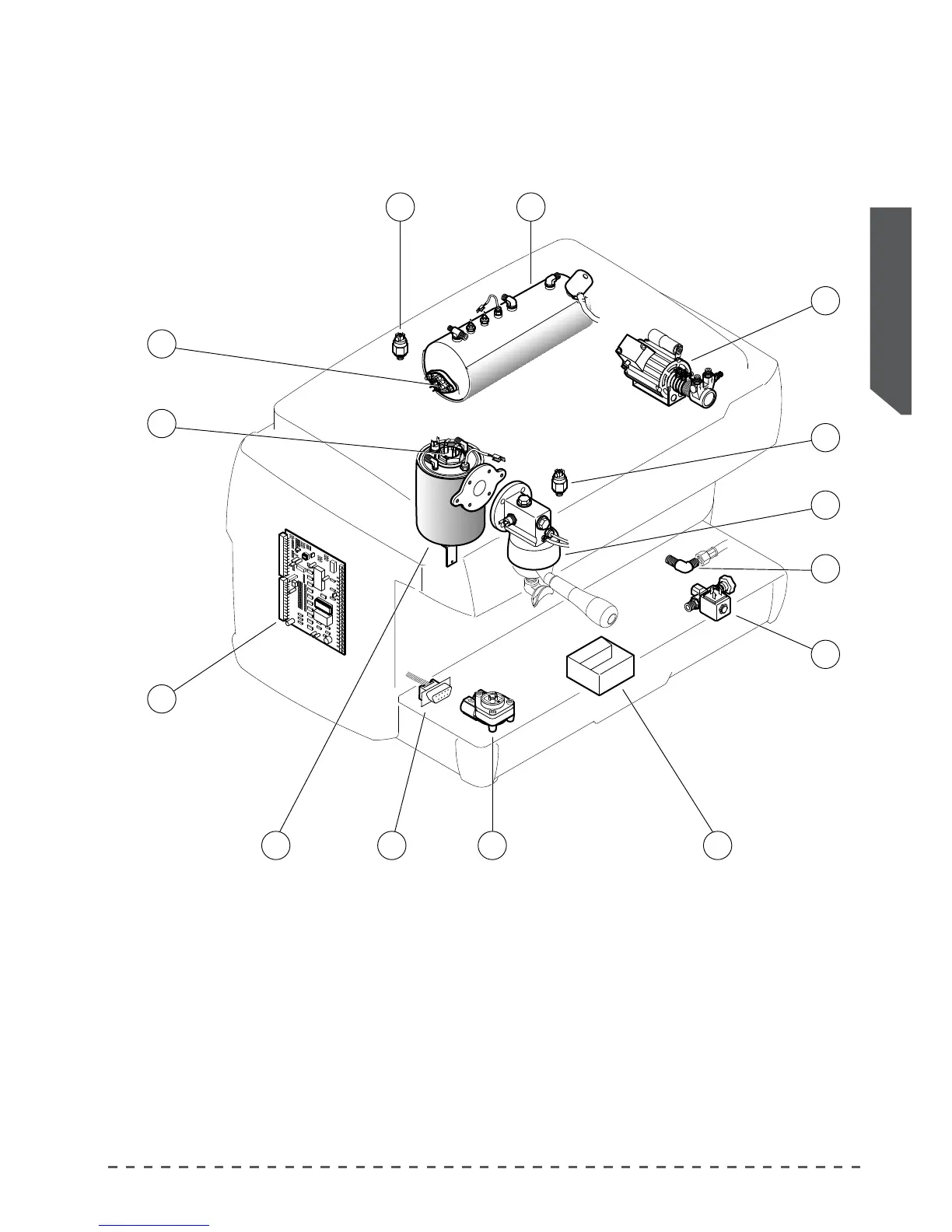

1.2 Internal components
1. Service boiler safety pressure switch.
2. Services boiler.
3. Internal motor pump (if included).
4. Coee boiler pressure switch.
5. Dispensing group.
6. Water inlet connection.
7. Hot water mixer.
8. Drain pad.
9. Volumetric dosing device.
10. RS232 socket.
11. Coee water container.
12. Electronic control unit.
13. Coee water heating element.
14. Services boiler heating element.
2
14
13
5
4
3
8910
12
11
6
7
1
