Astoria Plus4YouTS - Connectors Electric Diagram

71
Technical manual
ENGLISH

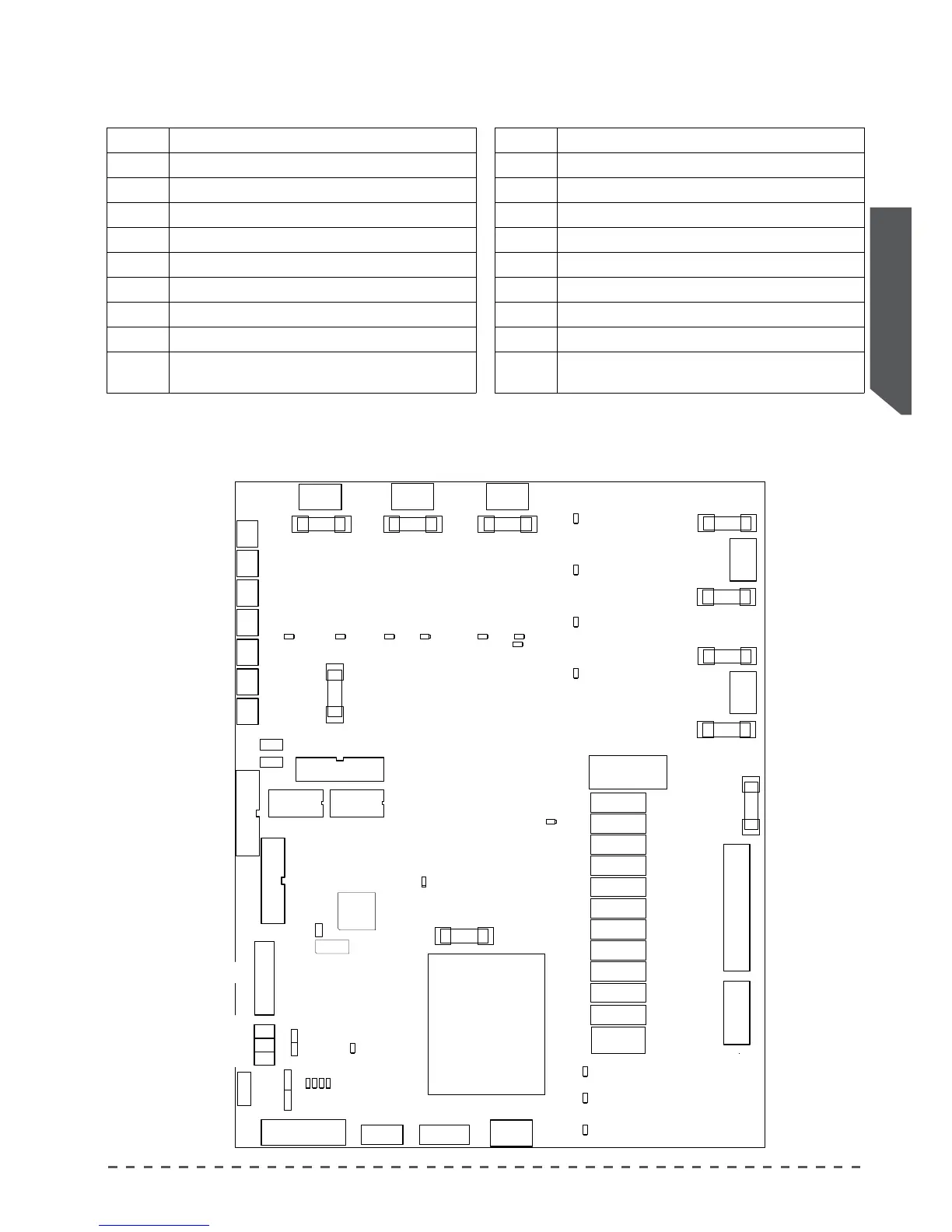

21.3 Connectors electric diagram
CN26
DL4
DL5
DL6
DL8
DL9DL10
F10
FS2
FS1
DL11DL12
DL17
+24V
DL7
CN38
CN25
F5
F3
F4
F2
CN1
F6F8F9
CN2CN3
CN37
CN36
CN35
CN34
CN33
CN32
CN31
F1
CN24
CN23
DL3
CN22CN16CN4CN5
DL14 DL16
PRG
DL13
+9V
+5V
+12V
RL1
RL2
RL3
RL4
RL5
RL6
RL7
RL8
RL9
RL10
RL11
RL12
RL13
DL15
CN15
JP1
JP2
JP3
JP4
JP5
IC13
SW1SW2
TRF1
CN14
Display
CN30
CN13
CN17
CN18
CN19
DL2
DL1
F7
CN1 Connection of groups 1 e 3 heating elements
CN2 Connection of groups 2 e 4 heating elements
CN3 Connection of services boiler's heating elements
CN4 Connection of coee boiler pressure switches
CN5 Connection of volumetric dosers and services boiler levels
CN6 - 12 Not used
CN13 Connection of RS232 serial socket
CN14 Connection of display/CPU
CN15 Connection of NTC temperature sensors
CN16
Mains pressure, humidity sensor and boiler press. tranducer
supply
CN17 Connection of NTC services boiler
CN18 Connection of NTC autosteamer
CN19 Connection of NTC cup heater
CN20 - 21 Not used
CN22 Wiring of circuit board
CN23 Connection of 230V AC outputs
CN24 Connection of 230V AC outputs
CN25
Connection of heating elements for hot water containers 1 and 3
CN26 Connection of heating elements for hot water containers 2 and 4
CN27 - 38 Not used
