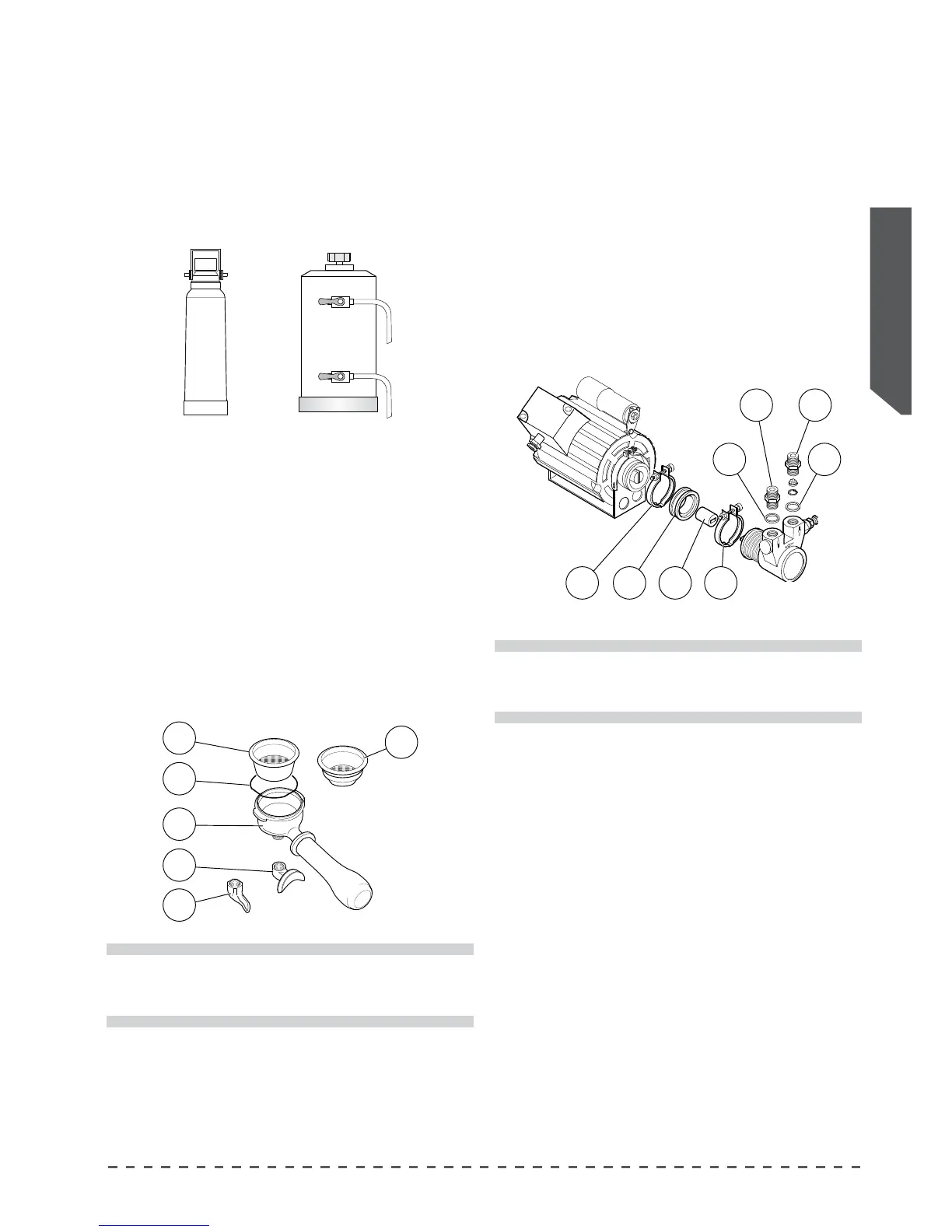

2.3 Equipment preparation
Water purication lter or Softener
The water purification filter or resin softener are
available on request.
For more information see the chapters "Water
purication lter" and "Softeners".
Motor pump
For machines with an external motor, it is necessary
to prepare the pump and motor.
Fit the 3/8 gas connection with lter (2) at the pump
inlet (arrow ) and the plain 3/8 connection (1) at the
pump outlet (arrow ).
Use the special washers (3) provided for sealing
purposes.
To correctly couple the pump and motor, use the
appropriate joint (4) and the spacer ring (5), lock
everything with the two clamps (6).
The pump and motor joint has to be installed also on
the machines with an internal motor pump.
Filter holder
In the housing of the lter holder(1), place the spring
to stop the lter (2). Take the two cups (3) or one-cup
(4) lter and press it rmly into the lter holder.
Spouts
Complete the lter holder by installing the two-cup
(6) or one-cup (5) spout.
!
Install the connection with the inlet lter
(2) of the pump (arrow ).
i
Install the spout with related lter: 1 cup spout
on 1 cup lter lter holder, etc.
6
3
2
3
1
456
5
4
1
2
3
6
