Astoria Plus4YouTS - Scheduled Assistance

52
Technical manual
Reset counters.
Are you sure ?
Yes No
Service C
Service Cycles Performed Cyc.
Code Alarm description
9 Water heat sensor open on group 1
10 Water heat sensor open on group 2
11 Water heat sensor open on group 3
12 Water heat sensor open on group 4
13 Check water heat sensor on group 1
14 Check water heat sensor on group 2
15 Check water heat sensor on group 3
16 Check water heat sensor on group 4
17 Steam boiler sensor open
18 Steam boiler heat circuit
19 Cup heater: sensor disconnected
20 Cup heater: sensor short circuit or excessive temperature
21 Autosteamer: sensor disconnected
22 Cup heater: sensor short circuit or excessive temperature
23 Steam boiler heating timeout
24 Heating group timeout on group 1 - Machine start
25 Heating group timeout on group 2 - Machine start
26 Heating group timeout on group 3 - Machine start
27 Heating group timeout on group 4 - Machine start
28 Heating group out of service on group 1 - Machine running
29 Heating group out of service on group 2 - Machine running
30 Heating group out of service on group 3 - Machine running
31 Heating group out of service on group 4 - Machine running
32 Coee water heater timeout on group 1 - Machine start
33 Coee water heater timeout on group 2 - Machine start
34 Coee water heater timeout on group 3 - Machine start
35 Coee water heater timeout on group 4 - Machine start
36 Coee water heating out of service on group 1 - Machine running
37 Coee water heating out of service on group 2 - Machine running
38 Coee water heating out of service on group 3 - Machine running
39 Coee water heating out of service on group 4 - Machine running
40 Filling timeout. First coee boiler/steam lling 255"
41
Filling timeout. Top o steam boiler level 90"(180"for coee boiler)
42 Safety level Steam boiler
43 Coee water pressure group 1. Coee water pressure timeout at startup.
44 Coee water pressure group 2. Coee water pressure timeout at startup.
45 Coee water pressure group 3. Coee water pressure timeout at startup.
46 Coee water pressure group 4. Coee water pressure timeout at startup.
47
Coee water pressure group 1. Coee water pressure timeout at operating levels.
48 Coee water pressure group 2. Coee water pressure timeout at operating levels.
49 Coee water pressure group 3. Coee water pressure timeout at operating levels.
50 Coee water pressure group 4. Coee water pressure timeout at operating levels.
51 Volumetric dosing device 1
52 Volumetric dosing device 2
53 Volumetric dosing device 3
54 Volumetric dosing device 4
55 Water softener regeneration

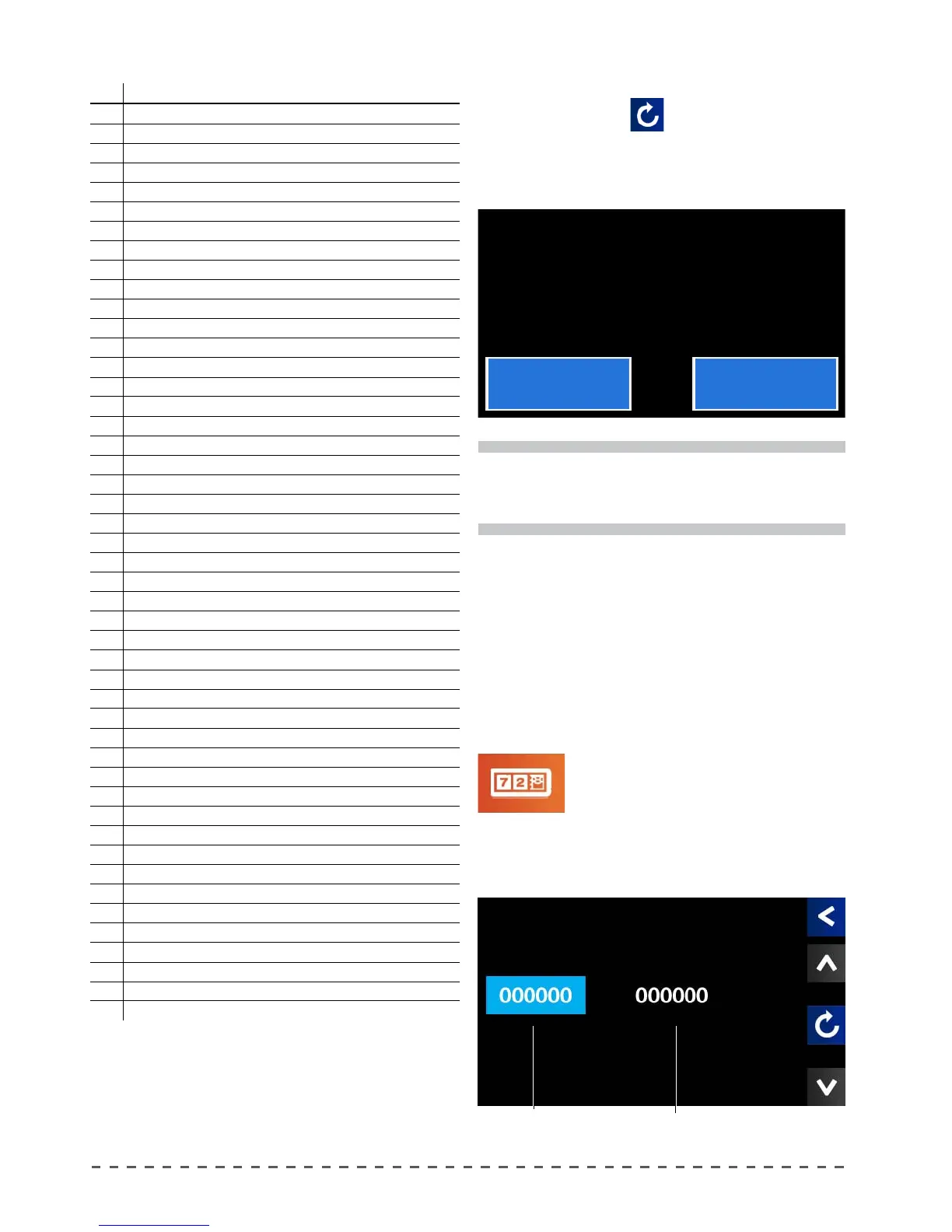

15.2 Scheduled assistance
This function is related to the request for machine
assistance and provides notication of when to proceed
with ordinary scheduled maintenance.
The request for assistance appears when the number
of coee, tea, boiler lling cycles, or the number of days
passed since installation of the machine, have reached a
value equal to the cycle programmed by the technician.
• Press "Counters" (see previous chapter); after a short
time the main screen appears.
• Scroll through the screens with the ar-
rows () or (), until you see the screen
below:
To reset the video alerts, proceed as follows:
• press the reset key (
);
• in the next screen answer "Yes";
• all alerts will be reset.
i
The alarms display and reset functions are enabled
ONLY for the technician.
Counters
Required assis-
tance threshold.
Number of cycles per-
formed since last reset.
