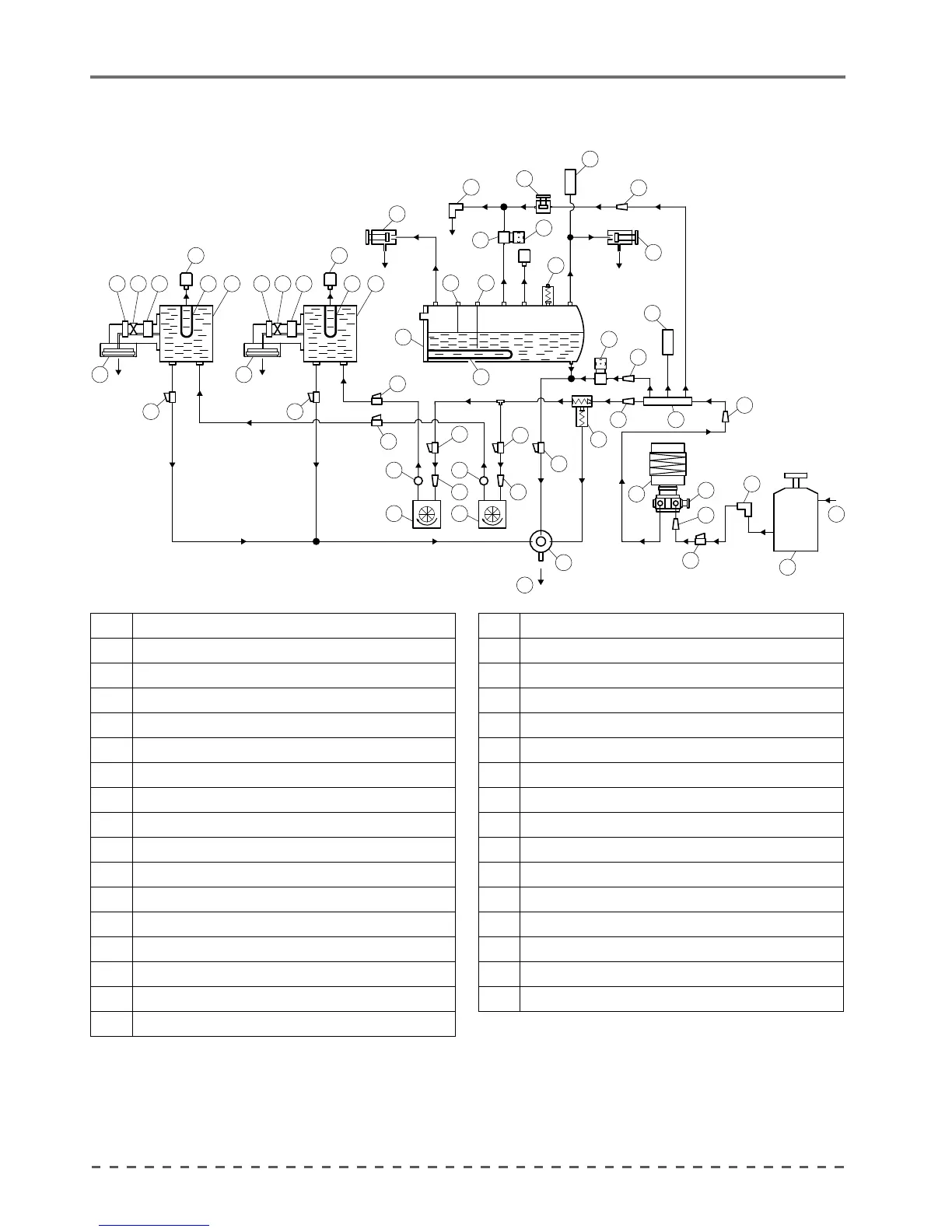

22 Hydraulic diagram
31
5
20
1
2
1313
111715 161715 16 121112
3
6 7
20
29
20
28
18
18
18
2121
1919
9
20
20 25
18
26
18
2020
22
18
10
27
18
14
18
14
E
S
30
24
8
4
23
2
1 TEA release
2 STEAM release
3 TEA MIX adjustment solenoid valve
4 HOT WATER solenoid valve
5 STEAM boiler safety pressure switch
6 BOILER LEVEL probe
7 SAFETY LEVEL probe
8 SAFETY valve
9 STEAM boiler
10 STEAM boiler heating element
11 COFFEE boiler
12 COFFEE water heating element
13 COFFEE water pressure switch
14 DELIVERY group
15 GROUP lter
16 GROUP Gigleur
17 GROUP solenoid valve
18 MANUAL tap
19 COLD Gigleur
20 MAINS lter
21 VOLUMETRIC doser
22 SCNR valve
23 PUMP pressure transducer
24 BOILER FILLING solenoid valve
25 MAINS dispenser
26 DRAIN pad
27 BUILT-IN motor pump
28 MOTOR PUMP pressure adjustment
29 WATER INLET connection
30 Softener
31 BOILER pressure transducer
E Water inlet
S Water discharge
