80
Technical manual
Beverages selection codes table
Description Signal
1 Espresso GR1 011 h
1 Medium GR1 012 h
1 Large GR1 013 h
2 Espressos GR1 014 h
2 Medium GR1 015 h
2 Large GR1 016 h
1 Espresso GR2 021 h
1 Medium GR2 022 h
1 Large GR2 023 h
2 Espressos GR2 024 h
2 Medium GR2 025 h
2 Large GR2 026 h
1 Espresso GR3 031 h
1 Medium GR3 032 h
1 Large GR3 033 h
2 Espressos GR3 034 h
2 Medium GR3 035 h
2 Large GR3 036 h
1 Espresso GR4 041 h
1 Medium GR4 042 h
1 Large GR4 043 h
2 Espressos GR4 044 h
2 Medium GR4 045 h
2 Large GR4 046 h
Tea 1 051 h
Tea 2 052 h
CN13 Serial transmission connector.
CR Cash register.
CE Control unit cod.18090167.
SW Control unit micro-switches
* CC Supplied serial connection cable cod. 22554012.
* CS Serial transmission cable not supplied cod. 22556004.
* Kit Cod.: 83260061R
SW2
CC
CS
CR
CN13
CE
SW2
OFF
ON
910111213141516
CN13
CC
1
4
Gnd
Rxd
Txd
+5Vcc
ON*
* - only for CREDIT - DEBIT conguration
ON

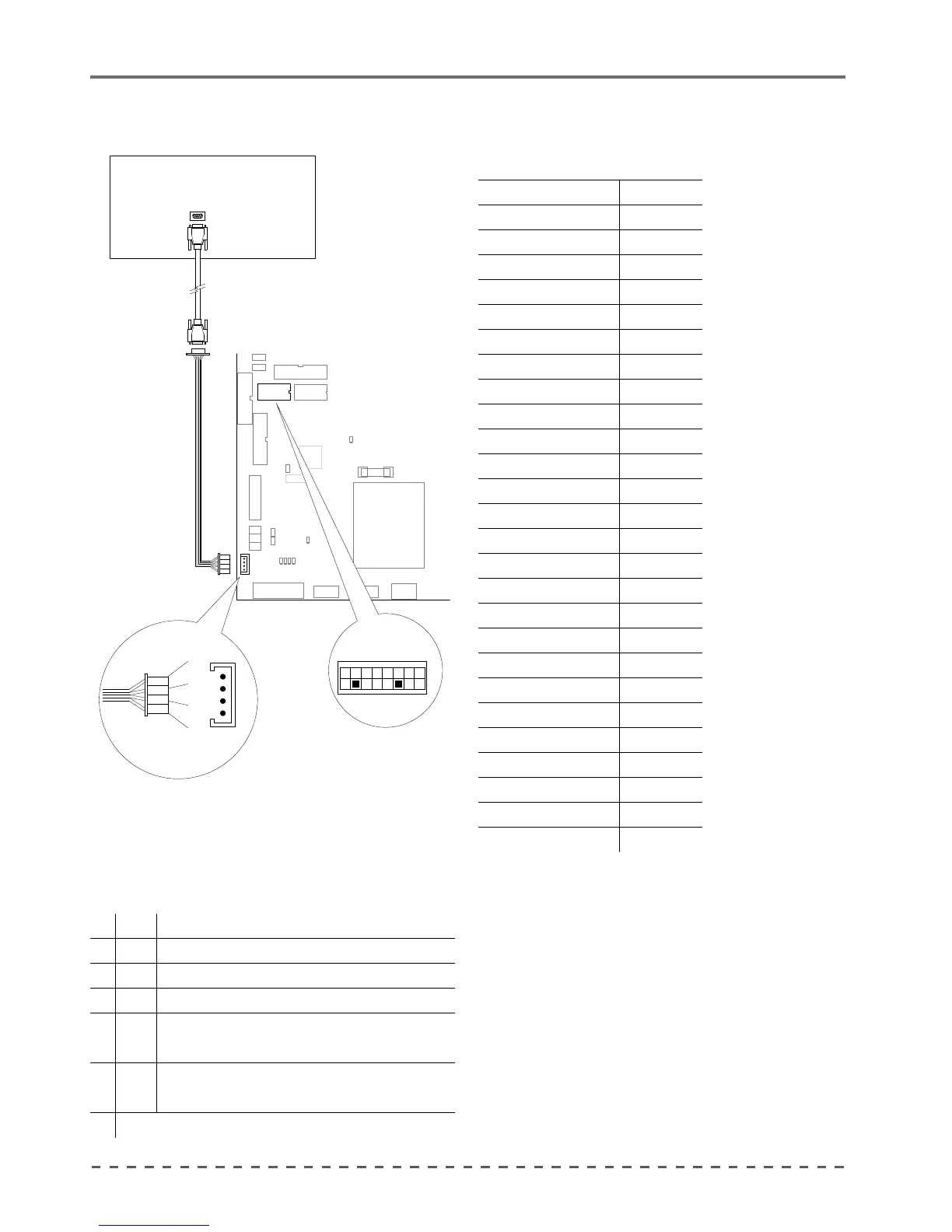

25 Serial connection diagram and beverages table
